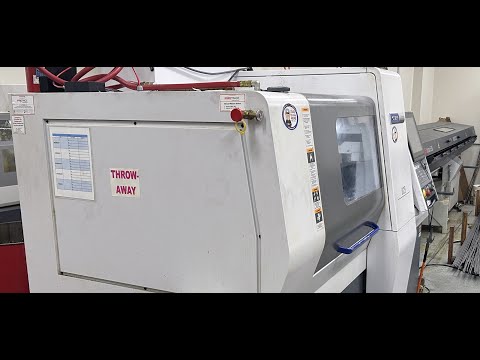

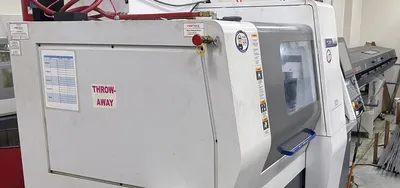

Citizen D25VIII (1M8) CNC Swiss Lathe, New in 2017
Have one to sell?
ConditionUsed
1 available
Citizen D25VIII (1M8) CNC Swiss Lathe, New in 2017 with 32mm Capacity Upgrade
General Specifications:
Machining Diameter: 1"
32mm Upgraded Capacity: 1.25"
Machining Length
w/ Guide Bushing: 9.8"
w/o Guide Busing: 2.5 D
Spindle Speed: 10,000 RPM
Sub-Spindle Speed: 10,000 RPM
Gang Rotary Tool Speed: 9,000 RPM
Chuck Diameter of Sub-Spindle: 1"
Part Length for Ejection to Chute: 4.7"
Chuck & Bushing
Main & Sub-Spindle Collet: TF30
Guide Bushing: CD25
Tool Size & Positions
Positions: 32
Gang: 5/8" SQ, 3/4" SQ (Cut Off)
Sleeve: 1" Diameter, 3/4" Diameter
Rapid Feedrates
X1 / X2 / Z2: 944 IPM
Others: 1259 IPM
Motors
Spindle Drive: 7.3 HP
Rotary Tool on Gang Post: 2.9 HP
Back Spindle Drive: 4.9 HP
Back Tool Post Rotary Drive: 1.3 HP
Machine Dimensions: 110" x 61" x 70"
Machine Weight: 7,606 lbs

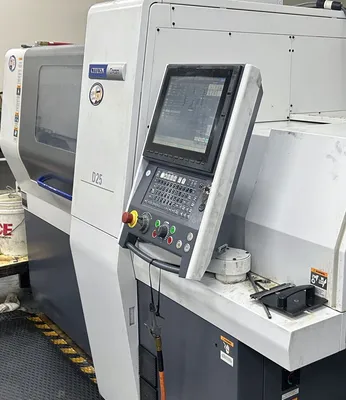

Mitsubishi 850W CNC Control

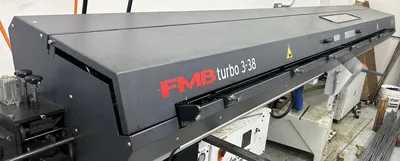

FMB Turbo 3-38 Magazine Barfeed

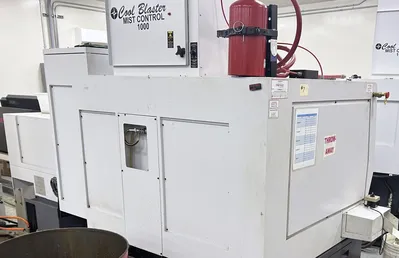

Cool Blaster Mist Control 1000
Cool Blaster High Pressure Coolant System
Helical Interpolation
Synchronized Tapping
Inch/Metric Conversion
Program Storage 160M (64Kb)
User Disk Storage 10Mb
Cut-off Tool Breakage Detection
Firetrace Fire Suppression
Macros
Parts Conveyor
Parts Catcher
