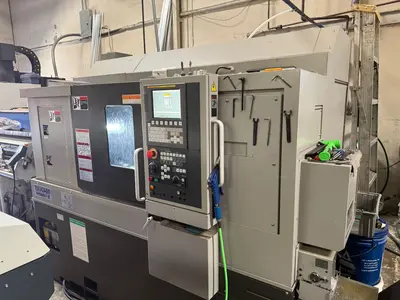

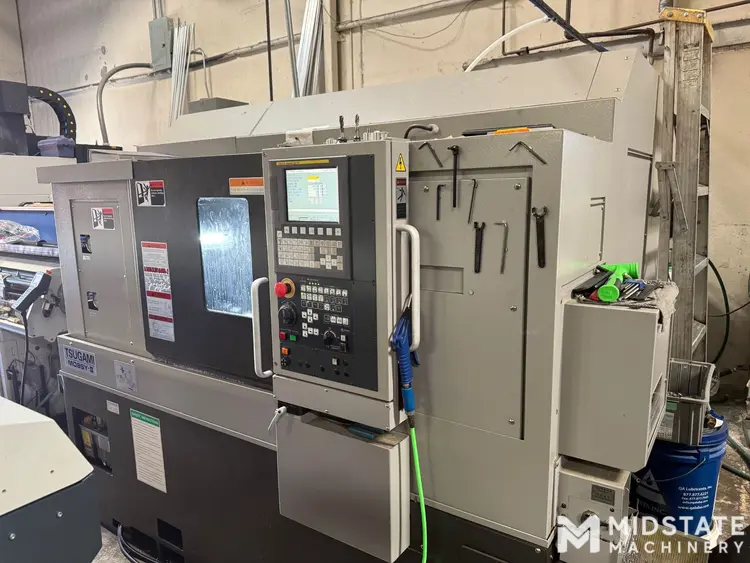

Tsugami M08SY CNC Turning Center, New in 2019

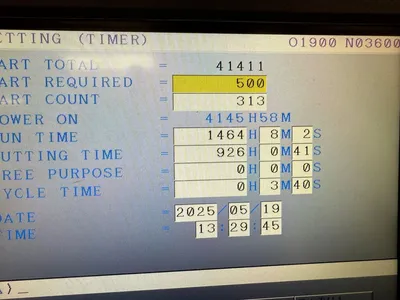

Machine Hours (5/2025)
Power On: 4,145

General Specifications:
Machining Diameter: 2.56"
Machining Length:14.96"
Chuck Size: 8"
Main Spindle Speed: 4,500 RPM
Main Spindle Interface: A2-6
Main Spindle Bore: 2.87"
Number of Tool Stations: 12
OD Tool Shank: 1"
Drill Holder ID Bore: 1.5"
Sub-Spindle Speed: 4,500 RPM
Sub-Spindle Interface: 140 Flat Nose
Sub-Spindle Chuck: 6"

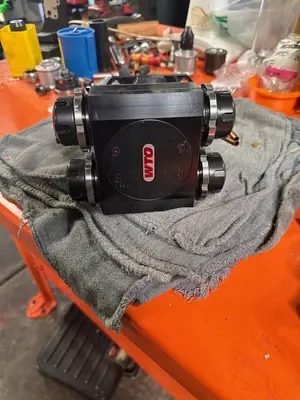

Live Tool Speed: 5,000 RPM
Spindle Motor (Main/Sub): 14.8 HP / 10 HP
Live Tool Motor 3.7Kw
Z/X Axis Motor: 2.4 HP
A/Y Axis Motor: 1.6 / 2.4 HP
X/Z Axis Stroke: 8.7" / 15.75"
A/Y Axis Stroke: 19.92" / +1.97"
Rapid Traverse Rate (X/Z/A/Y): 945 / 1,062 / 1,181 / 472 IPM
Power Requirements: 30 Kva
Coolant Capacity: 42 Gallons

Machine Dimensions: 97.24" x 72.83" x 75.98"
Machine Weight: 13,007 lbs
