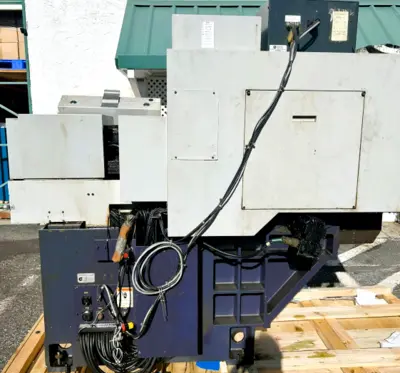

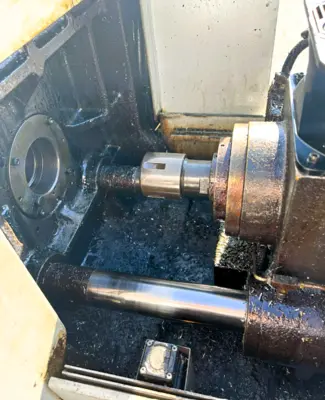

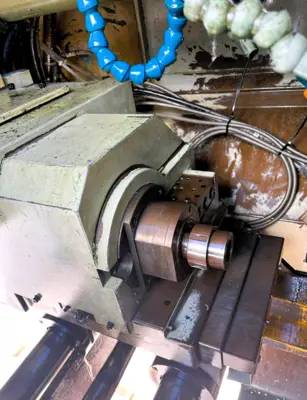

CITIZEN L(5)20VII with LNS Express 226, New in 1998

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
CITIZEN
Model:
L20
Year:
1998
Stock #:
3617
Status:
For Sale

Description

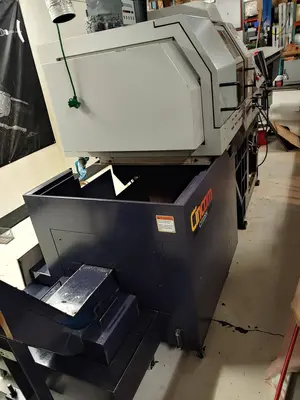

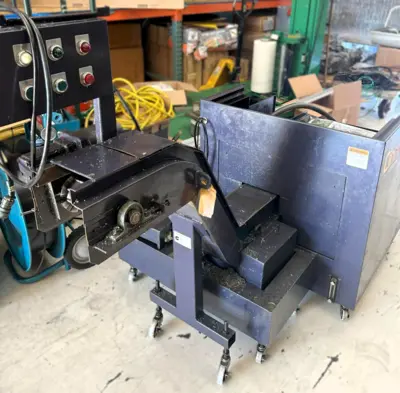

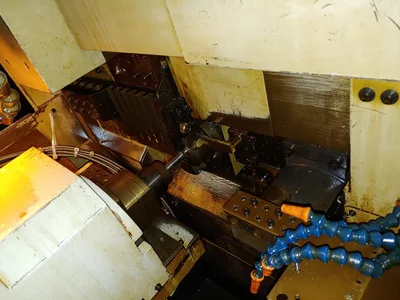

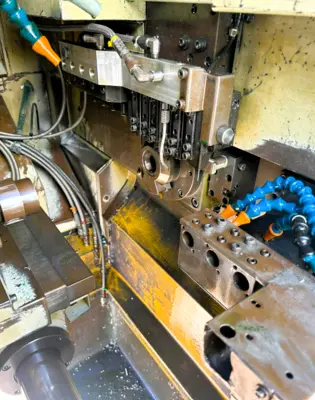

CITIZEN L(5)20VII with LNS Express 226, New in 1998. Chip Conveyor. All Available Tooling.

Capacity0.75 mm0.0295"
Power5.5 W0 hp
RPM10,000 RPM10,000 RPM
# Axis55
Swiss, Chucker or Convertible?SwissSwiss
Main Spindle IndexingFull CFull C
Sub-Spindle Indexing5 Degree5 Degree
Live Back Working ToolsNoNo
B-Axis?NoNo

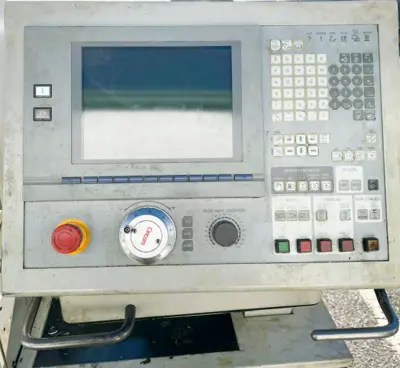

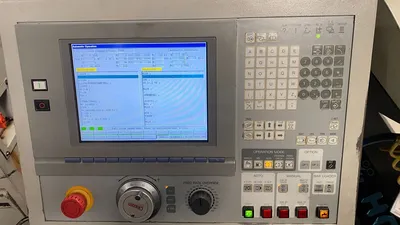

ControlCNC (Cincom)CNC (Cincom)
Dimensions84" x 45" x 65"84" x 45" x 65"
Weight36003600

General Specifications:
Machining Diameter: 3/4"/20mm
Machining Length Per One Chuck: 7.9"/200mm
Drilling Diameter Up to: .394"/10mm
Spindle Speed: 10,000 RPM
Chucking Diameter of Pick-off Spindle: .790"
Pick-off Spindle Speed: 8,000 RPM
Pick-off Spindle Motor: 2 HP
Spindle Index: 1 Deg.
Rotary Spindle Speed: 5,000 RPM
Rotary Tool Motor .5 HP

Number of Tools Mounted:
Turning/Front ID/Back ID/Live Tools 6/3/3/4

Machine Dimensions: 84" x 45" x 65"
Machine Weight: 3,600 Lbs

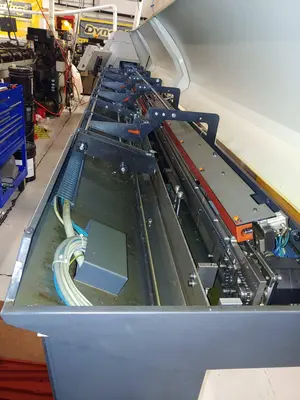

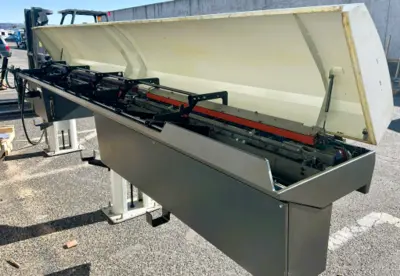

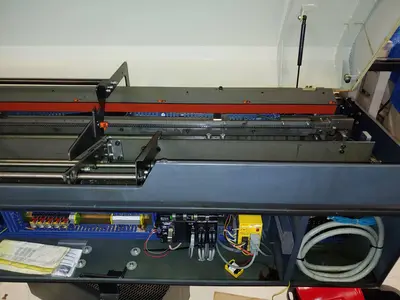

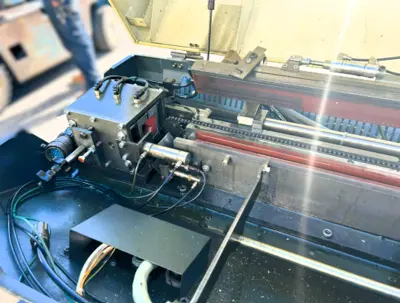

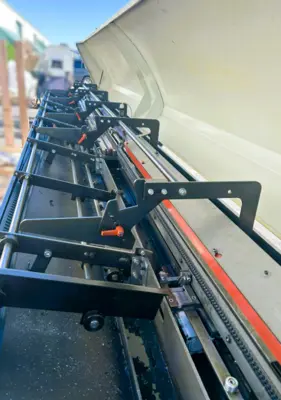

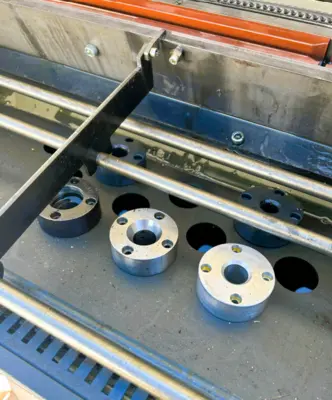

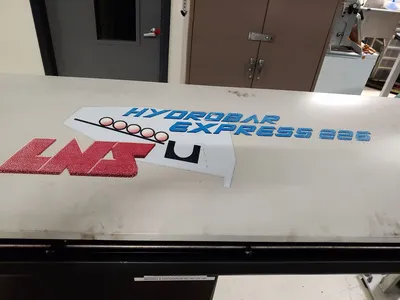

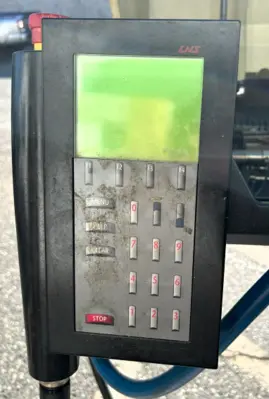

LNS Express 226

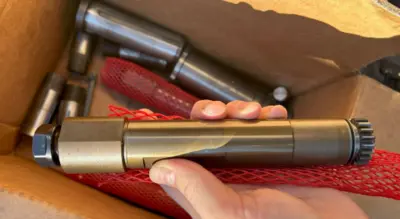

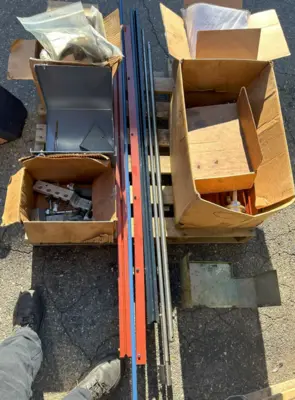

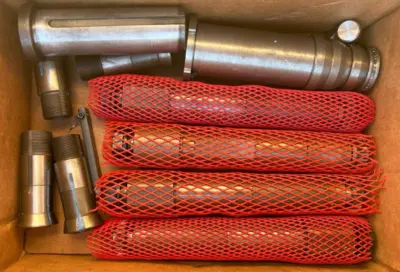

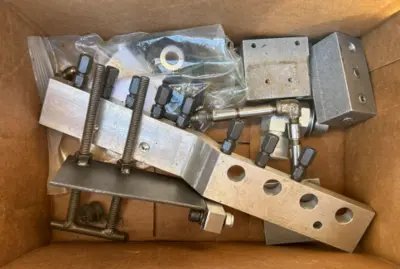

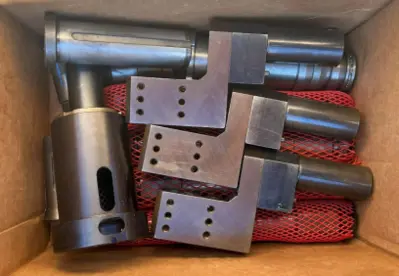

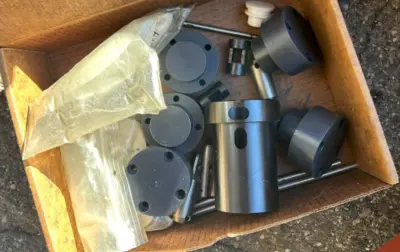

All available Tooling
