MAZAK SLANT TURN NEXUS 550M CNC Turning Center, New in 2011
Have one to sell?
ConditionUsed
1 available
MAZAK SLANT TURN NEXUS 550M CNC Turning Center, New in 2011. 12.5" Spindle Bore, 80" Machining Length, 24" Chuck, 3-Axis Control, and 60 hp Power. Includes Chip Conveyor, 24" Air Chuck, and Multitap Transformer. Available Mid-January 2026 approx.
Swing 40.9"
Machining Length 80"
# Axis 3
Chuck Size 24"
Bar Capacity 12.5"
Power 60 hp
Max RPM 750 RPM
Turning Dia 29"
Tailstock Yes
Live Tooling Yes
Sub Spindle No
Control CNC (MATRIX NEXUS)
SPINDLE BORE: 12.5

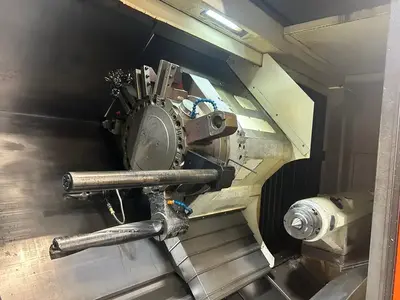

12 POSITION DRUM TURRET
ROTARY-TOOL SPINDLE SPEED: 4000 RPM
Chip Conveyor
24" Air Chuck
Rear Chuck Prep
EIA Option
Multitap Transformer

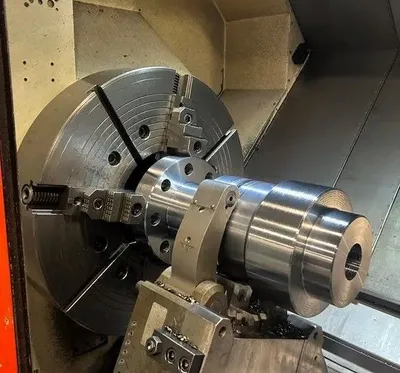

*Steady rest and chuck in photos not included but it comes with 24" Air Chuck*
*Available in late January/early February 2026 approx*
