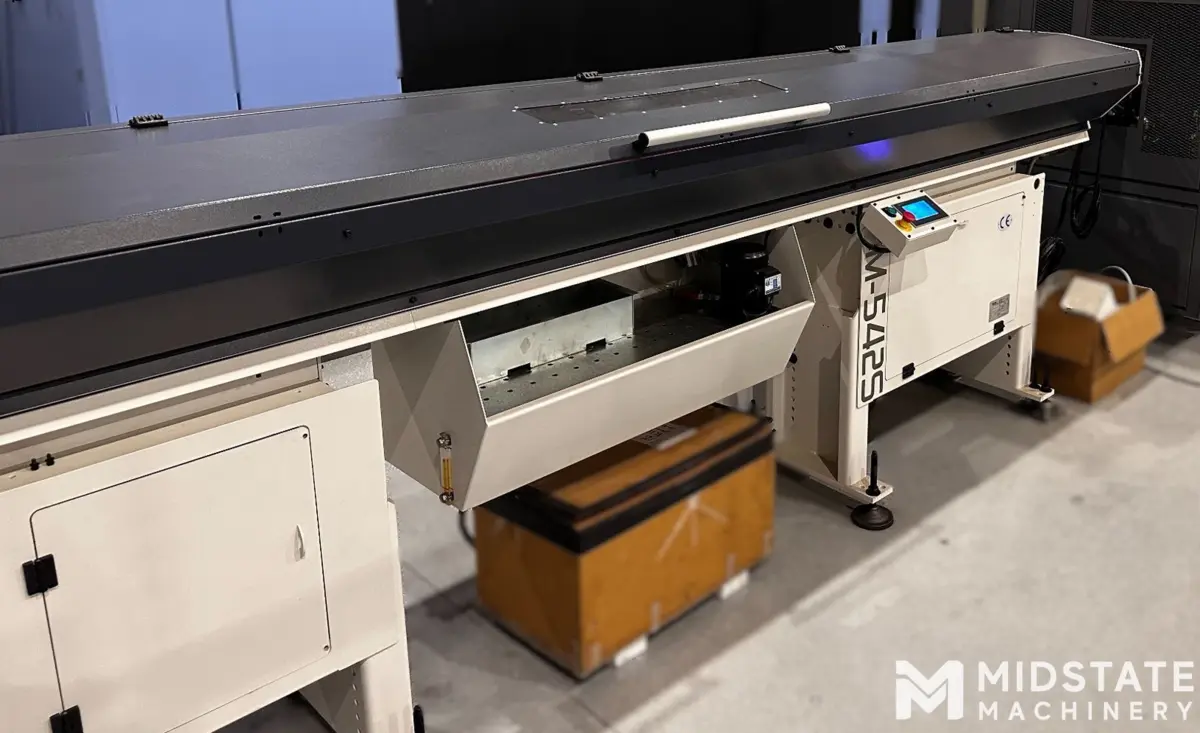

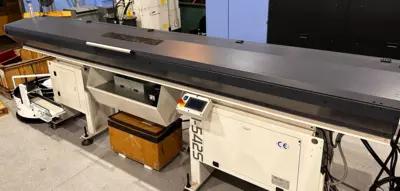

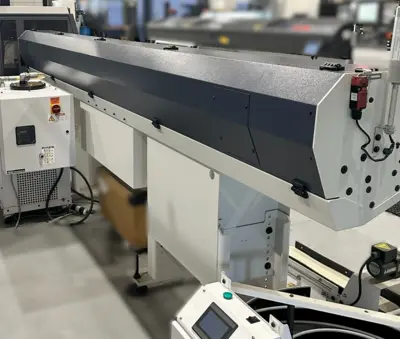

MIYANO M-542 Magazine Bar Loader, New in 2021
Have one to sell?
ConditionUsed
1 available

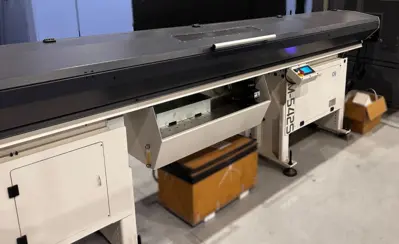

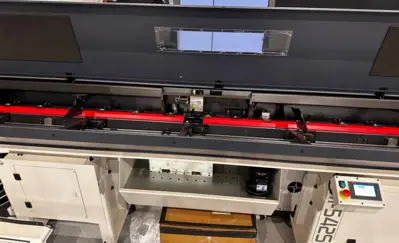

MIYANO M-542 Magazine Bar Loader, New in 2021.
Originally Configured for a Citizen BNA42GTY
Never before used. No bars were ever used
Like-New Condition.

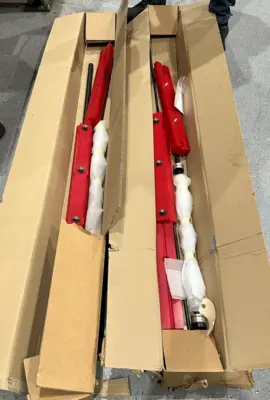

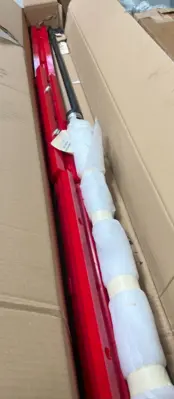

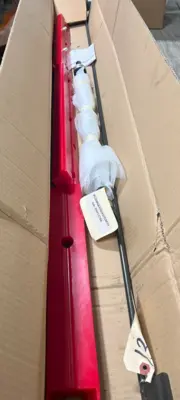

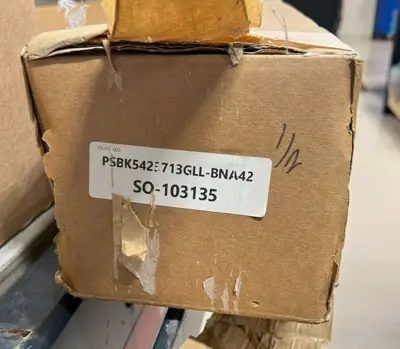

Multiple Channel sets included.
Capacity 1.65"
Bar Length 12'
Synch for Sliding Headstock? Yes
Dimensions 180" x 25" x 51"
Weight 2100 lbs

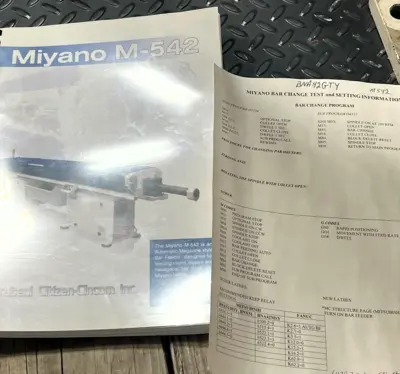

Specifications Direct From OEM Brochure:
Power consumption: 2 KW
Feed force: adjustable, max. 450 N (101 lbf)
Forward feed rate: adjustable 750 mm/sec max. (2.46 ft/sec)
Return feed rate: 1000 mm/sec (3.3 ft/sec)
Loading time: 30 sec (for 12’ bars)
Oil capacity : 55 liters (15 gallons)
Oil viscosity: ISO 100-150 hydraulic oil
Operating voltage: 200-230 V/60 Hz
Compressed air supply: 6 bar = (90 psi)
Compressed air consumption: approx. 8 liters per loading action
Bar Feed Dimensions: 180" x 25" x 51"
Weight without oil: 950 kg (2100 lbs)
Remnant length: 406 mm max (16 inches)
Maximum Bar Length: 3810 mm (12’6”)
Bar Diameter Range: 5-42 mm (.196”-1.653”)
Magazine Capacity: 12 linear inches
Originally Configured for a Citizen BNA42GTY
Never before used. No bars were ever used
Like-New Condition.
Multiple Channel sets included.
