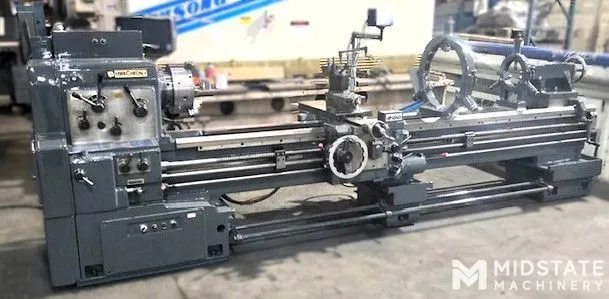

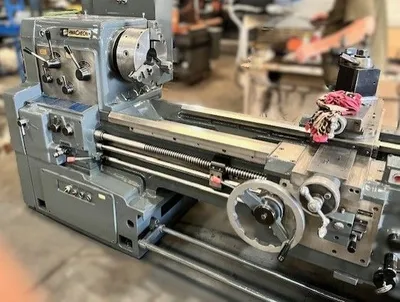

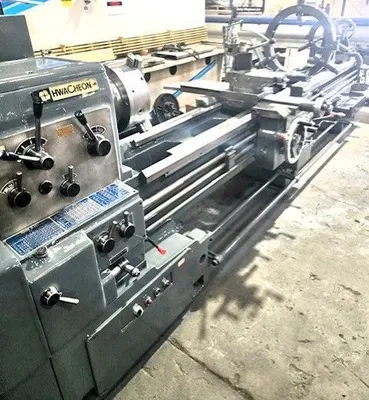

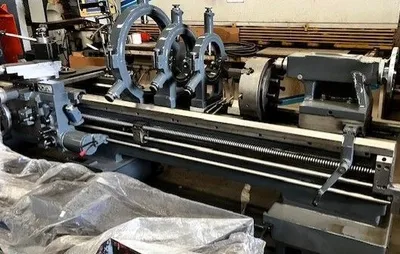

2014 WHACHEON HL-630

2-Axis Sony DRO

With Rapid Traverse

Swing 28.3"

Centers 120"

Spindle Bore 3"

Power 15 hp

RPM 1,205 RPM

Swing Over Cross Slide 19.7"

Capacity:

Swing Over Bed......................................... 28.34"

Swing Over Cross Slide.............................18.50"

Swing Over Gap.........................................Non Gap

Distance Between Centers.......................118.11"

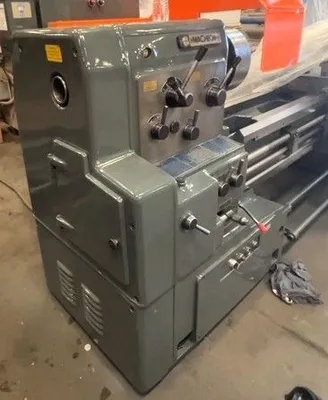

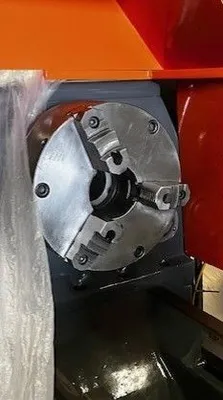

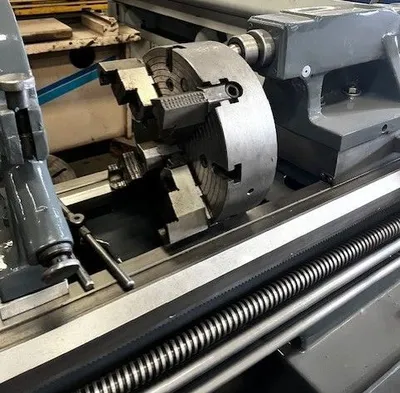

Spindle:

Spindle Nose.............................................A-8"

Spindle Bore..............................................3.03"

Taper Of Spindle Bore...............................MT No.7

Taper Of Center..........................................MT No.5

Range Of Spindle Speeds (12)...................27-1,205 RPM

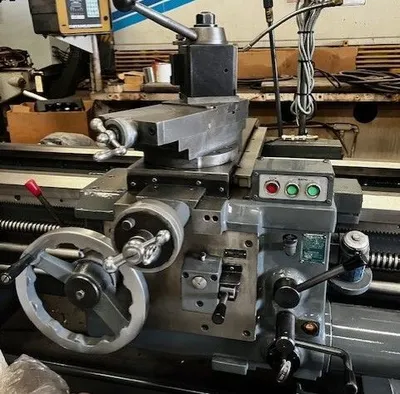

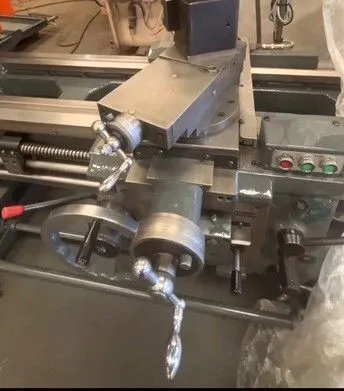

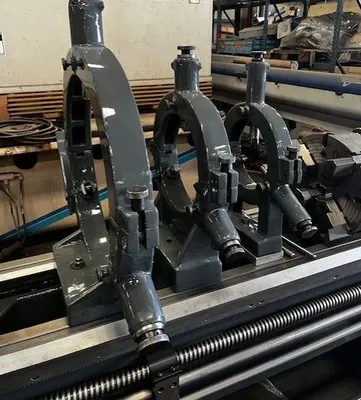

Carriage:

No. Of Feed Changes..................................40 Step

Longitudinal Feed (Z-Axis).........................0.0015"~0.0216 IPR

Cross Feed (X-Axis)....................................0.0016~0.0228 IPR

Cross Slide Travel.......................................13.35"

Compound Rest Travel...............................6.69"

Bite Holder Size..........................................1.25"x1.25"

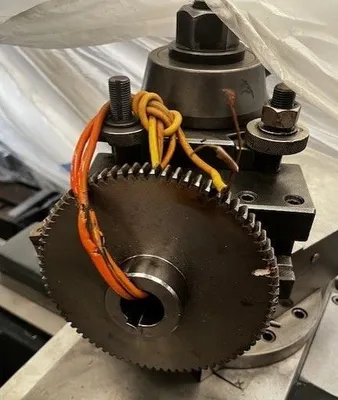

Threads:

Lead Screw (Dia. x Pitch)...........................1.57" x 0.47"

Inch Threads................................................56~2 TPI

Metric Threads.............................................0.0196"~0.55"

D.P. Threads..................................................1~7 MP

Tail Stock:

Spindle Travel...............................................5.90"

Taper Of Center.............................................MT No. 5

Bed:

Width Of Bed..................................................20.07"

Length Of Bed................................................175.27"

Motor:

Main Spidle Motor..........................................15 HP

Coolant Pump Motor......................................0.13 HP

Tank Capacity:

Coolant............................................................200 Gal.

Machine Size:

Dimension (L x W x H)....................................186.22" x 60.78" x 57.75"

Net Weight.......................................................10,185.35 Lbs.
