2009 MIYANO BNJ-42SY
Have one to sell?
ConditionUsed
1 available

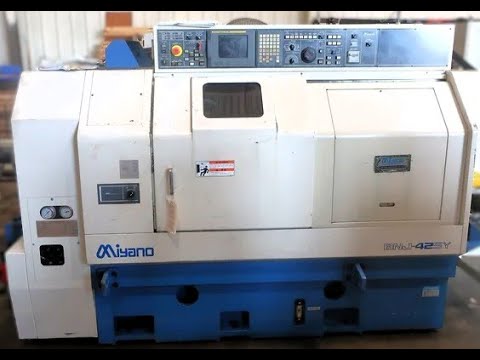

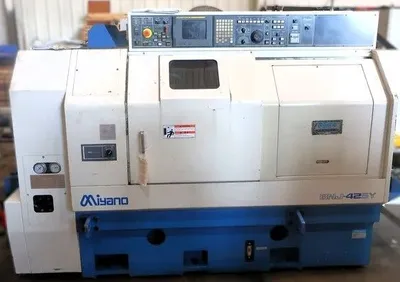

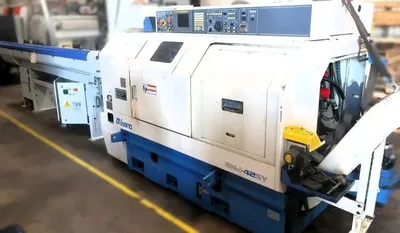

MIYANO BNJ-42SY 4-Axis Twin Turret Twin Spindle CNC Turning Center, New in 2009. Fanuc 18i-TB Control. 1.65" Bar Capacity, 5"/4" Chuck, and Equipped with Parts Catcher, Conveyor, and IEMCA Boss 545 Bar Feeder. Includes Tooling Cabinet.
Bar capacity
L & R Spindle 1.65"
Standard Turning Length 100mm
Size of Power Cuck L/R-Spindle 5"/4"
Spidle:
Spindle Speed Range (L-spindle) 60-6,000 min
Spindle Speed Range (R-spindle) 67-5,000 min
Spindle Motor (30min./cont.) L-Spindle 11/7.5 kW
Spindle Motor (30min./cont.) R-Spindle 5.5/3.7 kW
Slide Stroke (R-Sp) X2 70mm
Slide Stroke R-Sp) Z2 525mm
Main Turret:
Type of Turret Station 12 Station
Turret Indexing Time 0.25sec/1st.
Turret Indexing Methods AC Servo/Chuck Curv
Slide Stroke:
X1 165mm
Z1 246mm
Y1 +/-40mm
Back-Working Turret
Type of Turret Station 6 Station
Turret Indexing Time 0.2sec/1st.
Turret Indexing Methods AC servo/Curvic C
Revolving Tools (Main) Turret/option
No. of Revolving Tools Station 12
Tool Speed Range 60-6,000 min-1
Tool Motor 2.5 kW
Machining Capacity 13mm/M8xP1.25
Machine weight 12,125 lbs

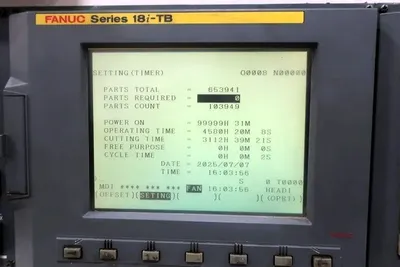

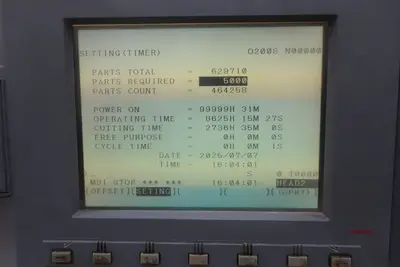

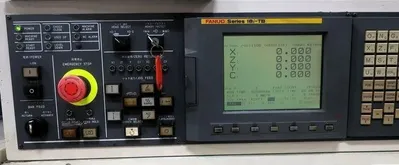

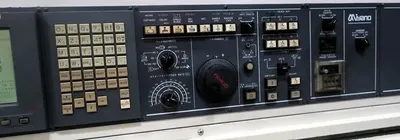

Fanuc 18i-TB CNC Control

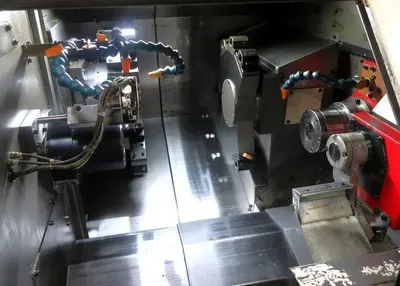

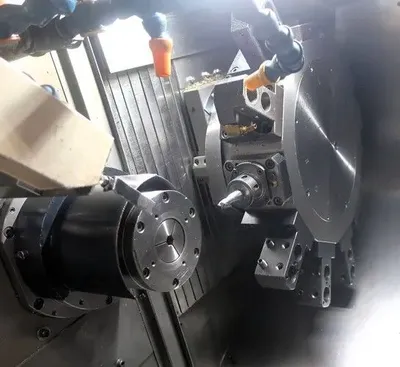

12 Position Turret Live Tool Station & 6 Position Rear Turret
Y-Axis on 12 Position Turret

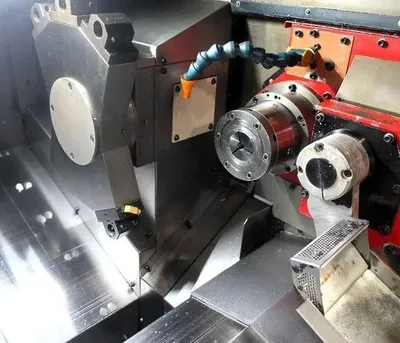

Main & Sub Spindle 1-5/8" (42mm) Capacity

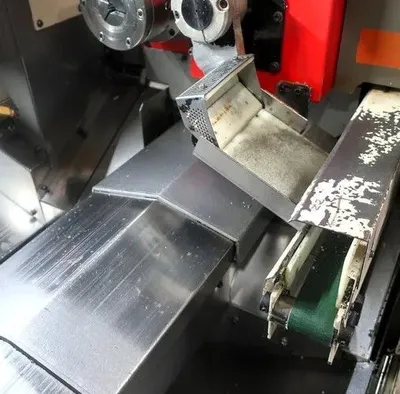

Parts Catcher with Parts Conveyor

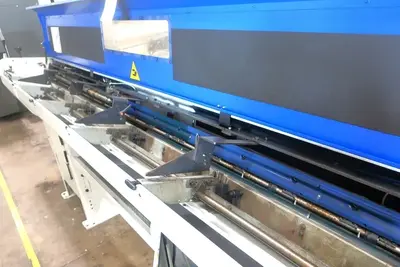

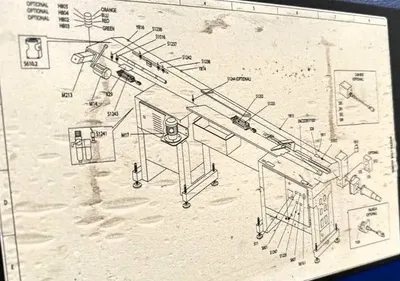

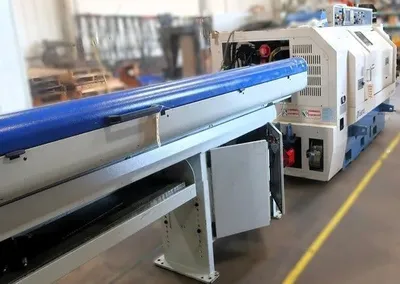

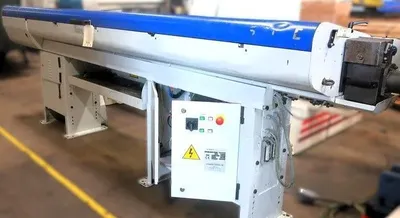

Iemca Magazine Bar Feeder

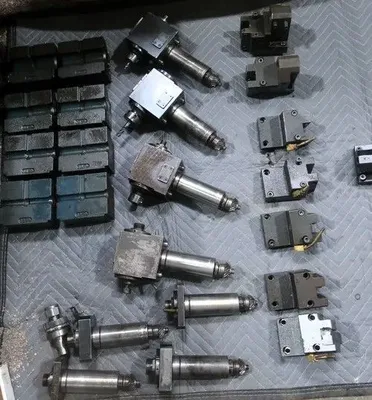

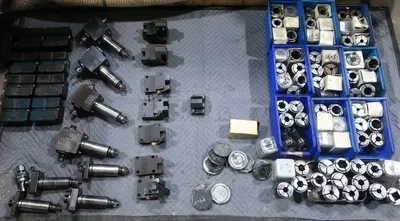

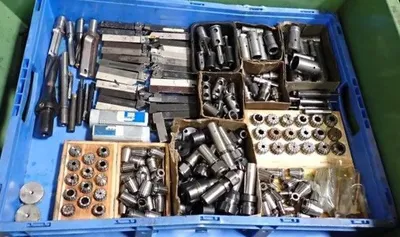

Tooling Including Live Tool Holders
Chip Conveyor
Coolant System
