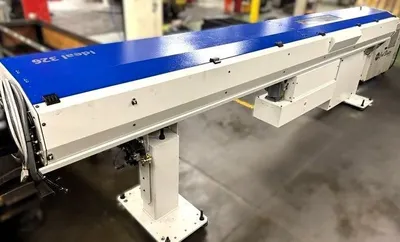

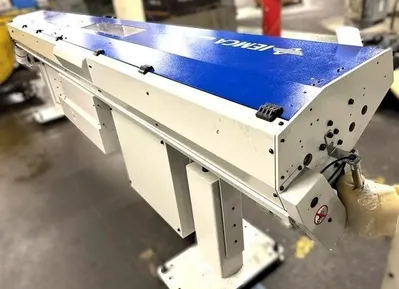

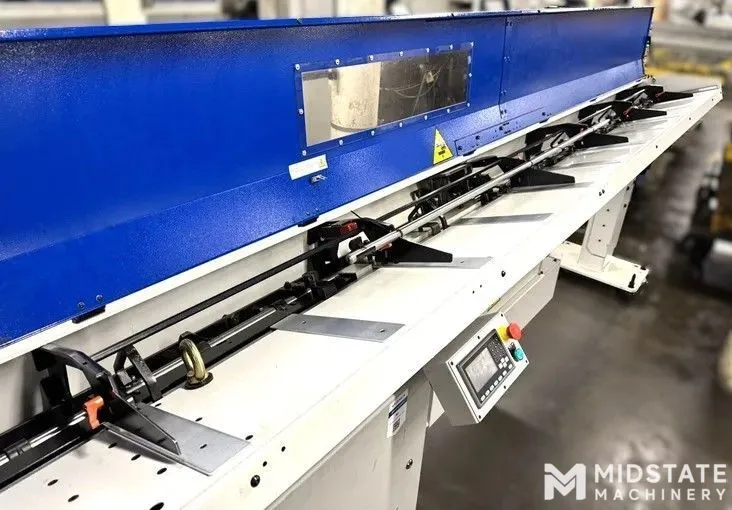

2023 IEMCA Ideal 326

• ROUND BARS: 3 - 26 mm (1/8'' - 1'')
• BAR LENGTH: 1,000 - 3,700 mm (3'3'' - 12'2'')
• MP MAGAZINE AVAILABLE: Yes, Single Rack 280 mm (11.02'')
• HEXAGONAL BARS: 3 - 22 mm (1/8'' - 7/8'')
• REMNANT LENGTH: 80 - 350 mm (3.15'' - 13.78'')
• SQUARE BARS: 3 - 18 mm (1/8'' - 11/16'')
• MOBILE HEADSTOCK: Yes
• BAR CHANGEOVER TIME: 33 sec. (for bar lengths of 3,200 mm)
• BAR WEIGHT: Max 18 kg (40 lbs)
• REVERSIBLE MAGAZINES: Yes
• COMPRESSED AIR: 5 - 7 bar (73 - 102 psi)
• BAR FEEDER WEIGHT: 690 kg (1,530 lbs)
• FEED RATE: 420 mm/sec. (990 in/min.)
• INSTALLED POWER: 650 W
• NUMBER OF SPINDLES: 1
• RETURN SPEED: 1,200 mm/sec. (2,830 in/min.)
• OPERATING VOLTAGE: 220/380/440 Volt
