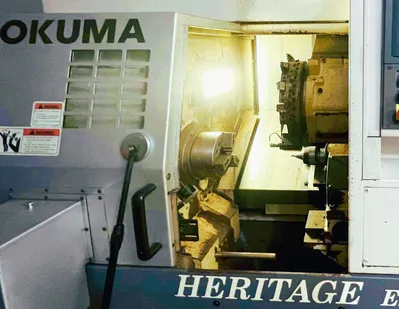

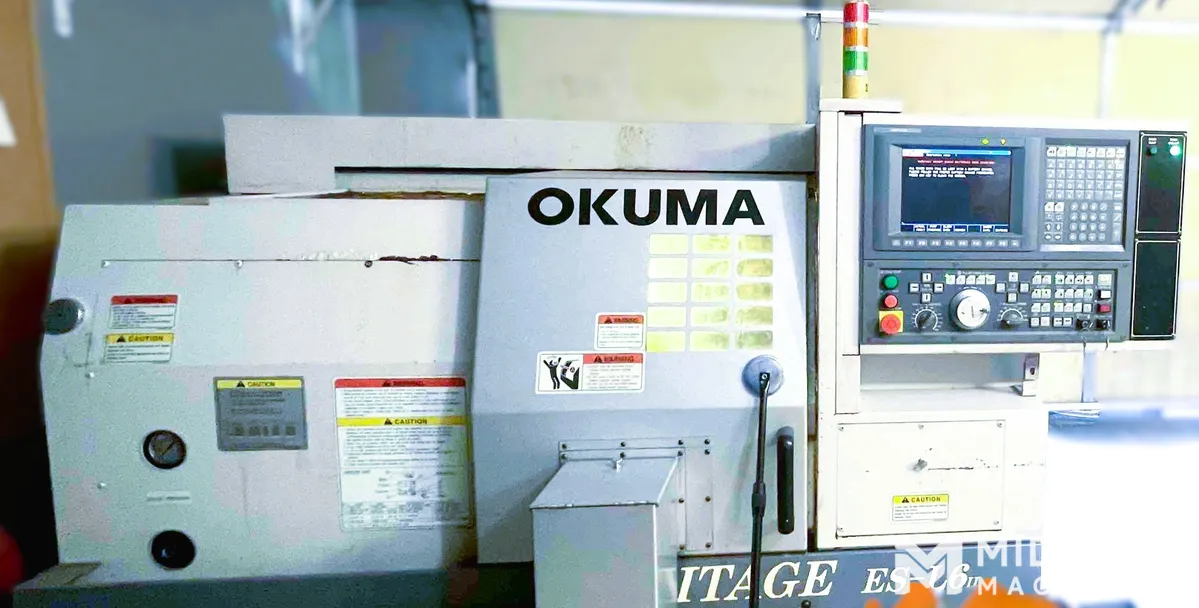

2005 OKUMA Heritage ES-L6II

X-Travel: 6.10"
Z-Travel: 12.60"
Distance Between Centers: 22"
Max Swing Over Bed: 17.72"
Max Turning / Cutting Length: 11.02"
Max Cutting / Turning Diameter: 8.27"
Rapid Traverse: 787/984 IPM
Spindle-
Bar Capacity: 1.69"
Chuck Size: 6.0"
Chuck Type: Hydraulic
Chuck Description: 3-Jaw Chuck
Spindle Bore: 2.09"
Spindle Speed: 6,000 RPM
Spindle Motor: 10 HP
Second Spindle
Total Spindles: 1
Turret-
Single Turret: Equipped With
Tool Positions: 12
Control-

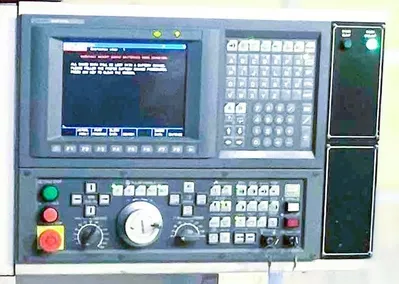

Control Make/Model: Okuma OSP-U10L CNC Control
Control Options: Color Monitor;Spindle Orientation
Additional Control Options: 10.4" TFT Color Touch Display
Tailstock / Steadyrest
Tailstock: Equipped With
