2019 HURCO TM-8i

Have one to sell?
800-289-3519
Sales@MidstateMach.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC Lathes
Manufacturer:
HURCO
Model:
TM8I
Year:
2019
Stock #:
3164
Status:
For Sale

Description

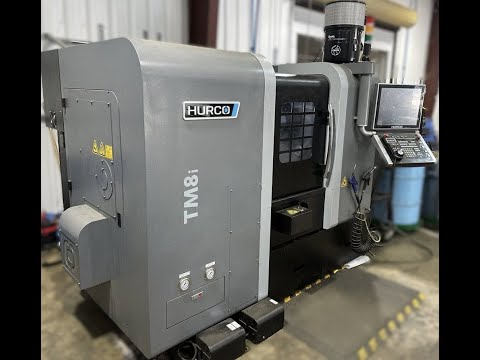

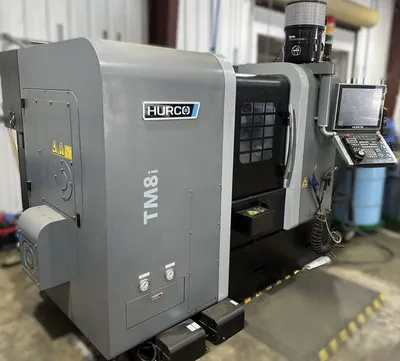

HURCO TM-8i CNC Lathe, New in 2019. Winmax Control. Chip Conveyor. Collet Chuck. Low Hours

Swing20.7"525.78 mm
Machining Length20.7"525.78 mm
Chuck Size8"203.2 mm
Bar Capacity2.6"66.04 mm
Power31 hp23.1 kW
Max RPM4,000 RPM4,000 RPM
Turning Dia14"355.6 mm
TailstockYesYes
ControlCNCCNC
Weight8708lbs8708lbs

Bar Capacity: 2.6″
Spindle Speed: 4,000 RPM
Spindle Motor: 31 HP
X Axis Travel: 8″
Z Axis Travel: 20″
Rapid Rate Z Axis: 1,181 IPM

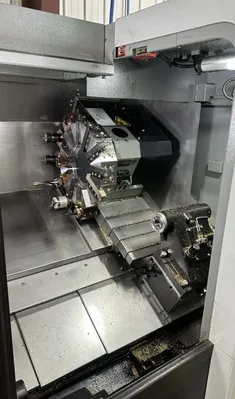

Turret Tools: 12 Station
Rapid Rate X Axis: 1,181 IPM
Max Turning Dia: 14″
Max Turning Length: 20.6″
Max Swing: 20.6″
Distance Between Centers 23.2″
Max torque high gear 161.9 ft. lbs
Turret Index Time .5-1.5 sec
Weight: 8,708 LBS

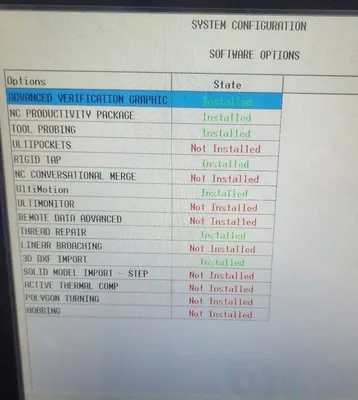

Hurco WinMax

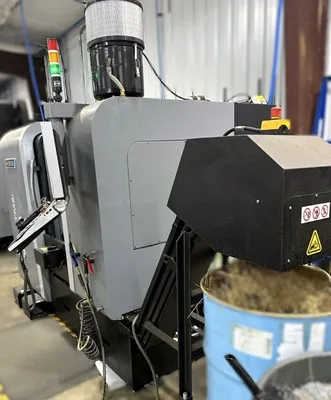

Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Mist collector
Collet Chuck
