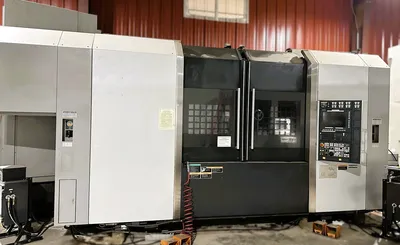

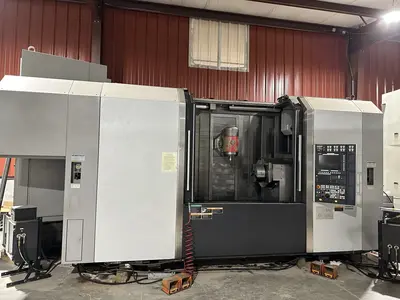

2007 MORI SEIKI NT4300DCG/ 1500S

Swing 28.7" 728.98 mm
Chuck Size 1,212" 30,785 mm
Bar Capacity 3.53" 89.662 mm
Power 220 hp 164.1 kW
Turning Dia 28.715" 729.36 mm
Live Tooling Yes Yes
Dimensions 21'L x 10' W x 9'H 21'L x 10' W x 9'H
Weight 62,250 lbs 62,250 lbs
2007 DMG MORI NT4300 DCG 1500S
Swing Over Bed- 28.7"
Turning Diameter- 28.7"/15.7"
Turning Length- 58.9"
Distance Between Spindles- 73.3"

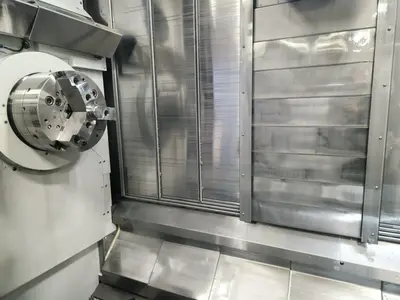

Chuck Size 1, 2- 12"/12"
Spindle Nose 1, 2- A2-8, A2-8
Spindle Bore Diameter 1, 2- 4.1", 4.1"
Bar Capacity 1, 2- 3.5", 3.5"
Spindle Speeds 1, 2- 2500, 2500 RPM
Spindle Horsepower 1, 2- 40, 40 HP

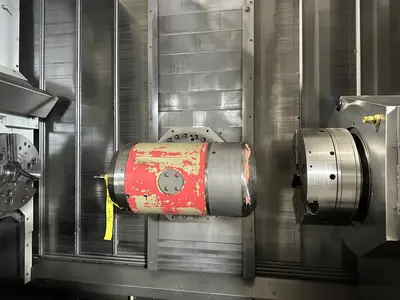

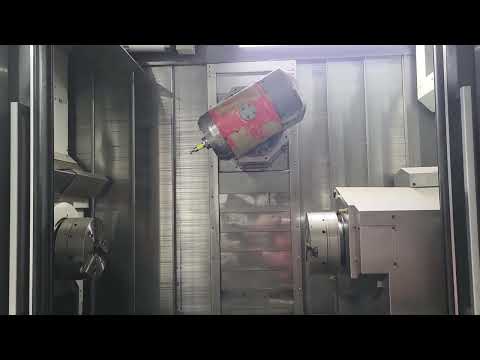

B-Axis Head Indexing- .0001 Degree

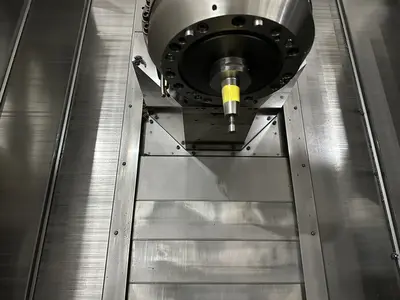

B-Axis Milling Spindle Speed- 12,000 RPM
B-Axis Milling Spindle Taper- Capto C6
B-Axis Milling Spindle Horse Power- 24.7 HP
ATC for Milling Spindle-240 ATC
Tool Diameter-2.7"/5.5"
Tool Length 15.7"
Tool Weight 22 lbs
X-Axis X1, X2, X3- 29.5", 7.7"
Z-Axis Travel Z1, Z2, Z3- 61", 60"
Y-Axis Travel Y1, Y2, Y3- +/-8.3"
C-Axis Indexing 1, 2- .0001, .0001 Degree
W-Axis Travel Sub Spindle- 63"
Rapid Traverse Rates X1, X2, X3- 1968, 1181 IPM
Rapid Traverse Rates Y1, Y2, Y3- 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3- 1968,1181 IPM
Machine Weight 62,250 lbs
Specifications:
Swing Over Bed: 28.7"
Turning Diameter: 28.7"/15.7"
Turning Length: 58.9"
Distance Between Spindles: 73.3"
Chuck Size: 1, 2 12"/12"
Spindle Nose: 1, 2 A2-8, A2-8
Spindle Bore Diameter: 1, 2 4.1", 4.1"
Bar Capacity: 1, 2 3.5", 3.5"
Spindle Speeds: 1, 2 2500, 2500 RPM
Spindle Horsepower: 1, 2 40, 40 HP
B-Axis Head Indexing: .0001 Degree
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Horsepower: 24.7 HP
ATC for Milling Spindle: 240 ATC
Tool Diameter: 2.7"/5.5"
Tool Length: 15.7"
Tool Weight: 22 lbs
X-Axis: X1, X2, X3- 29.5", 7.7"
Z-Axis Travel: Z1, Z2, Z3- 61", 60"
Y-Axis Travel: Y1, Y2, Y3- +/-8.3"
C-Axis Indexing: 1, 2- .0001, .0001 Degree
W-Axis Travel Sub Spindle: 63"
Rapid Traverse Rates: X1, X2, X3- 1968, 1181 IPM
Rapid Traverse Rates: Y1, Y2, Y3- 1181 IPM
Rapid Traverse Rates: Z1, Z2, Z3- 1968,1181 IPM
Machine Weight: 62,250 lbs
