2018 OKUMA 2SP-150HM
Have one to sell?
ConditionUsed
1 available

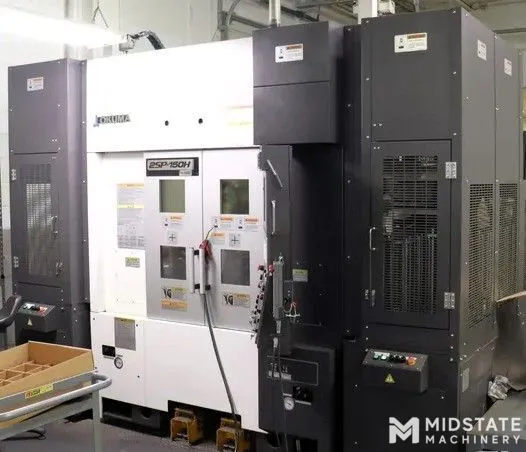

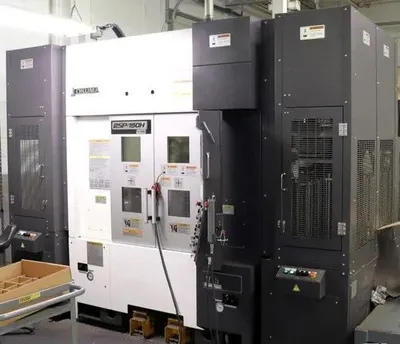

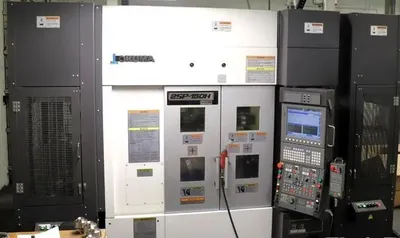

OKUMA 2SP-150HM PARALLEL 2-SPINDLE LATHE WITH OGL-3 LOADER, New in 2018. 2 STATION GANTRY LOADER. LIVE MILLING AT 6,000 RPM. (2) 12-POSITION TURRETS. DUAL 8" CHUCKS. TOOL TOUCH SETTER AND ADVANCED OSP P300LA CONTROL. ONLY 3,500 CUTTING HOURS!
MAX CUTTING DIAMETER 5.91"
MAX CUTTING LENGTH 3.15"
X-AXIS TRAVEL 5.91"
Z-AXIS TRAVEL 6.1"
CHUCK SIZE 8"
SPINDLE BORE 1.65"
SPINDLE SPEED 4,500 RPM
RAPID TRAVERSE RATE - X-AXIS 945 in/min.
RAPID TRAVERSE RATE - Z-AXIS 945 in/min.
TURRET CAPACITY 12
LIVE MILLING Yes
LIVE MILLING SPEED 6,000 RPM
TURRET 2 CAPACITY 12

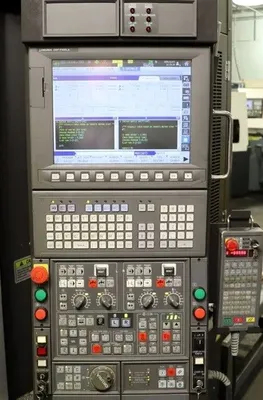

OSP P300LA THiNC ADNVACED CONTROL
TWIN PARALLEL SPINDLE LATHE WITH STANDARD SPINDLE BORE
LIVE MILLING CAPABILITY (6,000 RPM)

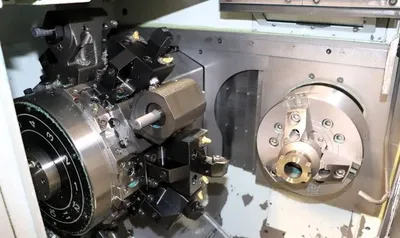

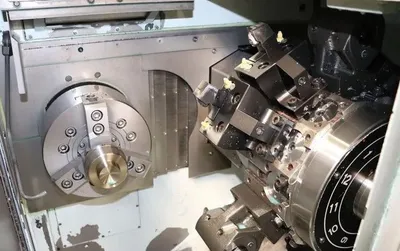

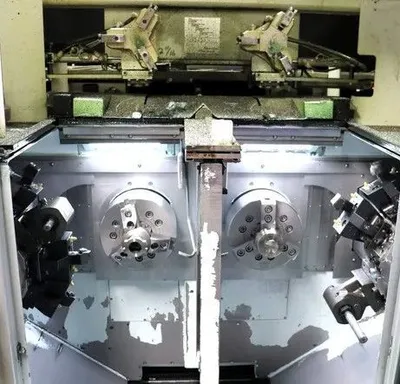

(2) 8" 3-JAW KITAGAWA HYDRAULIC CHUCKS
(2) 12-POSITION TURRETS WITH LIVE MILLING CAPABILITY
TOOL TOUCH SETTER

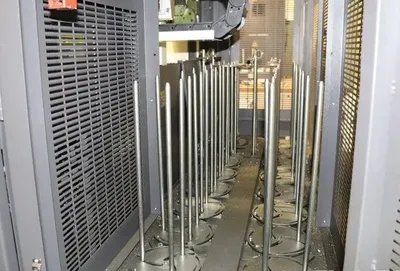

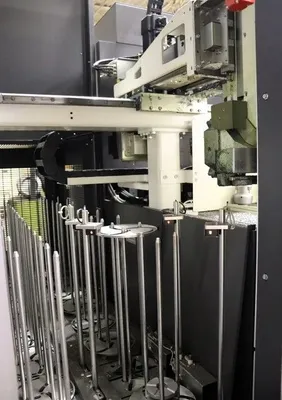

OGL-3 LOADER (DUAL GANTRY LOADING SYSTEM)
THROUGH SPINDLE COOLANT (LEFT AND RIGHT)

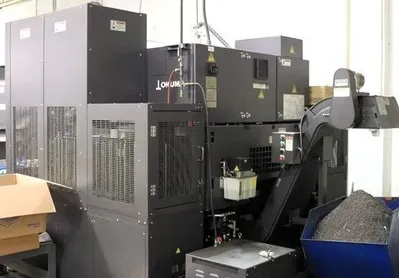

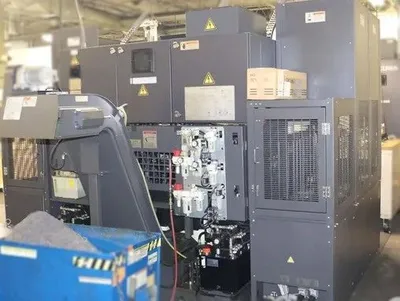

REAR DISCHARGE CHIP CONVEYOR
OKUMA HIGH OUTPUT FLOOD COOLANT SYSTEM
MULTI-TAP TRANSFORMER
LARGE ASSORTMENT OF COLLETS, LIVE AND STATIONARY HOLDERS
HI-G CONTROL, 3D ANIMATION, ANIMATION,
LAP4, NOSE-R 2B, USER TASK 2
SYNCRHO TAPPING, TOOL LIFE MANAGEMENT
MAC MAN, HI-CUT PRO,

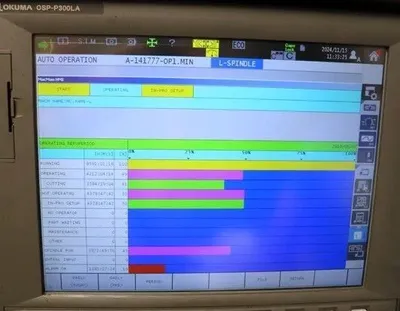

HOURS OF USE (AS OF 5/22/2025)
* RUNNING: 8,591 HOURS
* OPERATING: 4,212 HOURS
* CUTTING: 3,584 HOURS
* SPINDLE RUN: 3,872 HOURS
