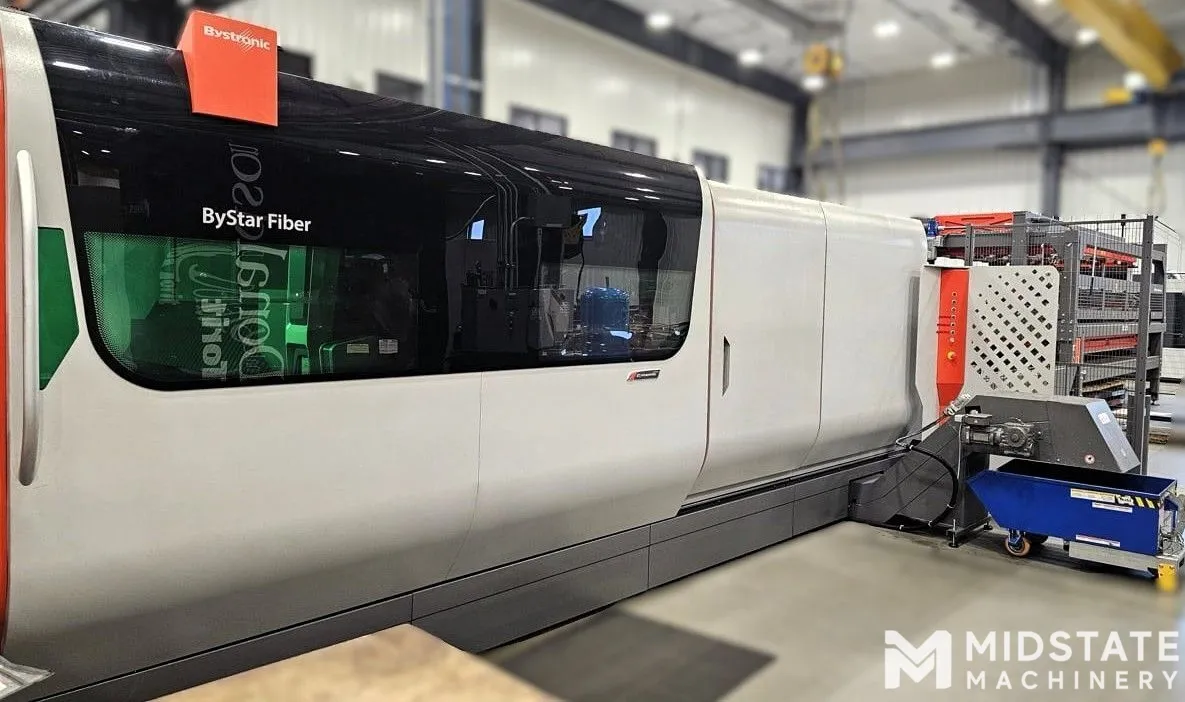

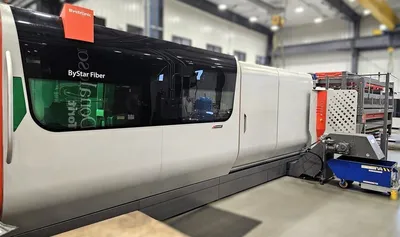

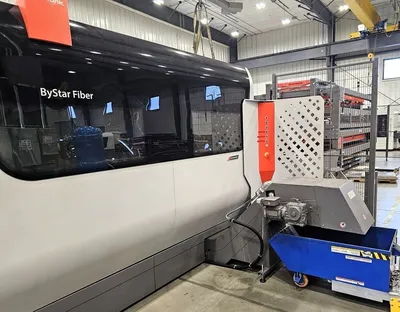

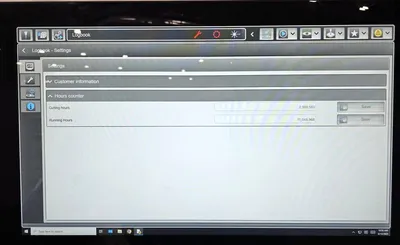

2021 BYSTRONIC BYSTAR FIBER 4020

Length, approx. 559 in
Width, approx. 248 in
Height, approx. 126 in
Nominal sheet size (X) 160 in
Nominal sheet size (Y) 80 in

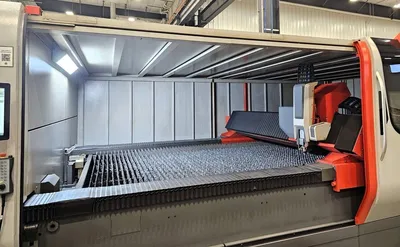

Cutting area (X) 162 in
Cutting area (Y) 83 in
Cutting area (Z) 4 in
Max. positioning speed parallel axis X/Y 4724 in/min
Max. positioning speed simultaneous 6681 in/min

Bilateral repeatability of positioning of one axis R (following
ISO 230-2:2014)
0.001 in

Average bilateral position deviation of one axis M (following
ISO 230-2:2014)
0.002 in

Edge detection accuracy ± 0.02 in
Max. workpiece weight 4190 lbs

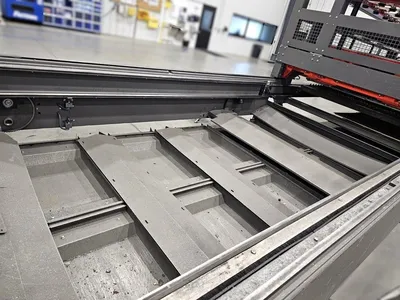

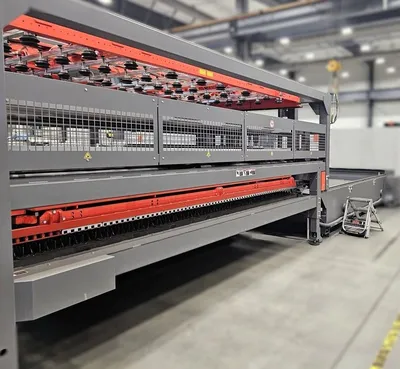

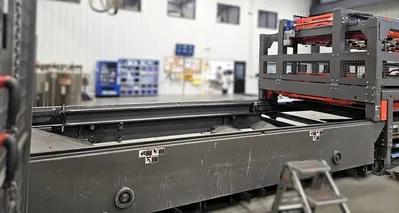

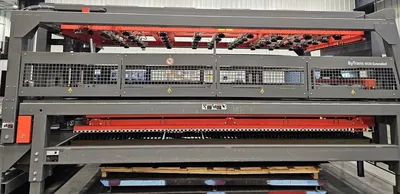

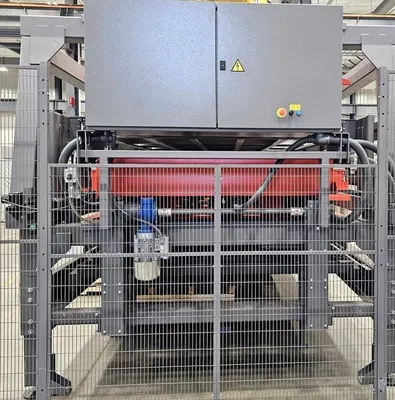

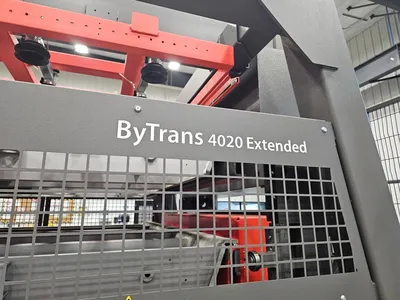

Max. allowed workpiece weight on both shuttle tables 7080 lbs
Machine weight (excl. exhaust and conveyor) 32,000 lbs
Table change time 28 s

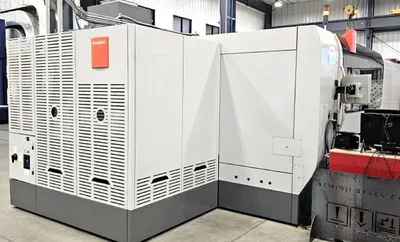

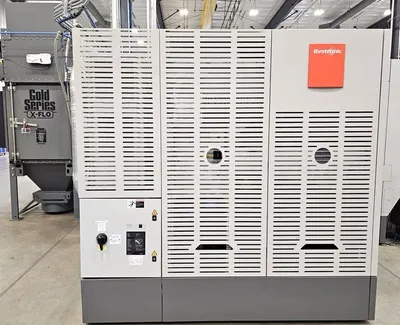

Laser source Fiber 15000
Power 15000 W
Range of adjustment 400-15000 W
Wavelength Fiber
Steel (max. cuttable sheet thickness) – /* advanced applications 1/1.96* in
Steel (with BeamShaper option) 1.18 in

Stainless steel (max. cuttable sheet thickness) – /* advanced
applications 1.57/1.96* in

Aluminum (max. cuttable sheet thickness) – /* advanced
applications 1.57/1.96* in

Brass (maax. cuttable sheet thickness) 0.75 in
Copper (max. cuttable sheet thickness) 0.75 in

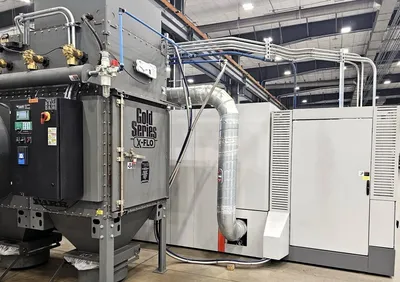

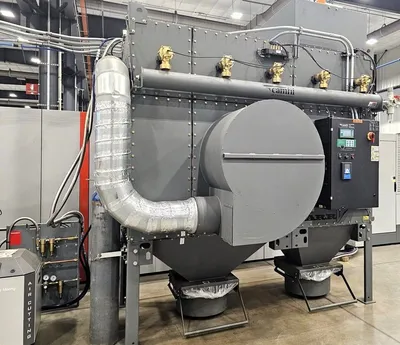

Total electric consumption of system (incl. exhaust, chiller) * 27 kW
