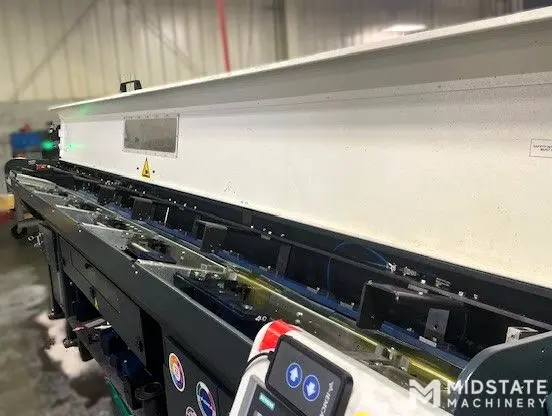

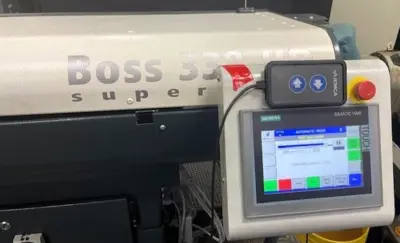

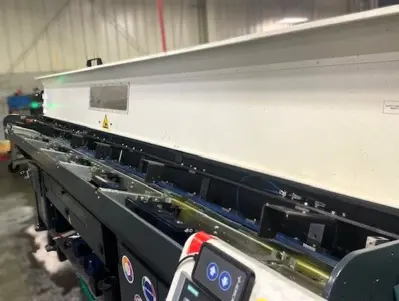

2019 IEMCA BOSS 338 HD SUPERFAST

Capacity 1.5"
Bar Length 12'
Weight 2,000 lbs
Specifications Direct from OEM Brochure

ROUND BARS: 3 - 38 mm (1/8’’ - 1’’ 1/2)
SQUARE BARS: 3 - 26 mm (1/8’’ - 1”)
HEXAGONAL BARS: 3 - 32 mm (1/8’’ - 1” 1/4)
BAR LENGTH: 700 - 6,380 mm (2’4” - 20’11”)
REMNANT LENGTH: 6’ version: 70 - 295 mm (2.76’’ - 11.61’’)
12’ version: 70 - 400 mm (2.76’’ - 15.75’’)
(700 mm (27.56”) option available)
BAR WEIGHT: Max 30 kg (66 lbs)
BAR CHANGEOVER TIME: 20 sec (for bar length of 3,200 mm)
FEED RATE: 1,000 mm/sec (2,360 in/min)
(adjustable)
RETURN SPEED: 1,800 mm/sec (4,250 in/min)
(adjustable)
BAR FEEDER WEIGHT: 6’ version: 620 kg (1,370 lbs)
12’ version: 900 kg (2,000 lbs)
COMPRESSED AIR: 8 bar (116 psi)
INSTALLED POWER: 2 kW
MP MAGAZINE AVAILABLE : Single Rack 280 mm (11.02’’)
(Magazine Extension 180 mm (7.09’’) available)
P MAGAZINE AVAILABLE: Multi Rack 1,800 mm (70.87’’)
OAB/F MAGAZINE AVAILABLE: Bundle 1.2 tons (2,650 lbs)
