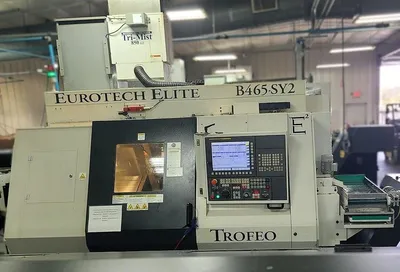

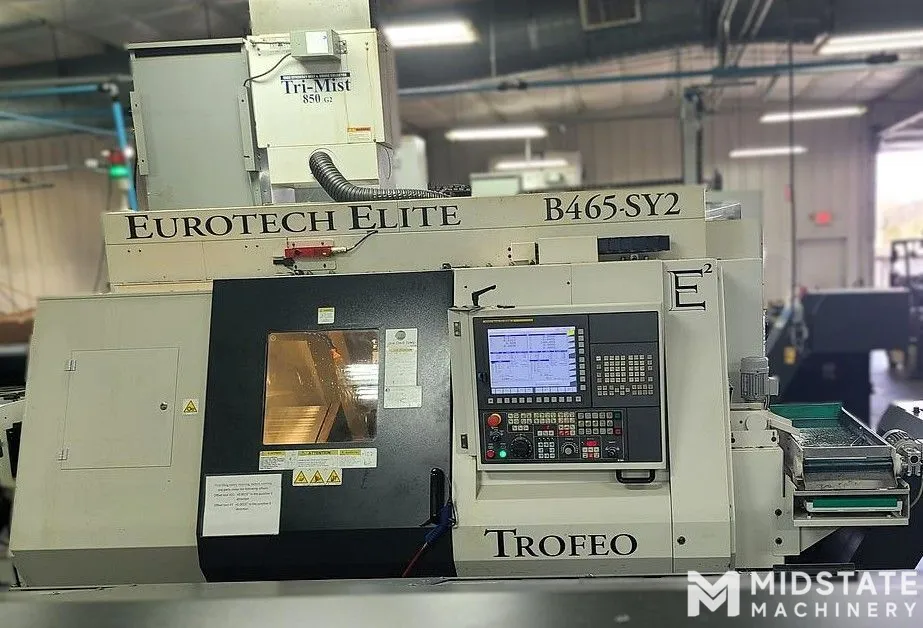

2020 Eurotech TROFEO B465-SY2

General Specifications

Bar Capacity: 2.56"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"

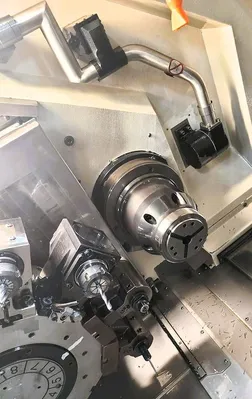

Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6" ASA

Spindle Bore: 3.15"

Spindle Motor: 35HP

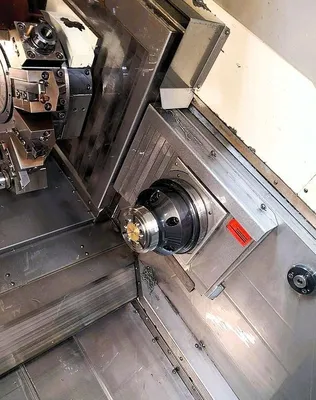

Sub Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5" ASA

Spindle Bore: 2.17"

Spindle Motor: 15 HP

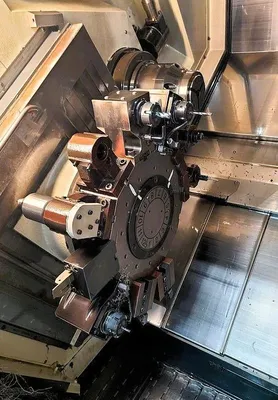

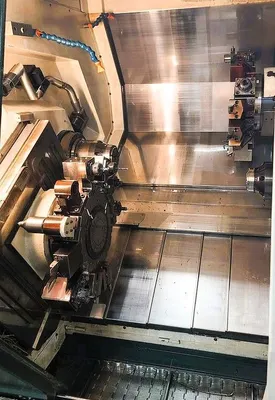

Turret

Number of Stations / Max Number of Tools: 12 / 192

Turret Indexing (1 Position): 0.15 Seconds

Number of Live Tool Stations / Max Number of Live Tools: 24 / 48

Tool Speed (Standard/Max): 4,000 / 6,000 RPM

Optional Tooling

Osterle X Axis Live Tools 300-5501-E32 B109 Qty 9

P144-00118 Double Outlet Radial Qty 5

P144-00901 3 Position ID Block Qty 1

2 radial toolholders 10.57.82.00

3 boring bar holders 1 ¼” h=100mm 10.88.39.00

3 boring bar holders 1 ¼” h= 80mm 10.57.84.00

2 cut-off toolholders 10.57.85.00

2 toolholders 10.88.01.00

4 toolholders 20x20 to machine on the sub-spindle 10.88.14.00

2 coolant plugs 10.57.84.03.1

Dimensions

Machine with Chip Conveyor: 173" x 85" x 89"

Spindle Center Height: 42"

Machine Weight with Chip Conveyor: 17,900
