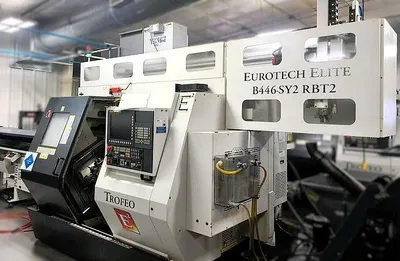

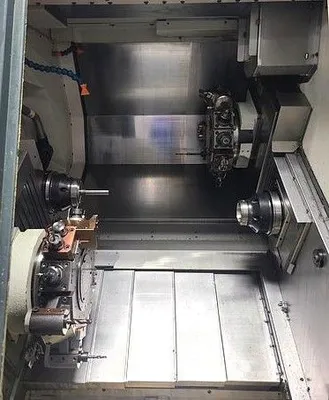

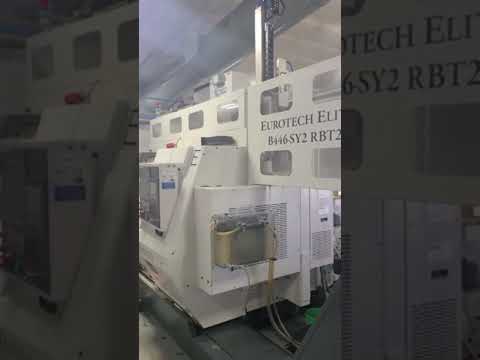

2020 Eurotech TROFEO B446-SY2 RBT2

General Specifications

Machining Capacity

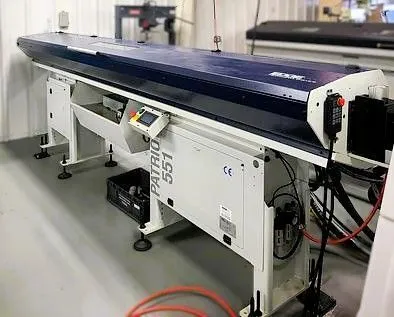

Bar Capacity: 2.56"

Chuck Diameter: 8"

Distance Between Centers: 37.5"

Swing Over Diameter: 20"

Main Spindle

Spindle Speed: 4,000 RPM

Spindle Nose: 6"

Spindle Bore: 3.15"

Chuck Diameter: 10"

Motor Power: 35 HP

C-Axis Min. Programmable value: 0.001 Degrees

Sub-Spindle

Spindle Speed: 5,000 RPM

Spindle Nose: 5"

Spindle Bore: 2.17"

Chuck Diameter: 6/8"

Motor Power: 15 HP

C-Axis Min. Programmable value: 0.001 Degrees

Offset Stroke: 4.72"

B-Axis Stroke (Rapid Traverse): 26.35 - 1181 IPM

Turrets

Number of Turrets: 3

Number of Stations: 12

Number of Tools: 192

Turret Indexing: 15 Seconds

Number of Live Tool Stations: 36

Number of Live Tools: 72

Live Tool Speed: 4,000 RPM

Motor Powered: 5 Geared

Rapid Traverse (X1/X2/X3): 708 IPM

Rapid Traverse (Z1/Z2/Z3): 1181 IPM

Rapid Traverse (Y1/Y2/Y3): 3.54 (-1.57/+2.32) - 354 IPM

Hours

Power on hours: 10117H

Run time: 6956H

Cutting time: 4760H

Optional Tooling:

Osterle X Axis Live Tools 300-5501-E32 B109 Qty 9

P144-00118 Double Outlet Radial Qty 5

P144-00901 3 Position ID Block Qty 1

2 radial toolholders 10.57.82.00

3 boring bar holders 1 ¼” h=100mm 10.88.39.00

3 boring bar holders 1 ¼” h= 80mm 10.57.84.00

2 cut-off toolholders 10.57.85.00

2 toolholders 10.88.01.00

4 toolholders 20x20 to machine on the sub-spindle 10.88.14.00

2 coolant plugs 10.57.84.03.1

Machine Dimensions: 173" x 85" x 89"

Machine Weight: 18,500 lbs
