2000 ROMI M17
Have one to sell?
ConditionUsed
1 available

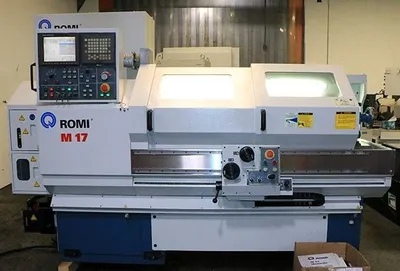

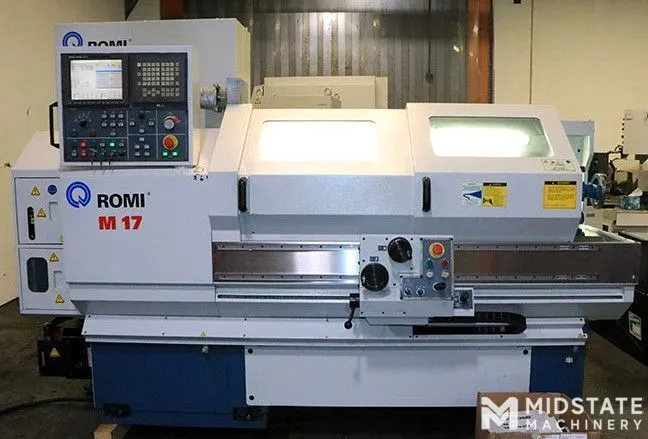

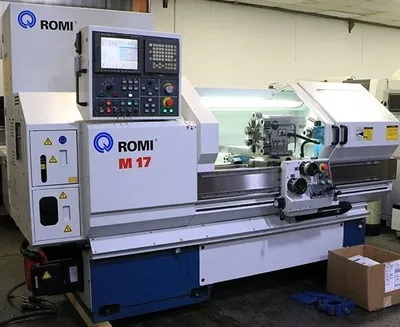

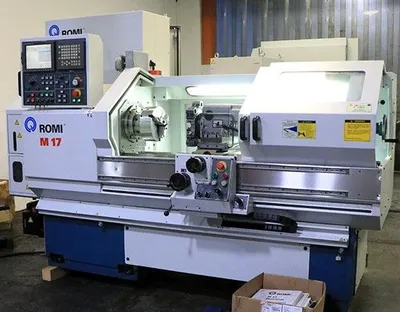

ROMI M17 CNC Combination "Teach" Lathe, New in 2000. 17" x 43". 10HP GE-Fanuc Type Variable Speed Spindle Drive. Turn Parts Manually or Automatically. 10.4" Color LCD Display. 10" 3-Jaw Chuck.
SWING OVER BED ............................... 16.93"
DISTANCE BETWEEN CENTERS ..................... 43."
SWING OVER CROSS SLIDE ....................... 8.03"
CROSS SLIDE (X) TRAVEL ....................... 8.66"
BED WIDTH .................................... 12.01"
BED HEIGHT ................................... 13.07"
SPINDLE NOSE CAMLOCK ......................... D1-6"
HOLE THROUGH SPINDLE ......................... 2.09"
RANGE OF SPINDLE SPEEDS (INF VARIABLE) ....... 3 - 3000 RPM
RAPID TRAVERSE (Z) ........................... 394 IPM
RAPID TRAVERSE (X) ........................... 295 IPM

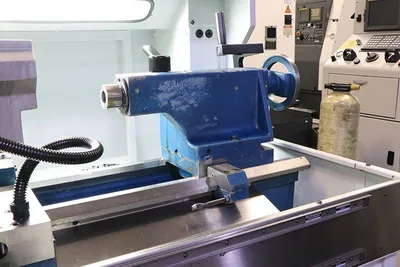

TAILSOCK QUILL TRAVEL ........................ 4.72"
QUILL DIAMETER ............................... 2.36"
QUILL TAPER HOLE ............................. 4MT
MAIN MOTOR ................................... 10 HP
WEIGHT ....................................... 6285 LBS

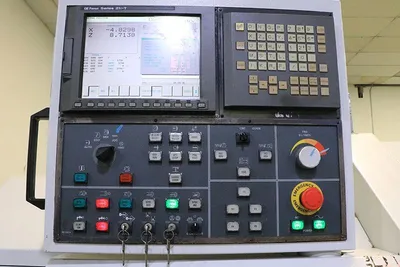

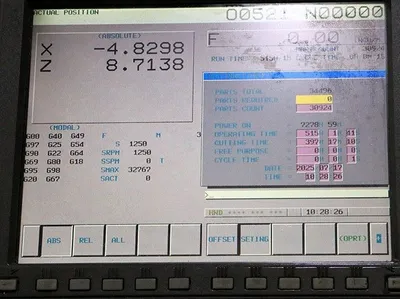

- GE-FANUC 21i-T CONTROL w/MANAUL GUIDANCE SOFTWARE, TOOL
PATH& 3D PART SHAPE GRAPHICS, TEACH MODE, CONVERSATIONAL
PROGRAMMING, G CODE PROGRAMMING, BUILT-IN DRO
- 10 HP GE-FANUC TYPE VARIABLE SPEED SPINDLE DRIVE
- TURN PARTS MANUALLY OR AUTOMATICALLY

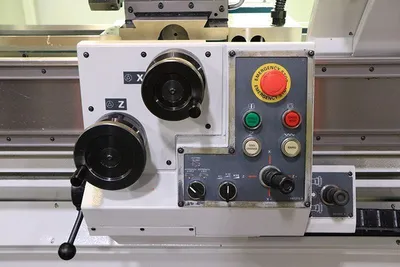

- DUAL ELECTRONIC HANDWHEEL CONTROLS
- "TEACH" 1ST PART, RUN REMAINING PARTS AUTOMATICALLY
- FLASH MEMORY CARD SLOT& RS 232 PORT
- 10.4" COLOR LCD DISPLAY
- CONSTANT SURFACE SPEED
- INCH/METRIC CONVERSION
- MULTI-START THREADING, THREAD REPAIR

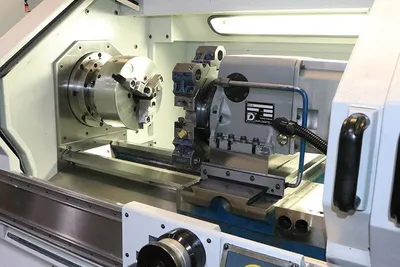

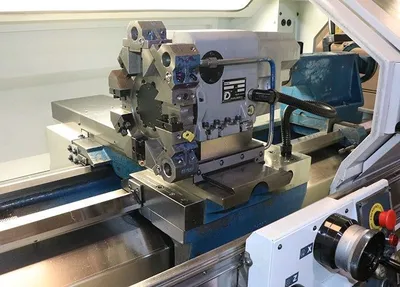

- DUPLOMATIC MODEL: BSV-N EIGHT POSTION ELECTRONIC TURRET

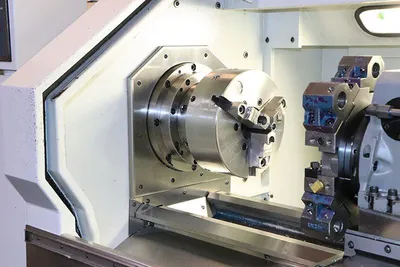

- 10" 3-JAW CHUCK

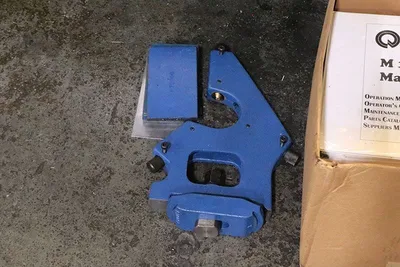

- STEADY REST

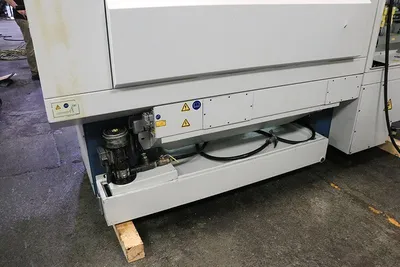

- COOLANT SYSTEM
- AUTOMATIC LUBRICATION SYSTEM
