2024 HAAS VF-4
Have one to sell?
ConditionUsed
1 available

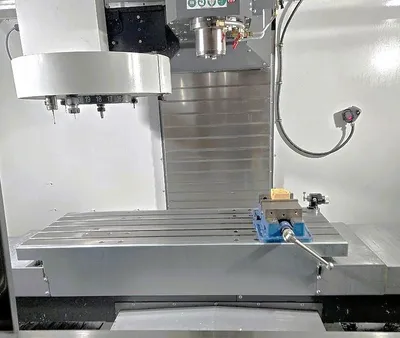

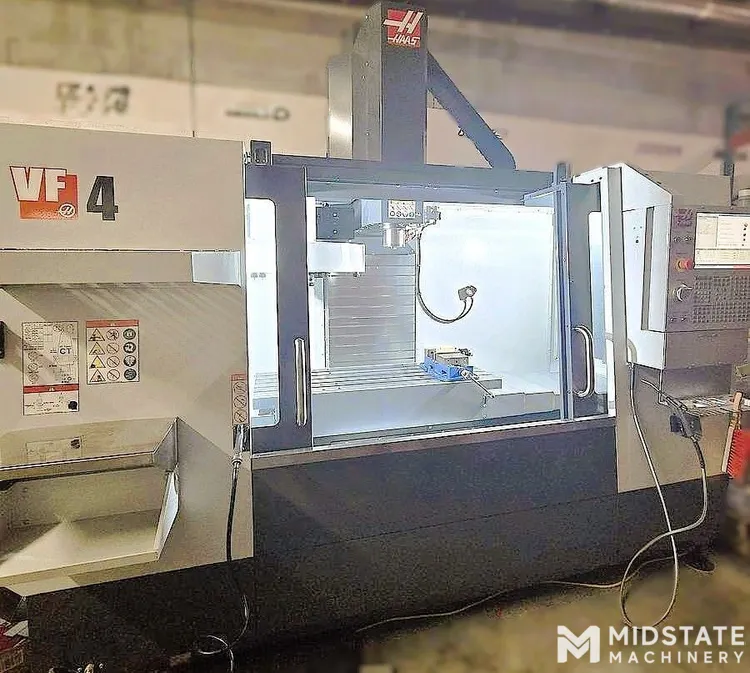

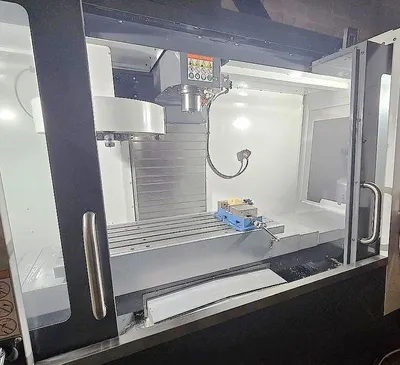

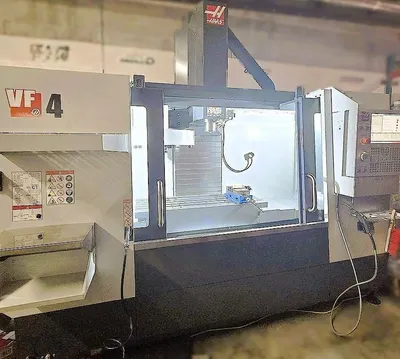

Haas VF-4 Vertical Machining Center, New in 2024. Part & Tool Probe, Thru Spindle Coolant Prepped, Auger Chip Conveyor, Rigid Tapping. Very Low Hours.
Control Haas NextGen Control
Table size 52" x 18"
Maximum Weight on Table 3,500 lbs.
X-Axis Travel 50"
Y-Axis Travel 20"
Z-Axis Travel 25"
Spindle Taper CAT #40
Spindle Speeds 0 - 8,100 RPM
Spindle Motor 30 Minutes/Continuous 30 HP / 20 HP
Spindle Nose to Table Top 4" - 29"
Number of Tool Positions 20 Station ATC
Rapid Traverse Rates 1000 IPM
Cutting Feedrates 650 IPM
Machine Dimensions 122" x 95" x 100"
Machine Weight 13,300 lbs.
Auger Style Chip Conveyor
WIPS-R Renishaw Part & Tool Probe
User Definable Macros
Spindle Orientation
Coordinate Rotation & Scaling
Visual Part Programming System
Thru the Spindle Coolant Prepped
20 Station Umbrella Style Tool Changer
1 GB Programming Memory
Rigid Tapping
Haas Drop
Safe Run
Haas Connect: Remote Monitoring
Media Display M-Code M130
Advanced Tool Management
Early Power Failure Detection Module
WiFi Connection for Haas Control
Ethernet Interface
USB Port Interface
RS232 Port Interface
Coolant System with Tank & Pump
Window Air Blast
Chip Tray Filter Kit
