2025 HE&M SAW 260 BSA
Have one to sell?
ConditionNew
New

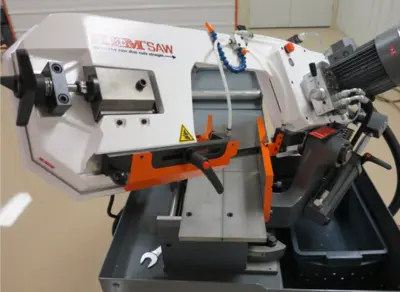

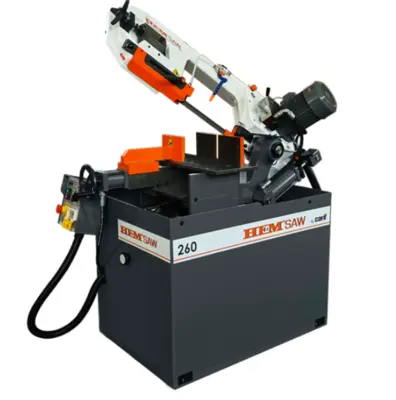

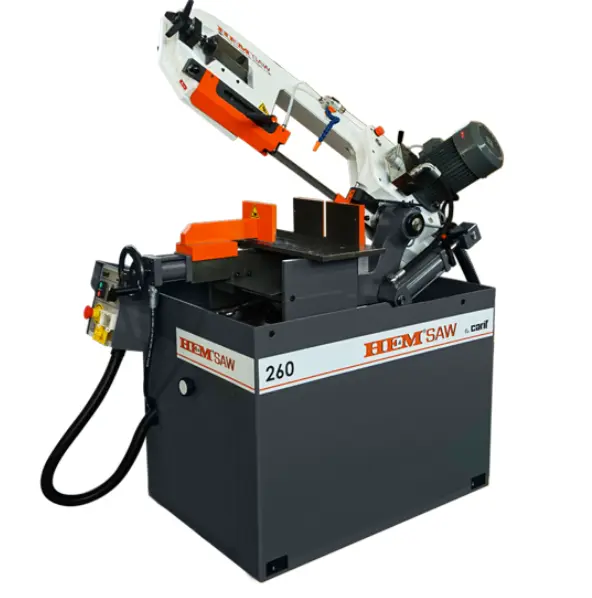

The 260 is a double-mitering band saw cutting 45ᵒin both directions, up to 60ᵒ left miter, includes an adjustable hard-stop to cut multiple same-length parts, and has a built-in flood coolant system. The control is connected with a 40” umbilical cord with two blade speeds.
Rectangular Capacity 0-10.2" W x 0-5.9" H
Square Capacity 0-5.9" (Square)
Round Capacity 0-8.7" (Diameter)
Bar-feed N/A
Motor 1.8 HP
Hydraulic Motor N/A
Operation Type Semi-Automatic
Power Source Electric
Weight 750
Blade Type Bandsaw
Blade Size 8' 0" L x 1" H x .035"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
Standard Features:
Dual 45° Miter
One-Way 60° Miter

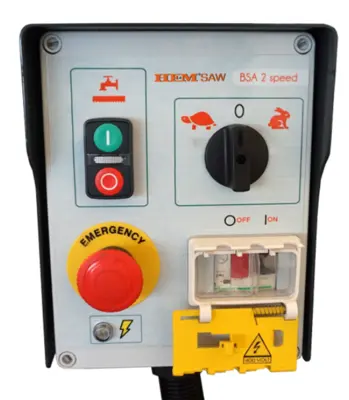

Control Console - Moveable w/ 40" Umbilical
Patented Hydraulic System
Adjustable Feed Rate & Cutting Pressure
Vise - Hydraulic Adjustable
Rugged 3/16" Steel Base
Miter Scale
Heavy-Duty Sealed Pivot Bearing Point
Full Capacity Cutting Surface
Guide Arm - Manual Adjustment
Hard-Stop Measuring Device
Emergency Stop
Large Chip Container
Coolant System - Flood
2-Speed Blade Speed
220V/3PH Electrical Motor Requirement - 6.8 Amps
Optional Features:
Inbound or Outbound Roller Tables
Roller Table Extension
