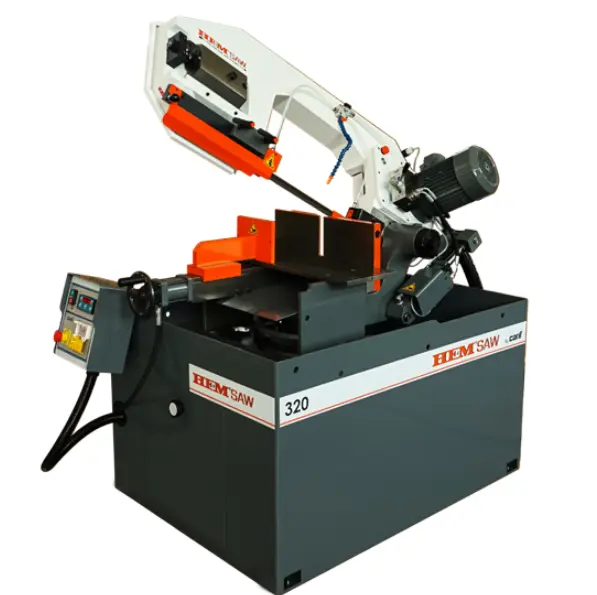

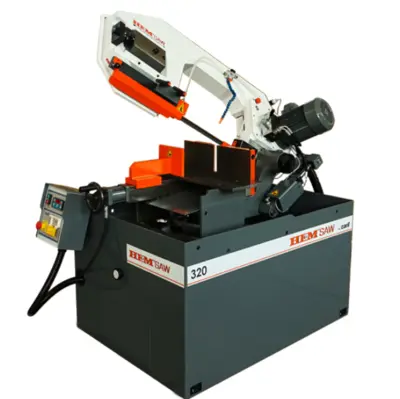

The 320 BSA is a double-mitering band saw cutting 45ᵒin both directions, up to 60ᵒ left miter. The control is connected by a 40” umbilical cord and blade speed adjusts approximately 39 to 320 SFPM. The arm height is set by pressing a button on the control.
Rectangular Capacity 0-12.6" W x 0-8.6" H
Square Capacity 0-8.6" (Square)
Round Capacity 0-10.8" (Diameter)
Bar-feed N/A
Motor 3 HP
Hydraulic Motor N/A
Operation Type Semi-Automatic
Power Source Electric
Weight 1500
Blade Type Bandsaw
Blade Size 9' 11" L x 1" H x .035"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? No
Standard Features:
Dual 45° Miter
One-Way 60° Miter
Control Console - Moveable w/ 40" Umbilical
Patented Hydraulic System
Variable Speed Motor
Adjustable Feed Rate & Cutting Pressure
Vise - Hydraulic Adjustable
Rugged 3/16" Steel Base
Miter Scale
Blade Speed & Height Set from Control Panel
Part Counter on Control Panel
Heavy-Duty Sealed Pivot Bearing Point
Full Capacity Cutting Surface
Guide Arm - Manual Adjustment
Hard-Stop Measuring Device
Emergency Stop
Coolant System - Flood
Large Chip Container
Optional Features:
Roller Table Extension
Inbound or Outbound Roller Tables
