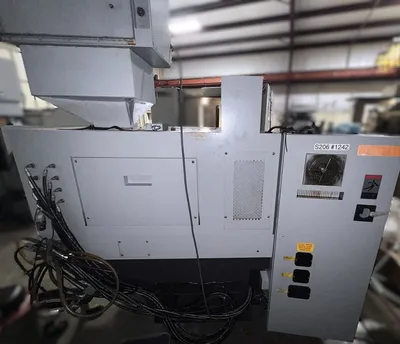

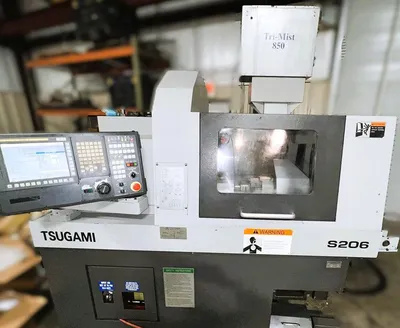

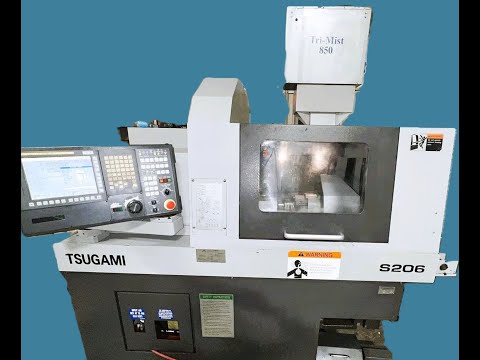

2012 TSUGAMI S206
Have one to sell?
ConditionUsed
1 available

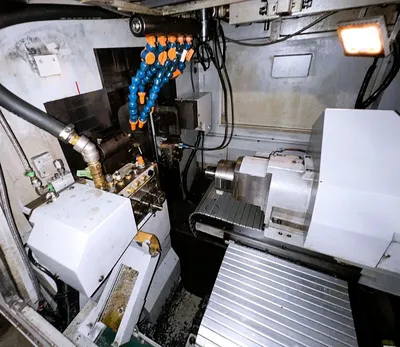

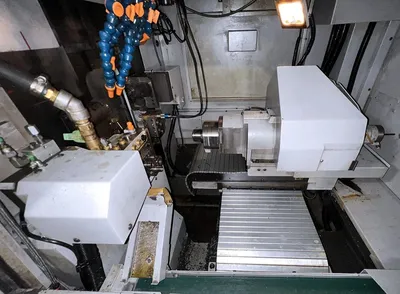

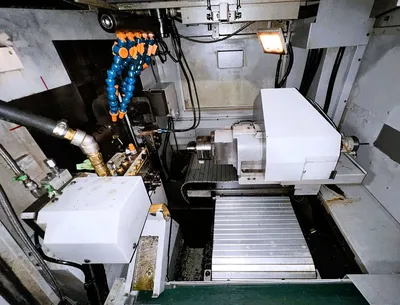

TSUGAMI S206, New in 2012. Edge Minuteman 320 SE Bar Feeder. Back Spindle. Live Tools Capable. Long Parts Capable. C & Y Axis Capabilities. Parts Catcher. Coolant Tank. Chip Conveyor. Tri-Mist Collector.
Max Turning Diameter:
0.79″ (20 mm)
Max Turning Length:
9.843″ (250 mm)
Max Turning Length with Gripping Unit:
8.26″ (210mm)
Max Bar Capacity:
0.79″ (20 mm)
Max tool positions:
25
Max. Main Spindle Drilling Diameter:
0.39″ (10 mm)
Max. Main Spindle Tapping Diameter:
M8
Max. Back Spindle Chucking Diameter:
0.79″ (20 mm)
Max. Back Spindle Drilling Diameter:
0.31″ (8 mm)
Max. Back Spindle Tapping Diameter:
M6
Max. Cross Drilling Diameter:
0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
Max. Cross Tapping Diameter:
M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter:
1.18″ (30 mm)
Max. Tool Spindle Drilling Diameter:
.314″ (8 mm)
Max. Back Tapping Diameter:
M5
Main Spindle Indexing:
360° (Full C-Axis)
Main Spindle Bore:
.79″ (20 mm)
Main Spindle Speed:
10000 RPM
Back Spindle Motor:
3.7 kw
Back Spindle Indexing:
60° (Full C-Axis)
Back Spindle Speed:
2000 RPM
Cross Turn Stations:
8
Cross Drill Stations:
3
Main/Sub Drill Stations:
5
Sub Drilling Stations::
4
Live cross mill stations:
2
Live sub milling stations:
4
Driven Tool Speed:
8000 RPM
DRIVEN TOOL MOTOR:
75 kw (Front Tool Post) 1 kw (Rear Tool Post)
MACHINE EQUIPPED WITH

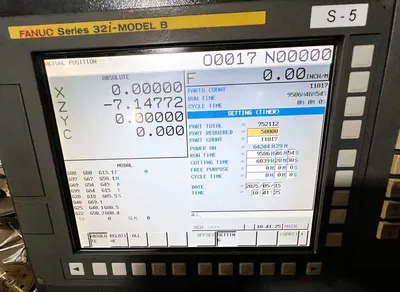

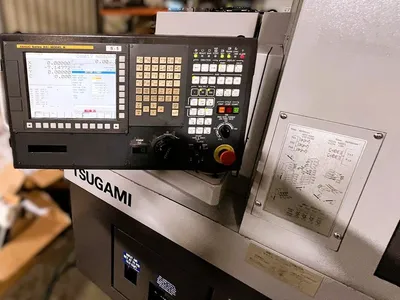

Fanuc 32i-MB CNC Control
Controlled Axes (Liner Axes) X1/ X2/ Y1/ Y2/ Z1/ Z2

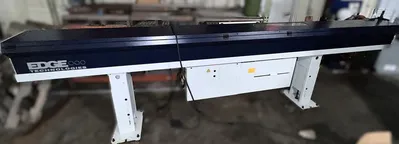

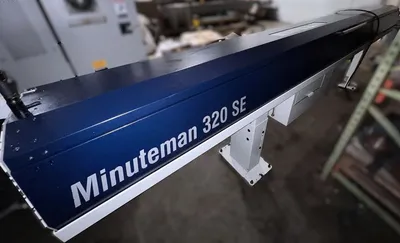

Edge Minuteman 320 SE Bar Feeder

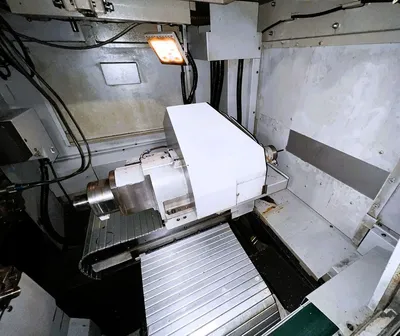

Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Part Catcher
Coolant Tank
Chip Conveyor
