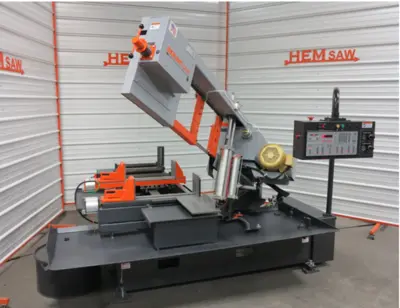

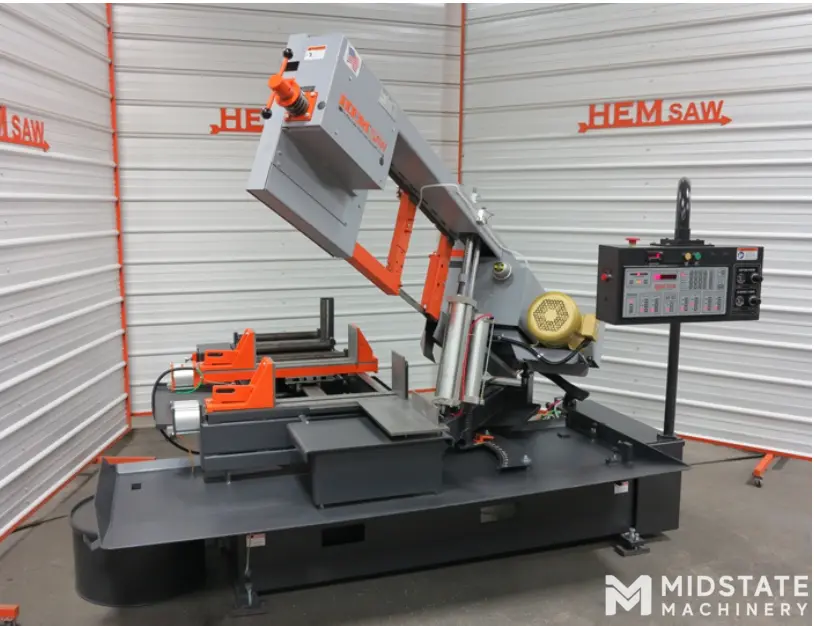

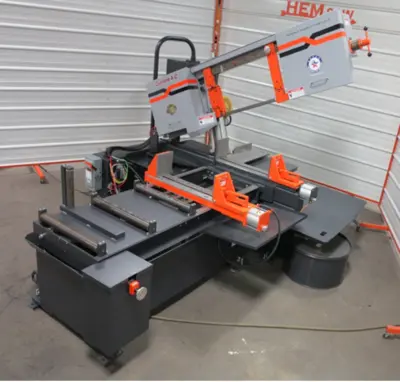

2025 HE&M SAW CYCLONE A-C
Have one to sell?
ConditionNew
New
The Cyclone A-C multiple indexes with a 24” bar-feed, saves up to 99 jobs, sawing one job or multiple jobs of differing lengths and quantities in sequence. Each job includes job number, part length and quantity and can miter up to 45ᵒ in one direction cutting solids or shapes.
Rectangular Capacity 0-22" W x 0-16" H
Square Capacity
Round Capacity
Bar-feed 0-24" (Stroke Air - Multiple Index)
Motor 7.5 HP
Hydraulic Motor N/A
Operation Type Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 16' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:

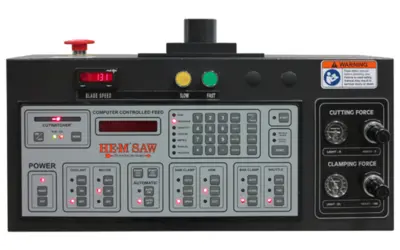

Easy View Console - All Function Control
Computer Controlled Feed System
18" Discharge Support
Vise - Adjustable Main & Feed
Adjustable Clamping Force
2 Hold Down Fixtures
Vertical Alignment Bar on Bar-Feed
Guide Arm - Manual Adjustment
Passive "Cut Watcher®" System
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features:
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Vise - 3rd on Feed
Full Width Discharge Plate
60° Miter Capability (Manual Cut Only)
Light Clamping Pressure
Laser Light System
Air Powered Blade Tension
Spray Mist Lubrication
Single-Phase Voltage
5' Idle Roller Stock Table
10' Idle Roller Stock Table
