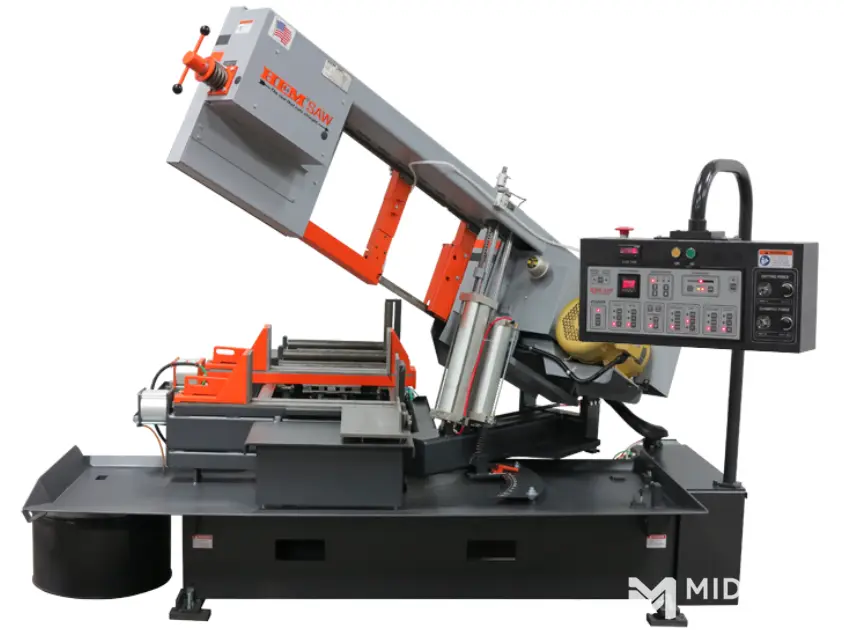

2025 HE&M SAW CYCLONE A-4
Have one to sell?
ConditionNew
New
The Cyclone A-4 makes cutting 45ᵒ miter cuts in one direction perfect for cutting small solids and shapes. With a 24” indexing bar-feed and up to 4 indexes, cutting multiple parts in longer than 24” in automatic mode is possible. A variety of options are also available.
Rectangular Capacity 0-22" W x 0-16" H
Square Capacity
Round Capacity
Bar-feed 0-24" (Stroke Air - 4 Index)
Motor 7.5 HP
Hydraulic Motor N/A
Operation Type Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 16' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:
Easy View Console - All Function Control
18" Discharge Support
Vise - Adjustable Main & Feed
Adjustable Clamping Force
2 Hold Down Fixtures
Vertical Alignment Bar on Bar-Feed
Guide Arm - Manual Adjustment
Passive "Cut Watcher®" System
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features:
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Full Width Discharge Plate
Vise - 3rd on Feed
60° Miter Capability (Manual Cut Only)
Laser Light System
Powered Blade Tension
Light Clamping Pressure
Spray Mist Lubrication
5' Idle Roller Stock Table
Single-Phase Voltage
10' Idle Roller Stock Table
