2025 HE&M SAW CYCLONE M
Have one to sell?
ConditionNew
New

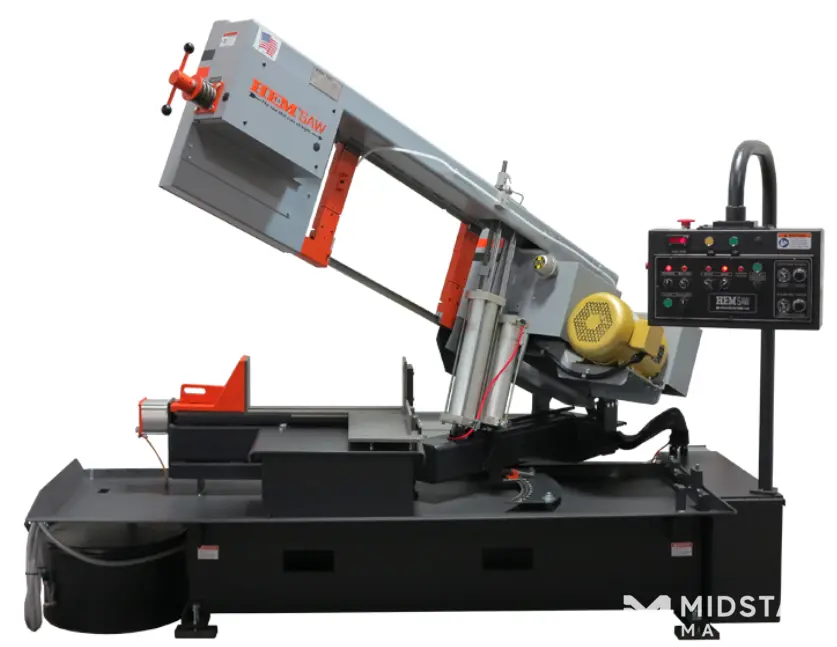

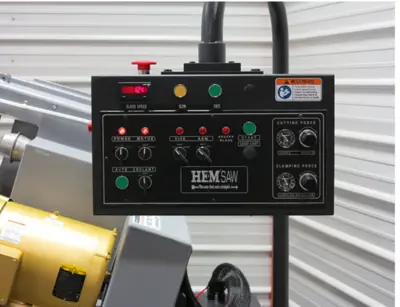

The Cyclone M miters to 60ᵒ one direction, is ideal for cutting solids and structural shapes with a 1¼” blade and 7½ HP motor. The control console, mounted on a swing arm, allows semi-automatic sawing and adjustment of Cutting Force, Adjustable Clamping Pressure, and push button Blade Speed.
Rectangular Capacity 0-22" W x 0-16" H
Square Capacity
Round Capacity
Bar-feed N/A
Motor 7.5 HP
Hydraulic Motor N/A
Operation Type Semi-Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 16' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:
Easy View Console - Semi-Automatic Control
18" Discharge Support
Vise - Adjustable Main
Adjustable Clamping Force
Hold Down Fixture
Guide Arm - Manual Adjustment
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features:
Top Clamp - Reduced Capacity Main Vise
24" Roller Load Table
Full Width Discharge Plate
Laser Light System
Air Powered Blade Tension
Light Clamping Pressure
Spray Mist Lubrication
5' Idle Roller Stock Table
10' Idle Roller Stock Table
Single-Phase Voltage
