2026 HE&M SAW H130M
Have one to sell?
ConditionNew
New

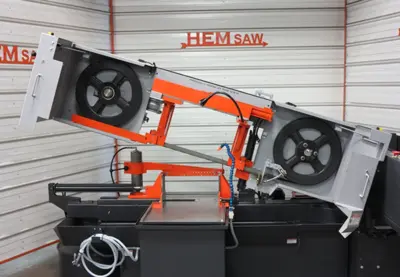

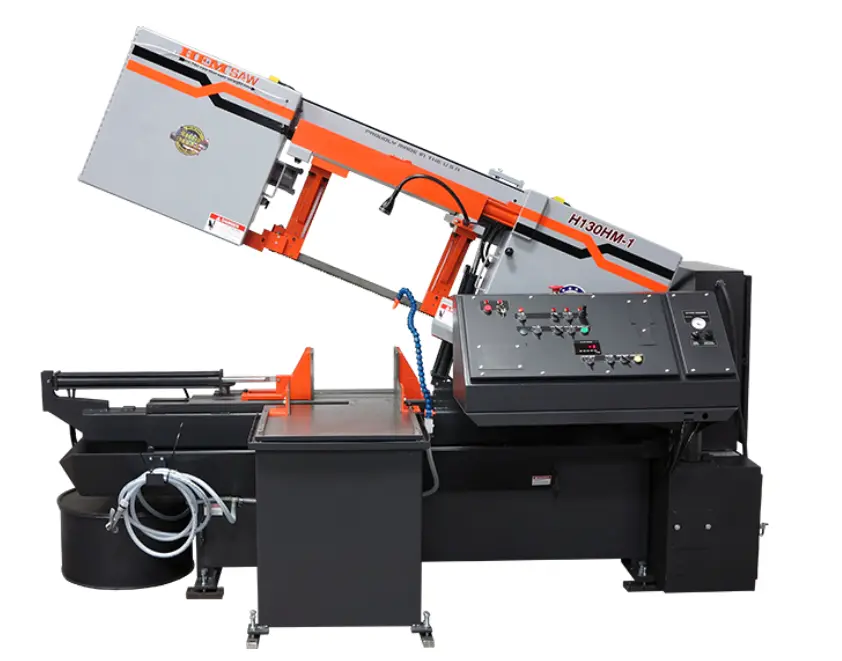

The H130M is a rugged band saw and cuts using a 1½” blade driven by a 10 HP motor. A 2 HP hydraulic motor powers the adjustable pressure full-stroking vise, the powered guide arm, and powered blade tension. Many options are also available.
Rectangular Capacity 0-19" W x 0-10" H
Square Capacity 0-16" (Square)
Round Capacity 0-16" (Diameter)
Bar-feed N/A
Motor 10 HP
Hydraulic Motor 2 HP
Operation Type Semi-Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 17' 0" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:
Swing-Away Control Console w/ 7" Touch Screen
24" Solid Discharge Table - Bolts to Saw
Vise - Full Stroking Main
Adjustable Clamping Force
Carbide Blade Guides
Roller Guides - Entry & Exit
Guide Arm - Powered
Variable Blade Speed w/ Readout on Touch Screen
Powered Blade Tension
Adjustable Feed Rate

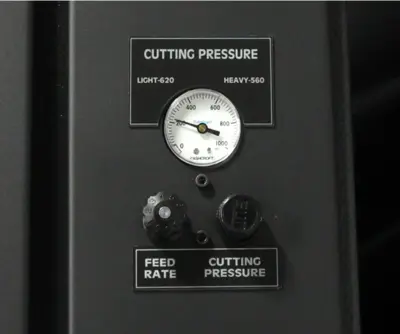

Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Two-Hand Operation Controls
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
Optional Features:
Top Clamp - Full Capacity Main Vise
Vise - Outboard Powered on Discharge
Passive "Cut Watcher®" System
Laser Light System
Chip/Swarf Removal System - Chip Auger
Pedestal Mounted Control Console
Roll-Around Control Console
Spray Mist Lubrication
Cold Weather Package
Hydraulic Tank Heater
5' Idle Roller Stock Table
10' Idle Roller Stock Table
