2025 HE&M Saw H105A-4
Have one to sell?
ConditionNew
New

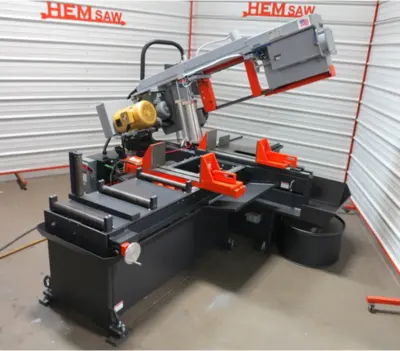

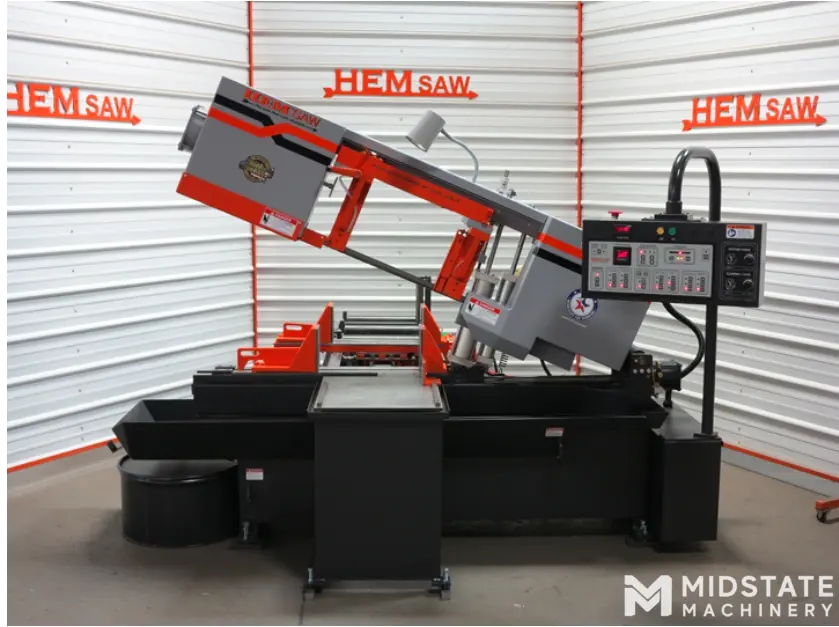

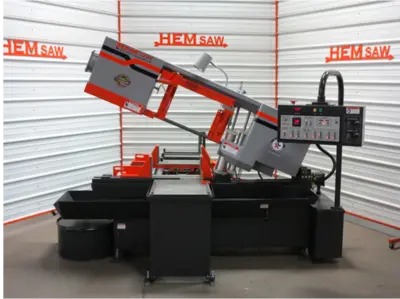

HE&M Saw H105A-4 Horizontal Pivot Band Saw, New in 2025. The H105A-4 model includes a 7½ HP motor and a 1¼” blade with a 24” stroke bar-feed that will index up to 4 times cutting up to 999 parts of the same length. This scissor style saw is perfect for cutting small solids and shapes.
Rectangular Capacity 0-16" W x 0-14" H
Square Capacity 0-14" (Square)
Round Capacity 0-14" (Diameter)
Bar-feed 0-24" (Stroke Air - 4 Index)
Motor 7.5 HP
Hydraulic Motor N/A
Operation Type Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 15' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:

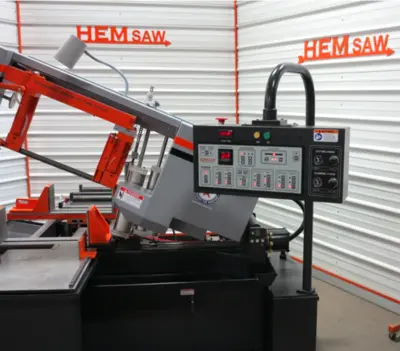

Easy View Console - All Function Control
24" Solid Discharge Table - Bolts to Saw
Vise - Adjustable Main & Feed
Adjustable Clamping Force
Vertical Alignment Roller on Bar-Feed
2 Hold Down Fixtures
Manual Adjustable Guide Arm
Passive "Cut Watcher®" System
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features:
Top Clamp - Reduced Capacity Main Vise
Top Clamp - Reduced Capacity Feed Vise
Vise - 3rd on Feed
Vise - Outboard Powered on Discharge
Interlocking Vise Jaws
Chip/Swarf Removal System - Chip Auger
Light Clamping Pressure
Air Powered Blade Tension
Spray Mist Lubrication
Single-Phase Voltage
5' Idle Roller Stock Table
10' Idle Roller Stock Table
