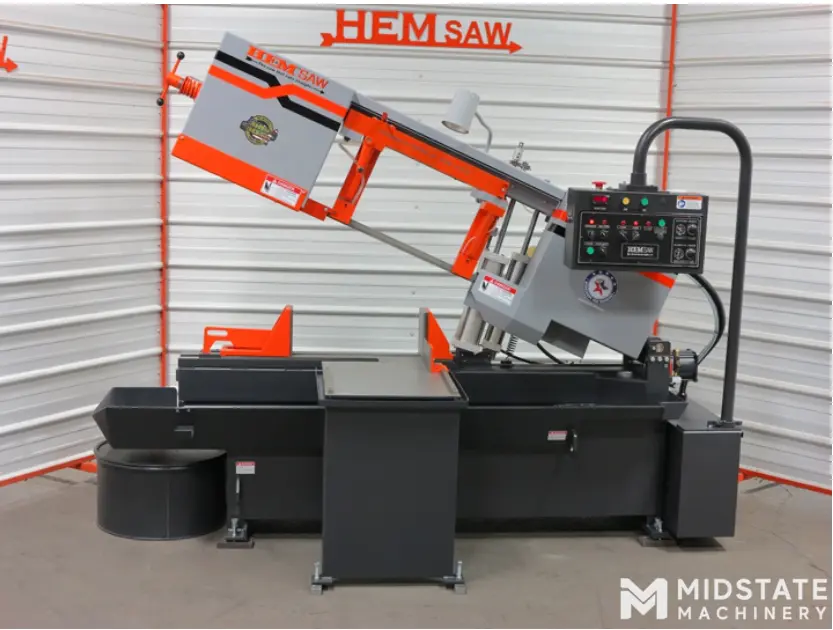

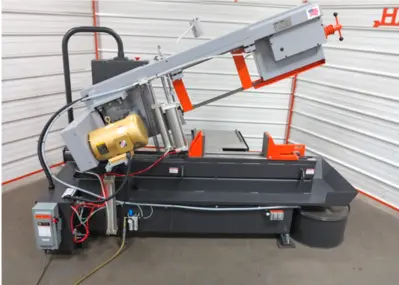

HE&M H105M Horizontal Pivot Band Saw, New in 2025. The H105M model includes a 7½ HP motor and a 1¼” blade and will produce straight cuts fast. This saw is perfect for cutting solids and structural shapes. Adjustable clamping pressure and accurate arm control for straight cuts and long blade life.
Rectangular Capacity 0-16" W x 0-14" H
Square Capacity 0-14" (Square)
Round Capacity 0-14" (Diameter)
Bar-feed N/A
Motor 7.5 HP
Hydraulic Motor N/A
Operation Type Semi-Automatic
Power Source Air
Weight N/A
Blade Type Bandsaw
Blade Size 15' 0" L x 1.25" H x .042"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes
Standard Features:
Easy View Console - Semi-Automatic Control
24" Solid Discharge Table - Bolts to Saw
Vise - Adjustable Main
Adjustable Clamping Force
Hold Down Fixture
Guide Arm - Manual Adjustment
Variable Blade Speed w/ LED Readout
Carbide Blade Guides
Manual Blade Tension
Adjustable Feed Rate
Adjustable Cutting Pressure
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine
85 PSI, 4-6 CFM Minimum Air Requirement (Equipped w/ Air Filter/Lubricator)
Optional Features:
Top Clamp - Reduced Capacity Main Vise
Vise - Outboard Powered on Discharge
Chip/Swarf Removal System - Chip Auger
Passive "Cut Watcher®" System
Light Clamping Pressure
Air Powered Blade Tension
Spray Mist Lubrication
Single-Phase Voltage
5' Idle Roller Stock Table
10' Idle Roller Stock Table
