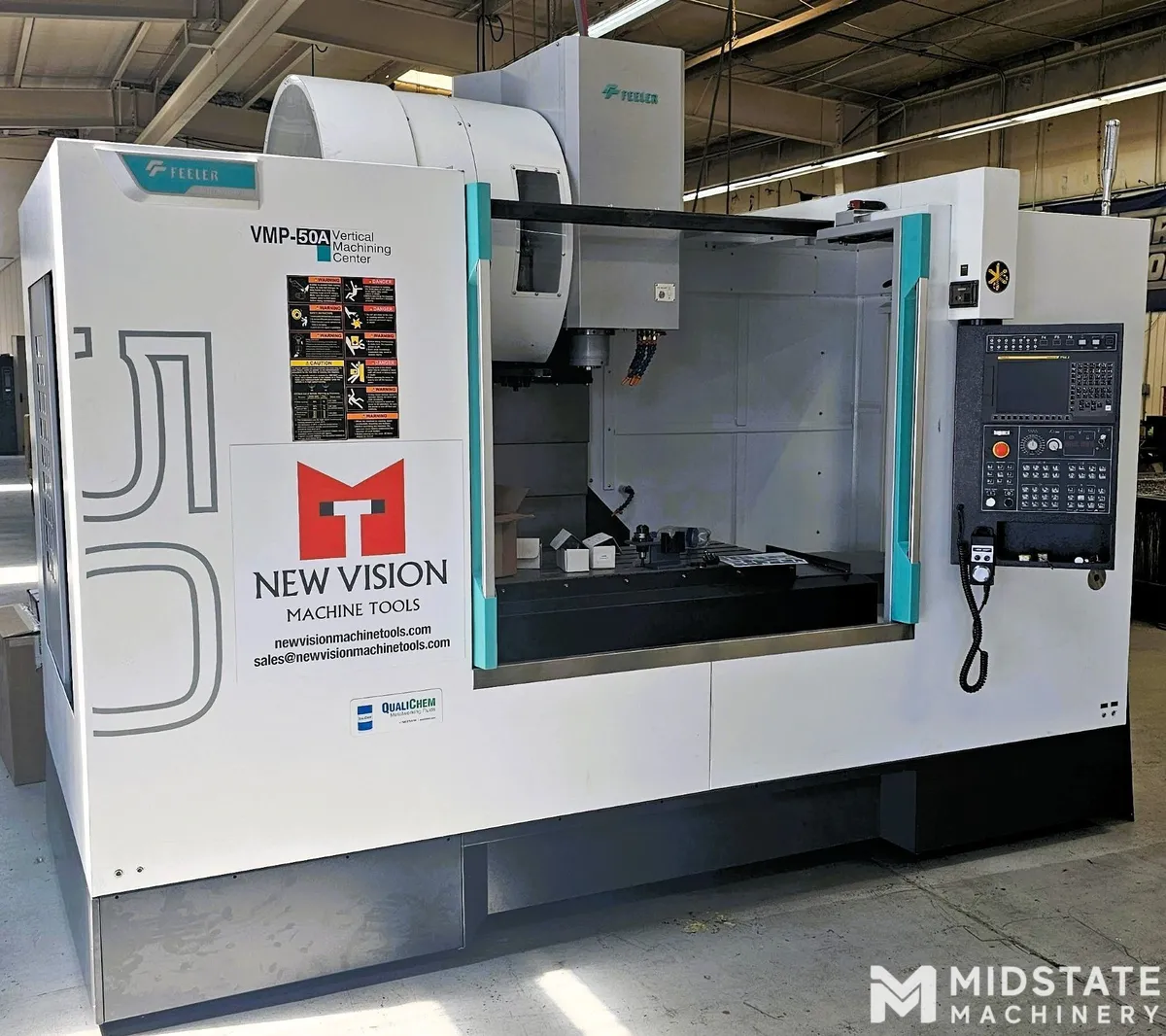

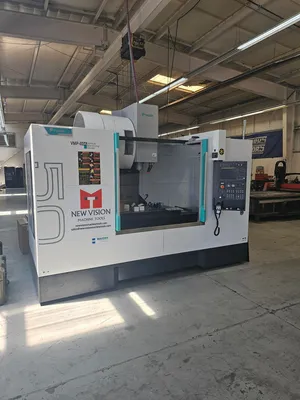

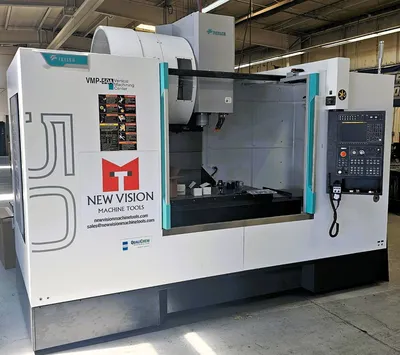

Feeler Model VMP-50A CNC Vertical Machining Center, New in 2022
Have one to sell?
ConditionUsed
1 available
Feeler Model VMP-50A CNC Vertical Machining Center, New in 2022. VERY LOW HOURS
X axis travel 1,300mm (51.2”)]
Y axis travel 610 mm (24”)
Z axis travel 600 mm (23.6”)
Spindle nose to table surface 120~720 mm (4.7” ~28.3”)
Column surface to table center 660 mm (26”)
TABLE
Table size 1,420 x 600 mm (55.9” x 23.6”)
Loading capacity (lbs.) 1,500 kg (3,300 lbs.)
Dimensions of T-Slots 18H8 x p100 x 5ea
****Approx 70ish run hours****
• Fanuc 0i-MF controller
• 10.4” LCD monitor
• Manual Guide i
• Spindle
- CAT #40 (BIG PLUS)
- 10,000 rpm belt driven
- Powerful 25 HP (18.5 kW) S3-60%
• Table
- 55.9” (1,420mm) x 23.6” (600mm)
- 3,300lbs. (1,500kg) load capacity
• ATC 30 Tools
• X / Y Liner guide and Z axis box guide ways
• 435 PSI Coolant Through Spindle preparation with rotary unit.
• Oil Skimmer
• Dual Y-Axis Augers
• Coolant gun
• (8) Extra M-code
• 4th axis interface preparation
• Max. 200 Block Look-ahead
• AICC II, Smooth Tolerance Control, Jerk Control
• Auto power off
• Chip Conveyor
• 3 color tower signal light
• Fast 36m/mim (1,417 IPM) X, Y and 24m/mim (945 IPM) Z rapid traverse
Fully Enclosed with Roof
Chip Conveyor
CTS 435 PSI Prep with Rotary Union
Rear Side Chip Flush with Coolant Gun
3 Color Light
Oil Skimmer
8 M-Codes
Auto Power Off
Manuals
**includes prep and loaded on a truck
