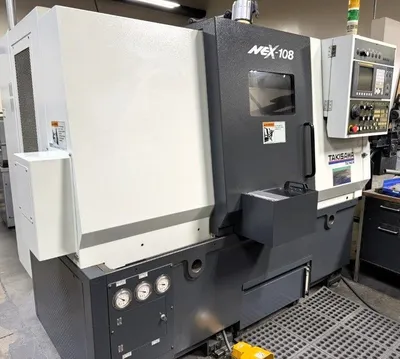

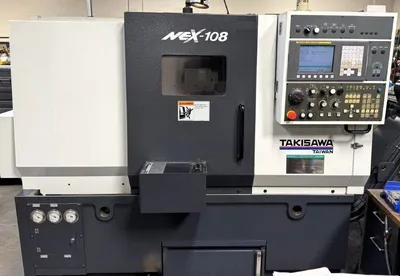

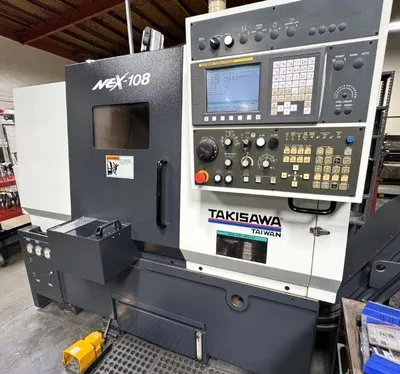

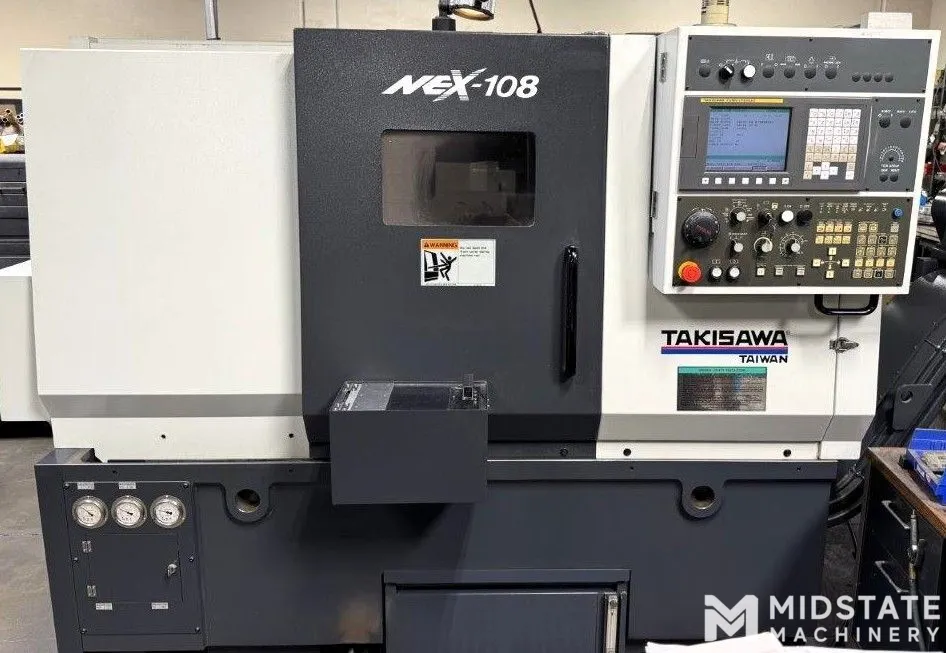

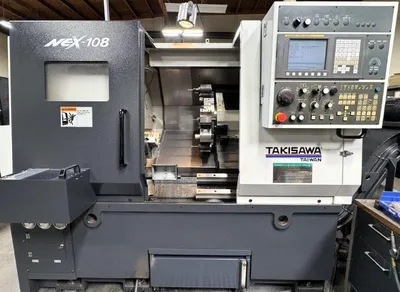

2015 Takisawa NEX-108
Have one to sell?
ConditionUsed
1 available
Takisawa NEX-108, New in 2015.
CHUCK 8”
BAR 2.5”
SPINDLE SPEEDS 30 - 4,000 RPM
SPINDLE NOSE A2-6
SWING OVER BED 15.75”
DISTANCE Between CENTERS 25.5”
MAXIMUM TURNING DIAMETER 12.6”
MAXIMUM TURNING LENGTH 18.9”
SPINDLE MOTOR 15 HP

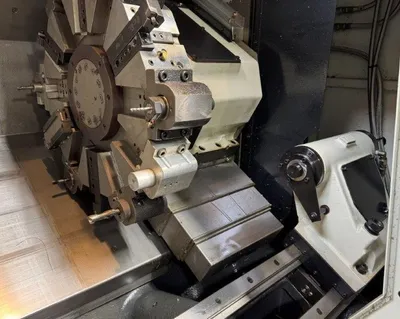

TURRET 12 STATION SERVO
X-Z RAPIDS 945 IPM
WEIGHT 9,480 lbs.
FOOTPRINT 86” x 65”

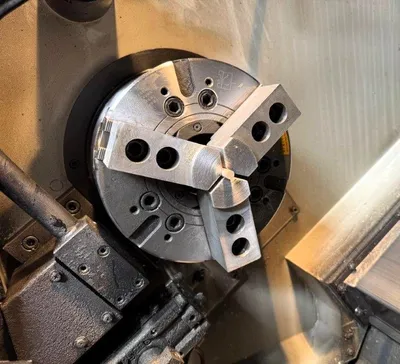

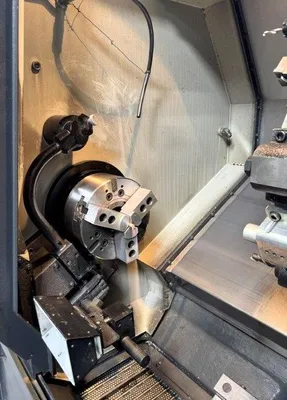

· 8” 3-JAW POWER CHUCK / 2.5” Bar Capacity
· AUTOMATIC TOOL SETTER ARM
· PARTS CATCHER

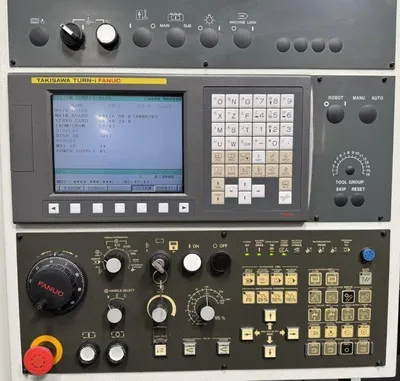

· FANUC Oi-TD CNC Control
· 12 Station High Speed Servo Turret / 1” Square Tools / 1.5” Boring Bar
· TAILSTOCK 4MT
· SYNCHRONIZED TAPPING
· HALOGEN WORK LIGHT
· BAR FEED INTERFACE
· TRIPLE LAMP COMPETION LIGHT

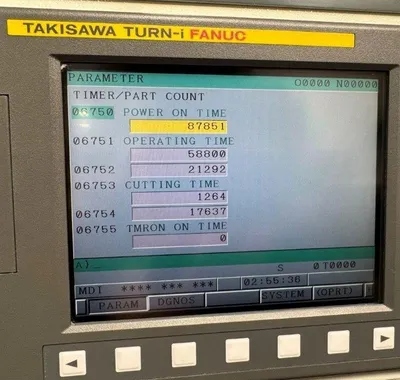

· Hours: Power On 1,464 / Operating 1334 / Cutting 315
