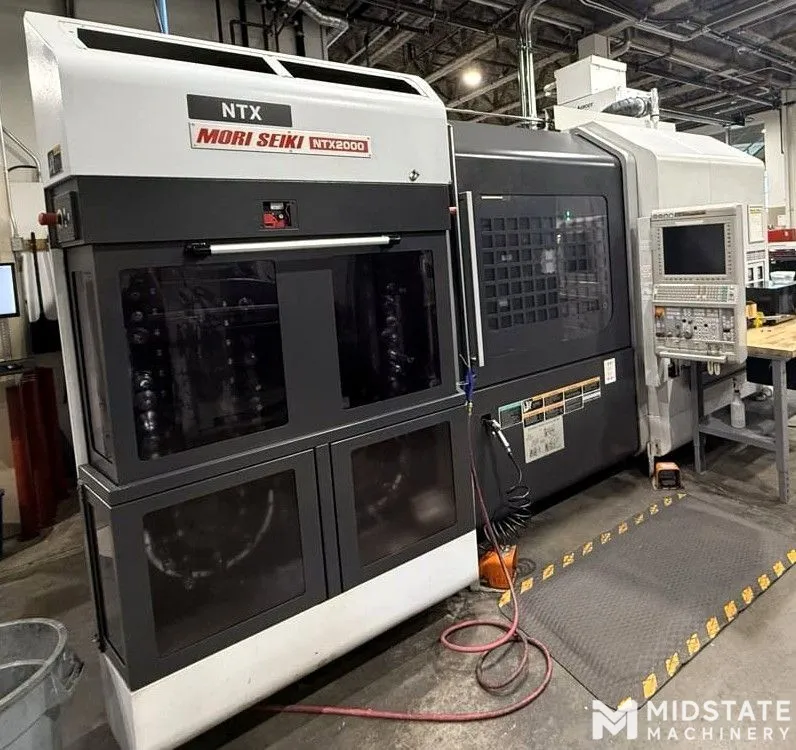

2011 Mori Seiki NTX2000/ 1500SZ
Have one to sell?
ConditionUsed
1 available

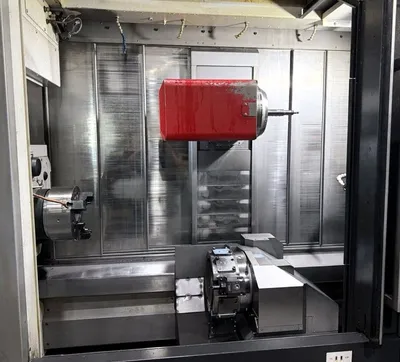

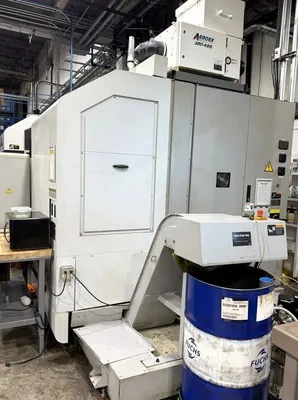

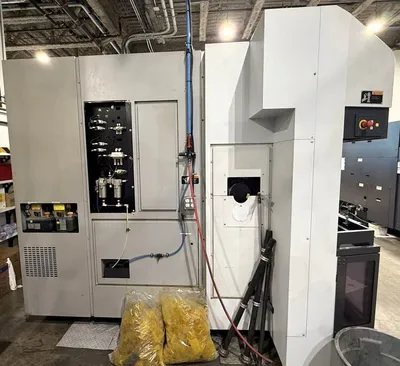

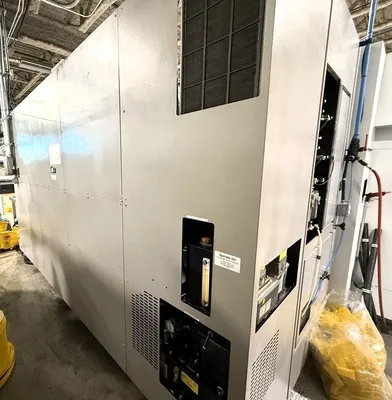

Mori Seiki NTX2000/ 1500SZ, New in 2011. High Pressure Coolant, Direct Drive Motor, Lower Turret, Sub Spindle.

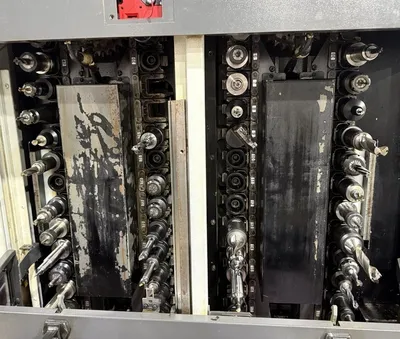

Tool Magazine
Number of tools: 76
Tool Holder: Capto C6
Maximum tool length: 15.7”
Maximum tool diameter: 5.1”
Maximum tool weight: 17.6 lbs
Axes Travel:
X-axis: 26.6”
Y-axis: ±5.9”
Z-axis: 61.5”
B-axis: ±120º
Rapid Traverse Rate:
X-axis: 1,575”/min
Y-axis: 1,575”min
Z-axis: 1,575”min
Spindle Speed:
Main spindle: 5,000 rpm (22/18.5 kw)
Spindle Bore: 2.9”

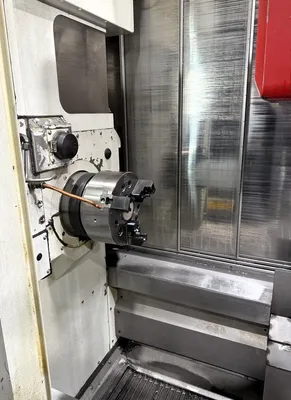

Chuck Size: 10″

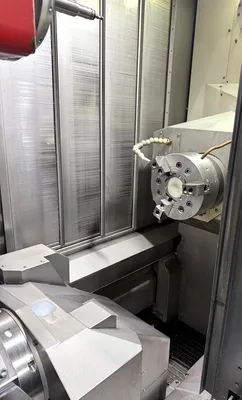

Sub Spindle- 5,000 rpm (22/18.5 kw)
Sub Spindle Chuck Size: 10″
Machine Dimensions:
Width: 157.5”
Depth: 98.4”
Height: 106.3”
Weight: Approximately 33,000 lbs

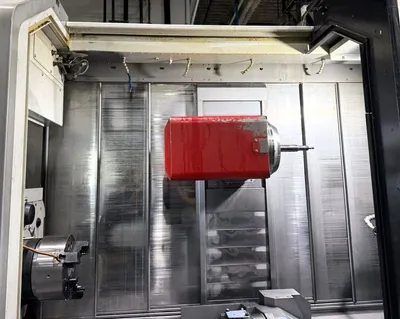

12,000 RPM B-Axis Milling Head
Lower Turret (10 Station)
High Pressure Coolant
Thru Spindle coolant
Automatic Door
DDM (Direct Drive Motor)
ORC (Octagonal Ram Construction)
BMT (Built-in Motor Turret)

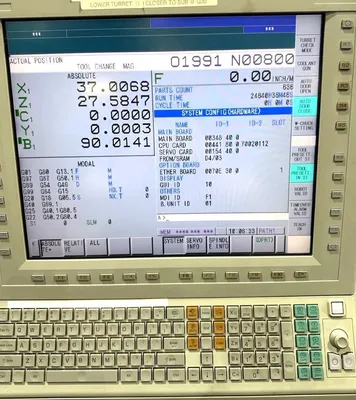

MAPPS IV + ESPRIT Control System
Tool Spindle
Three-Point Support Structure
Thermal Displacement Measures
Coolant Gun
Bar Feed Interface
Simultaneous 5-axis Control
Tool Center Point Control
Workpiece Setting Error Compensation
ATA Flash Memory Card
