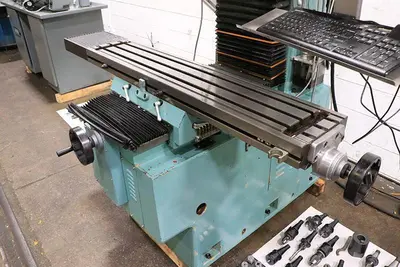

Southwestern Industries PROTO-TRAK 3-AXIS CNC BED MILL
Have one to sell?
ConditionUsed
1 available
SOUTHWESTERN INDUSTRIES
PROTO-TRAK 3-AXIS CNC BED MILL
MODEL: SPORT B3, S/N: 014BG10981UP
RECONDITIONED & RETROFITTED in 2022
W/ProtoTRAK KMX Control
TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 30"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0 - 24"
SPINDLE CENTER TO COLUMN FACE ..... 19"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
PROGRAMMABLE SPINDLE SPEED RANGE .. 70 - 4200 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS
SOUTHWESTERN INDUSTRIES / PROTO-TRAK KMX THREE AXIS CONTROL
THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
HELICAL, CANNED CYCLES, GRAPHICS & MUCH MORE
IN MANUAL MODE 3-AXIS DRO, NETWORKING & DNC
QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
TORQUE-RITE POWER DRAW BAR
COOLANT SYSTEM
AUTOMATIC LUBRICATION SYSTEM
5 HORSE POWER SPINDLE MOTOR
TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL.
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
