NIIGATA HN80C Horizontal Machining Center
Have one to sell?
ConditionUsed
1 available

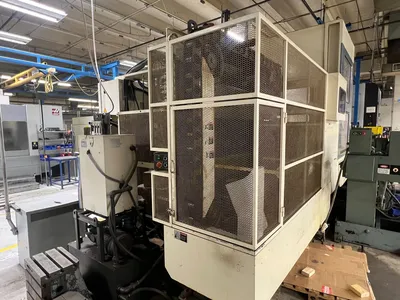

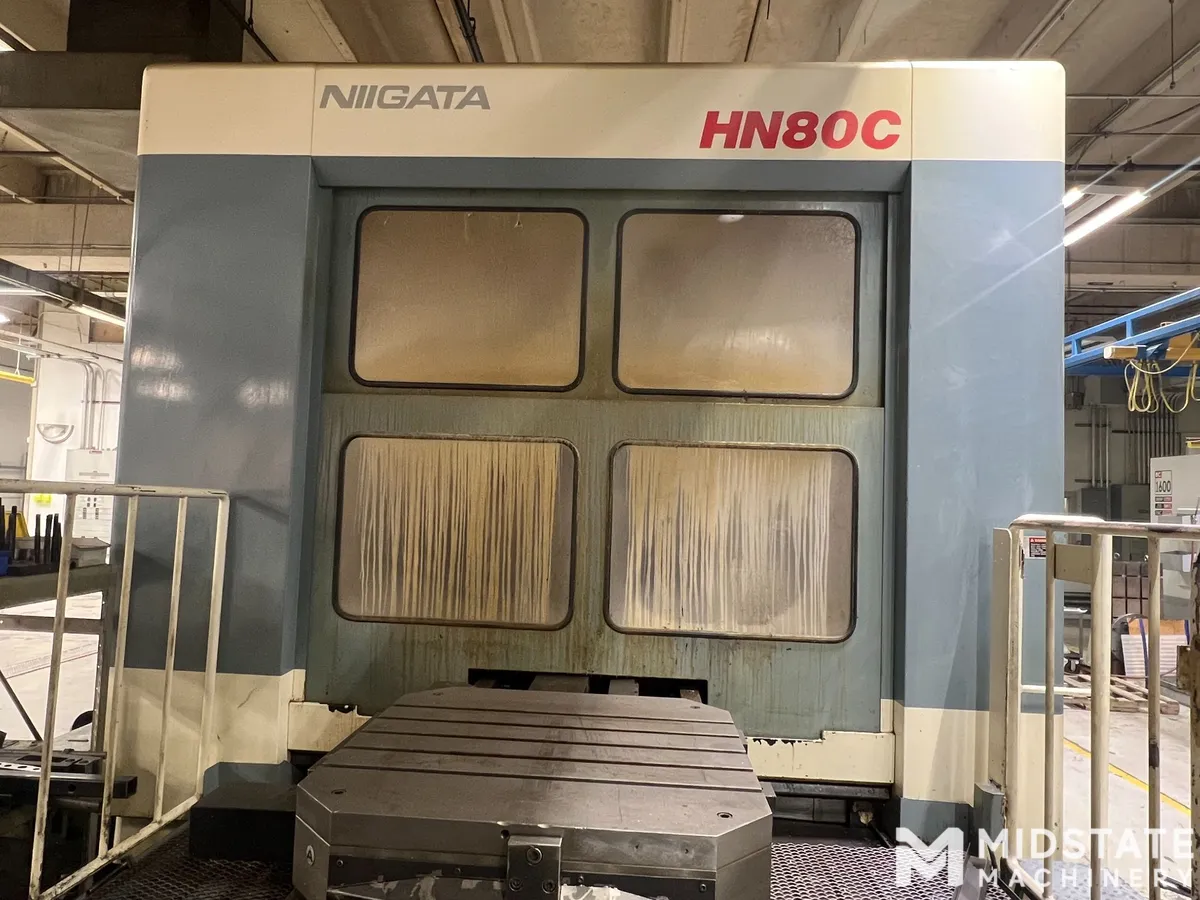

NIIGATA HN80C Horizontal Machining Center
* Hydraulic lines to spindle need to be repaired.
Control: Fanuc 18iM
Pallet Size(2) 31.5″ x 31.5″
Max Pallet Load :3,310 Lbs
X Travel……..:60.2″
Y Travel……..:48.0″
Z Travel……..:36.2″
Taper………..: CAT #50 Taper
Pallet Top to Spindle Center 0 – 48″
Pallet Center to Spindle Nose 7.9″ – 52″
Max Part Swing Diameter / with pallet door oopen 68.9″ / 78″
Rapid Traverse Rate: 709 IPM XYZ
Table Indexing: .001 Degree
Spindle Drive Motor: 40 HP A.C.
Spindle Speeds: 4500 RPM
Auto Tool Change Capacity: 40 ATC
Max Tool Length: 21.7″
Max Tool Diameter: 4.7-9.1″
Max Tool Weight: 66 Lbs
