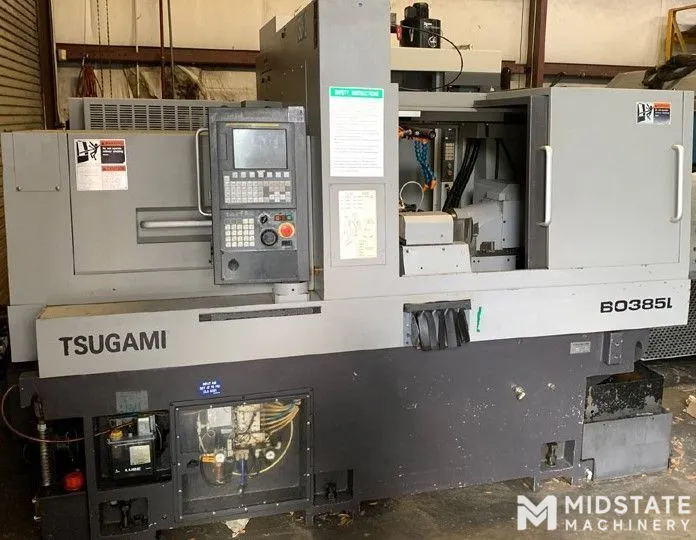

2012 Tsugami B0385L
Have one to sell?
ConditionUsed
1 available
CNC “Swiss-Style” Precision Chucker Automatic Lathe, New in 2012
Machine Capacity, Machining Range
Max. Working Barstock Diameter 38 mm
Max. Machining Length 100mm
Max. Main Spindle Drilling Diameter 13 mm
Max Main Spindle Tapping Diameter M12
Max. Back Spindle Chucking Dia. 38 mm
Max Back Spindle Drilling Diameter 12 mm
Max Back Spindle Tapping Diameter M12
Max Cross Drilling Diameter 10 mm
Max Cross Tapping Diameter M8
Max Tool Spindle Slotting Cutter Dia. 45 mm
Machine Main Spindle Speed 200 to 6000 RPM
Back Spindle Speed 200 to 7000 RPM
Tool Spindle Speed 200 to 5000 RPM
Total Tool Storage Capacity (Standard) 20
Tool Size 20mm x 20mm x 125mm
Rapid Traverse Rate 45 m/min (X1, Y1) Z1: 24m/min (X2: 32m/min)
Controlled Axes (linear axes) 5-axis
Motors Main Spindle 10 / 15 HP
Back Spindle 5 / 7.5 HP
Cross Drill 1.5 H
Fanuc Series Oi-TD CNC Control
Fire Suppression
Edge Patriot 338 Bar Feeder
Main & Sub Spindle Collet Type Chuck Units
All Available Static and Live Tool Holders
MP Systems High Pressure Coolant Pump
Tri-Mist 850 Mist Collector
Parts Catcher
Sub Side Driven Spindle Tool Post
All Available Manuals
**Lathe and barfeed are currently equipped to run 32mm bar stock but capable of running up to max 38mm. Lathe would require the removal of the spindle liner and addition of the 38mm collet. Barfeed would require the addition of a 38mm channel guide and pushers.
(Guide Bush-less Spindle)
