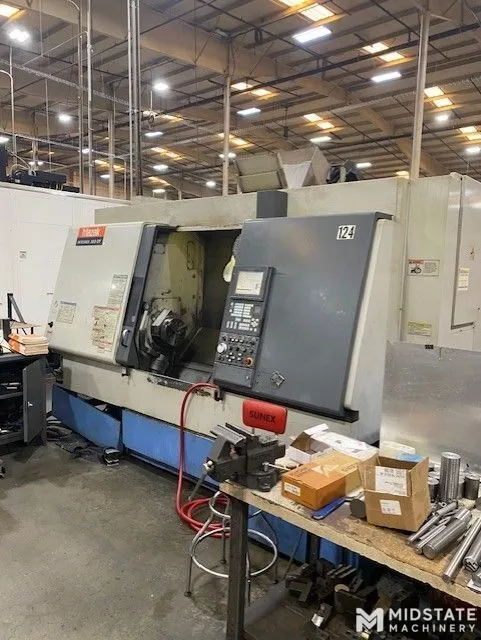

Mazak Integrex 300-2y CNC Lathe, new in 2001
Have one to sell?
ConditionUsed
1 available
Max Swing 24.01"
Max Swing Over Carriage 15.35"
Machining Length 60"
# Axis 5
Chuck Size 12"
Bar Capacity 3"
Through Spindle Hole 3.46"
Power 20 hp
Max RPM 3,000 RPM
RPM (Milling Spindle) 10,000 RPM
X-Axis Travel 22.83"
Y-Axis Travel 4.13 "
C-Axis Rotation 360°
Z-Axis Travel 60"
Spindle Nose A2-8
Tailstock Yes
Live Tooling Yes
Sub Spindle No
Rapid Traverse (X/Z) 1,181 in/min.
Rapid Traverse (Y) 590 in/min.
ATC Positions 40
Control CNC (Mazatrol Fusion 640MT)
Dimensions 143" X 89" X 106"
Weight 20,977 lb
