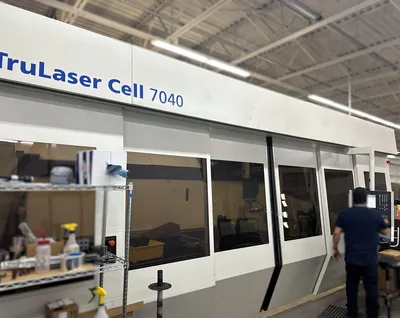

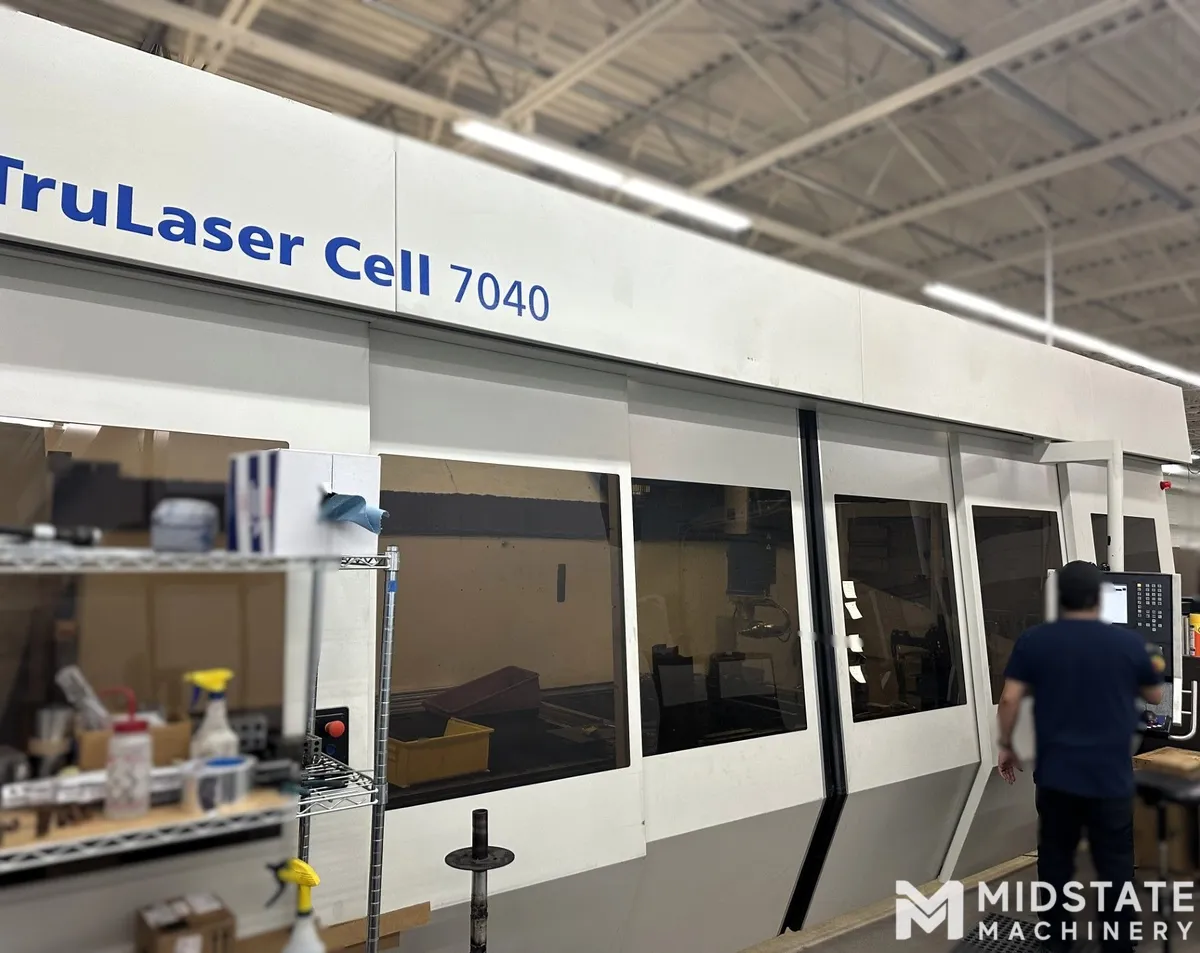

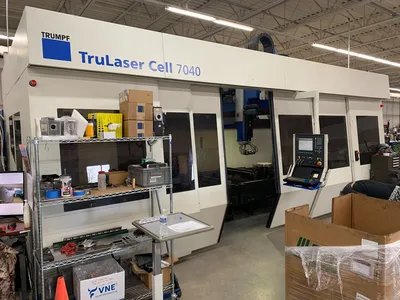

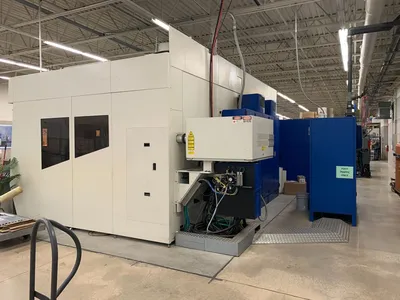

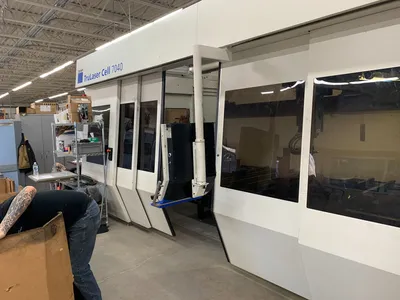

Trumpf Trulaser Cell 7040, New in 2007
Have one to sell?
ConditionUsed
1 available
With the TruLaser Cell Series 7040 laser system you have everything you need – regardless of whether you want to process two or three-dimensional components or tubes. You can change flexibly between cutting, welding and laser metal deposition. The modular setup of the machine, as well as the option of individual adjustment and retrofitting, enable you to optimally customize the TruLaser Cell Series 7040 to a modified production environment and to react to changing customer requirements with flexibil
X=157" / 4000 Mm, Y=78" / 2000 Mm, Z = 29.5"/ 750 Mm
B = ± 120°; C = N X 360°

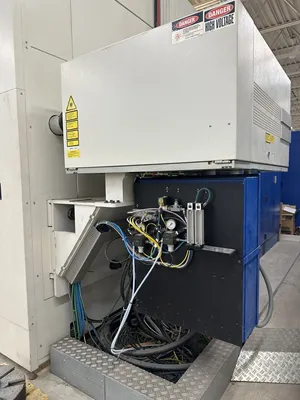

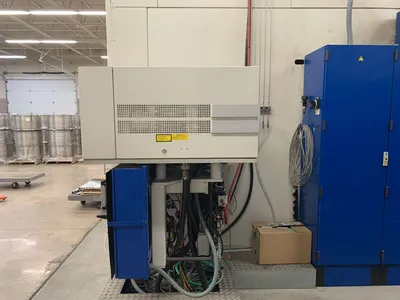

Co2 Laser: Truflow 2000 With Maintenance Free Radial Turbine Blower, Mirror
Telescope, Chiller, Positioning Laser Diode
Laser Power Control, Laser Cycles, Logbook Function
Beam Delivery: Water-Cooled Bending Mirrors And Focus Diameter Consistency In
The Working Range
Focusline
Processing Head Identification And Magnetic Clutch
Sinumerik 840d Control: Open Pc-Based Control System
Hanging Stationary Rotating Operator Panel
Teach Pendant – Teach Software
Network Connection Incl. Installation And Tele Service
Analog Modem For Tele Service
Electrical Configuration According To Ul508 A
Voltage Before Main Switch
Tropical Version Up To 110 F
Higher Laser Power (Price Increase Relative To Truflow 2000)
Truflow 5000

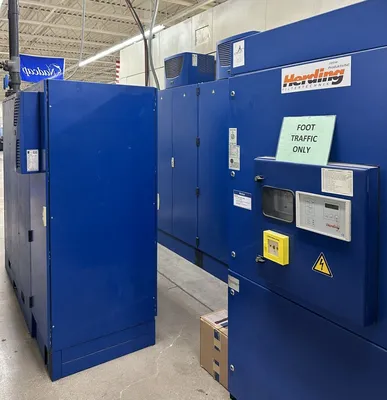

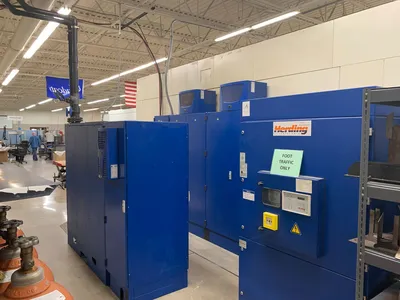

Chiller
Plate Heat Exchanger Instead Of Water/Air Chiller. Type: Klh P87/48 Tk 2.01 (Note:
Used Plate Heat Exchanger From Trumpf Application Lab)
Processes
Preparation For Laser Cutting And Welding (Weldline Basic)

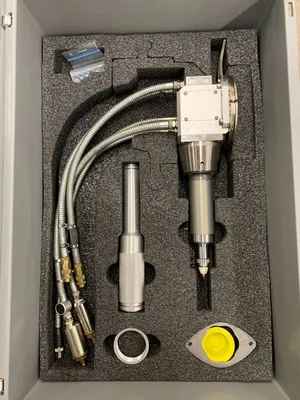

Cutting Optics

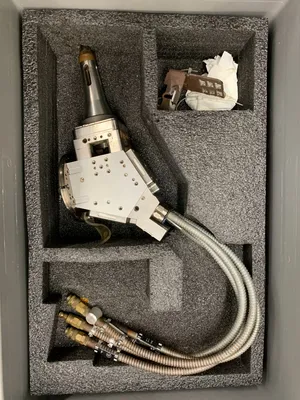

Dynamic Cutting Head F = 155 Mm
Modular Processing Optic For Welding
Modular Processing Optic Package, Water Cooled Nozzle (F = 230, 280 Or 330 Mm)
Work Station – Stationary Or Manual Moveable
2 Stationary Tables (2000 X 1500 Mm2)
Rotary Axis
Table Mounted Rotary Axis For Horizontal And Vertical Mount. Rotary Table Diameter
200 Mm
2 Base Bridges With Holes On Top For Table Mounted Rotary Axis
Dual Station Operation
Dual Station Partition Wall
