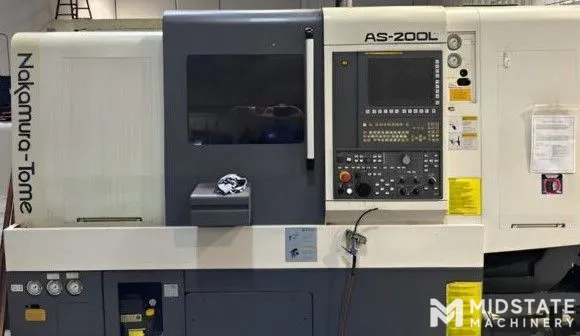

2016 Nakamura-Tome AS-200LMYS

Bar Capacity: 2.6″
Swing: 15.8″
Turning Diameter: 13.4″
Spindle Speed: 4,500 RPM
Spindle Nose: A2-6
Spindle Motor: 20 HP
Distance Between Centers: 22.5″
Turret Capacity: 12 Tool
Turret Indexing Positions: 24
Sub Spindle Speed: 6,000 RPM
Sub Spindle Motor: 10 HP
Distance between Spindle Noses: 31.5″
Sub Bar Capacity: 1.7″
X-Axis Slide Travel: 9″
X-Axis Rapid Feed: 945 in/min
Z-Axis Slide Travel: 23″
Z-Axis Rapid Feed: 1,418 in/min
Y-Axis Slide Travel: 1.6″ +/-
Y-Axis Rapid Feed: 236″
C-Axis Least Input Increment: 1E-3 Degrees
Driven Tool Power: 7.5 HP
Current Machining Time: 291 hours
Machine Weight: 11,023 lbs
