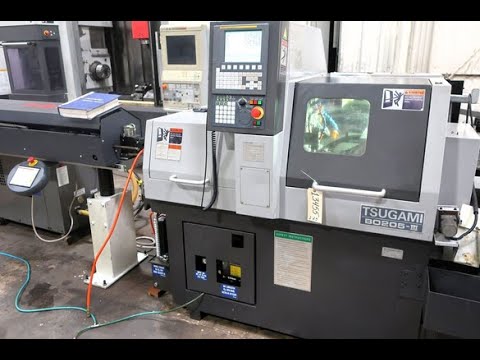

2015 Tsugami BO205III Sliding Headstock Swiss Type CNC Lathe

Working Barstock Diameter ø3 mm (.12 in.) to ø20 mm (.79 in.)
Max. Machining Length 170 mm (8.26 in.)(Rotary Guide Bushing)
45 mm (1.77 in.) (Chucker Mode)
Max. Main Spindle Drilling Diameter ø10 mm (.39 in.)
Max. Main Spindle Tapping Diameter M10
Max. Back Spindle Chucking Diameter ø20 mm (.79 in.)
Max. Back Spindle Drilling Diameter ø8 mm (.31 in.)
Max. Back Spindle Tapping Diameter M8
Max. Cross Drilling Diameter ø7 mm (.275 in.)/ER11and ø10 mm (.393 in)/ER16
Max. Cross Tapping Diameter M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter ø30 mm (1.18 in.)
Max. Back Live Drilling Diameter ø6 mm (.236 in.)
Max. Back Live Tapping Diameter M5 Main Spindle Speed 200 to 10,000 min-1
Back Spindle Speed 200 to 12,000 min-1
Rotary Guide Bushing Speed 200 to 10,000 min-1: Direct-drive rotary guide bushing
Live Tool Speed 200 to 8,000 min-1
Total Tool Storage Capacity 21
Tool Size .5 in. x .5 in. square, 20 mm round
Rapid Traverse Rate 32 m/min (105 ft/min) [(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)
Controlled Axes (linear axes) 5-Axis
Main Spindle 3/5 Hp (2.2/3.7 kW)
Back Spindle 2/3 Hp (1.5/2.2kW)
Axis 0.7 Hp (0.5 kW) - X1,X2,Y1,Z1,Z2
Cross Dill 1 Hp (0.75 kW)
Coolant Pump 0.4 Hp (0.25 kW)
Lubricating Oil Pump 3 W
Power Source Requirement 12 kVA
Compressed Air Requirement 0.4 Mpa or above
Air Discharge Rate 50 NL/min
Coolant Tank Capacity 180
L Width x Depth x Height 1,655 x 1,135 x 1,700mm 65.16” x 44.29” x 66.93”
Weight 2,000 kg (4,409.25 lbs.)
