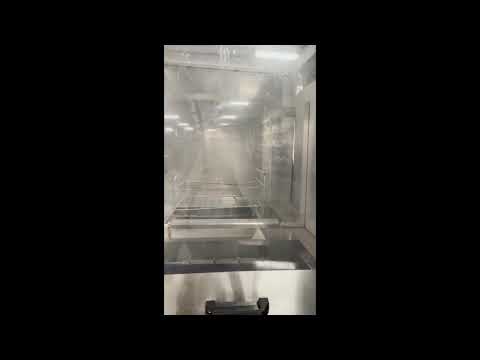

2011 Miraclean SonicCell Cube VI
Have one to sell?
ConditionUsed
1 available

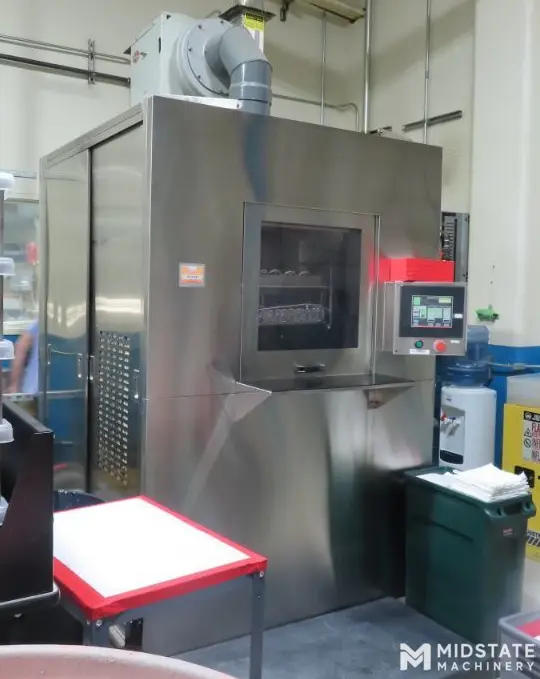

Miraclean SonicCell Cube Precision Ultrasonic Parts Cleaner, New 2011
Fully automatic & small footprint. System wash rinse and dries in a single station.
Excellent for infrequent parts loads that require precision cleaning
General Specifications: Please pay attention to details below, read carefully.
Main Voltage: 480 VAC / 3 Phase
Full Load Amps: 20 Amps
Frequency: 60 Hertz
Circuit Breaker Amperage Rating: 25 Amps
Short Circuit Rating: 5 KA
Motor Power: .5 HP
Control Voltage: 120 VAC / 24 VDC
Clean, Dry, Oil Free Compressed Air: 75 Peak SCFM @ 80 PSI, 23 Ave. SCFM
Vacuum Exhaust: 400 CFM @ 2" (wg) SP
Deionized Water: 2-3 GPM Flow Rate @ 40-80 PSI
Clean & Rinse Tank Temp: 170 Degrees F
Drain: Clean and Rinse Tanks
Clean Liquid Filter (X-110-A): 30" 10 Micron Poly Core. Poly Wound
#1. Cleaning Station
Work area: 14”DOT X 23”FB X 14”D (31 GALLON TANK)
Overflow weir - one sided, saw toothed Drain
Insulated Electric Heat: with controller to heat from ambient to 160 degrees F
in 3 hours
Ultrasonics:
• 2000W, 25kHz, sidemounted high efficiency immersible transducer
arrays with dedicated solid state generators
• 2000W, 40 kHz, bottommounted Agitation
Filter/Sparger System: stainless steel sparger (skims surface to separate overflow
weir), single chamber cartridge filter, air diaphragm pump
Spray over Immersion: dual parallel sidemounted spray headers to provide spray over
immersion
#2 - Hot Rinse Station with Spray over Immersion
Work area: 14”DOT X 23”FB X 14”D (24.3 GALLON TANK)
Overflow weir - one sided, saw toothed Drain
Insulated Electric Heat: with controller to heat from ambient to 160 degrees F
in 3 hours
Agitation Spray over Immersion: dual parallel sidemounted spray headers
to provide spray over immersion.
Customer supplied water
Air Blow off: 2 side mounted air knives above the spray off.
Customer supplied air
Ultrasonics: 2000W, 40kHz bottom mounted
PLC: Allen Bradley microprocessor with touch screen operation.
Instant Hot Water Heater: 36 kW- * Sandvik to Plumb and Wire Hot Water Heater
Note: Pump Module to Drain (this unit is not needed if buyer has a drain in close
proximately to the back of the system. It is available if needed, requires air for
diaphram pump & level control
(* Pump to Drain Module is approx 24: from the back of the machine but can be
plumbed to be further away or change of direction to take up less floor space.
Shipping dimensions:
Machine: 56" x 79"x 87" 3000 lbs ??
Pallet w/tray/filter/collector: 49" x 55" x 46" 800 lbs
Table: 36" x 30" x 36" 150 lbs
Vertical Agitation; Ultrasonic Rinse; DI Spray; Air Knife Rinse Cycle; Clean Sparger Pump; Clean Filter Spray Over Immersion; Ambient Air Blow Post Rinse
25 KHZ Side Clean Ultrasonics; 40 KHZ Bottom Ultrasonics Rinse
Plumbing: all external plumbing is the buyers responsibility.
OSHA Safety: Any OSHA required safety mechanisms may or may not be on this unit and bringing the unit up to OSHA Safety Standards is 100% the responsibility of the buyer.
DOM: 10 / 2011
Electrics: 480 Volt, 3 Phase, 60 Cycle
Largest Motor: .5 HP / CB Disconnect: 25 Amps / FLA: 20 Amps
NOTE: Not every facility uses a stand-a-lone Steam Exhaust Blower so, it is not included unless the Miraclean is sold a full-price; any negotiations on price will not include this item and is available separately: $850.00 (subject to availability and prior sale)
This unit requires user to either air-dry or acquire a dryer (blower-type, oven-type, spin-dryer)
