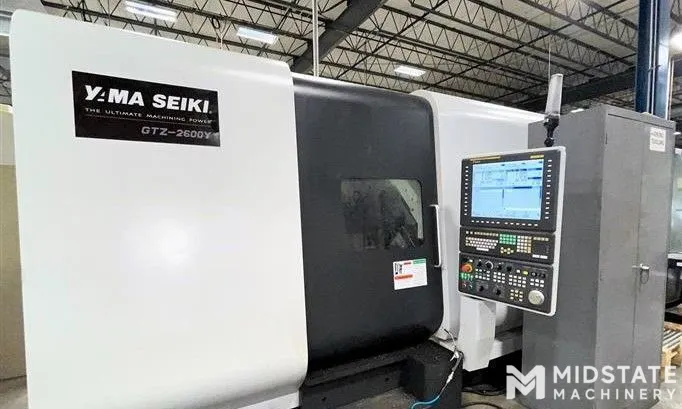

Yama Seiki GTZ-2600Y CNC Turning Center, New in 2017
Have one to sell?
ConditionUsed
1 available
Fanuc 31iB GLINC 350 CNC Control
8" Left & Right 3-Jaw Hydraulic Chucks
ATS S26 Collet Chuck-Main Spindle
ATS S26 Collet Chuck-Sub Spindle
16 Station Upper Turret with Live Tools and Y-Axis
16 Station Lower Turret with Live Tools
All Cool R58 1,000 PSI High Pressure Coolant System
Maximum Swing Diameter
10.62"
Max. Turning Diameter
9.8"
Max. Turning Length
23.3"
Hole Through Draw Tube
2.57"
Hole Through Spindle
2.99"
Spindle Bearing Diameter
4.72"
Spindle Nose
A2-6
Spindle Speeds
40-4000 RPM
Live Tooling Speeds
6,000 RPM
Spindle Motor
20 HP / 15 HP
Turret Positions
16
X1 Travel
7.67"
X2 Travel
8.26"
Z1 Travel
24.39"
Z2 Travel
24.39"
Maximum ZS Travel
27.16"
Y-Axis Travel
3.93"=+/-1.96"
Y-Axis Rapids
393.69 IPM
Y-Axis Feed Rates
1-189 IPM
X/Z Axis Rapids
945 IPM
X/Z Axis Feed Rates
1-1,890 IPM
Approximate Machine Weight
19,800 Lbs.
Fanuc 31iB GLINC 350 CNC Control
8" Left & Right 3-Jaw Hydraulic Chucks
ATS S26 Collet Chuck-Main Spindle
ATS S26 Collet Chuck-Sub Spindle
16 Station Upper Turret with Live Tools and Y-Axis
16 Station Lower Turret with Live Tools
30 Degree Slant Bed
All Cool R58 1,000 PSI High Pressure Coolant System
Renishaw Tool Pre-Setter
Coolant Thru Sub-Spindle
Parts Catcher
Chip Conveyor
Spare Parts
Bar Feed Interface
Loaded with Tooling (Includes BMT 55 Live Tools, Approx. 10-12)
HOURS:
8,470 Power on Hours
2,409 Run Hours
1,261 Cutting Hours
