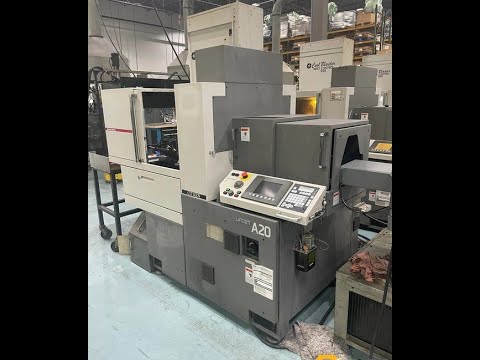

2012 Citizen A20II CNC Swiss Lathe
Have one to sell?
ConditionUsed
1 available
2012 Citizen A20VII CNC Swiss Lathe for sale. 0.75" (20mm) Capacity with 6 Turning Tools, 4 Rotary Tools, Full C-Axis, Sub-Spindle & Independent Back Working. Fanuc 32i CNC Control, Mist Collector, High Pressure Coolant System, Magazine Bar Feed.
Machine Diameter: 3/4" (20 mm)
Machine Length: 6 1/2" (165 mm)
Front Drilling Diameter: 1/4" (10 mm)
Front Tapping Diameter: M8
Spindle Hole: 1 1/4" (31 mm)
Main Spindle Speed: 8,000 RPM
Live Tool RPM: 6,000 RPM
Chuck Dia (Back Spindle): 3/4" (20 mm)
Back Spindle Speed: 8,000 RPM
# of Tools Mounted: 21
Turning Tools on the Gang Post: 5
Rotary Tools for Cross Machining: 4
Tools for Front Drilling: 4
Tools for Back Drilling: 8
Machine Dimensions: 8.5' x 5.8' x 6'
Machine Weight: 5,600 lbs
Fanuc 32i CNC Control
Cool Blaster 850 Mist Collector
Cool Blaster CB510 High Pressure Coolant System
Edge Technologies C-320 Magazine Bar Feed (2011, s/n:C4201151217)
Lubrication System
(7) Tools
Ports
Hours:
Power On: 53,135
Run Time: 26,320
Cutting Time: 13,214
Machine has been fully service and packed prior to release
