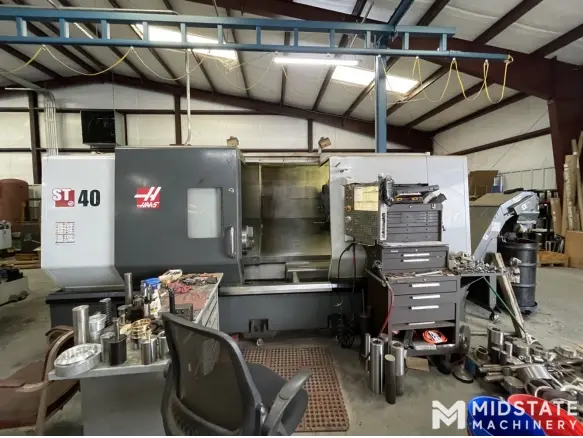

Haas ST-40 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Haas ST-40 CNC Turning Center
New 2012
Chuck Size 15.0 in
Max Part Swing 3 5.5 in
Max Cutting Length (varies with workholding) 44.0 in
Bar Capacity 4.00 in
TRAVELS
X Axis 20.00 in
Z Axis 44.00 in
FEED RATES
Rapids on X 710 ipm
Rapids on Z 710 ipm
AXIS MOTORS
Max Thrust X 5500 lbf
Max Thrust Z 9000 lbf
SPINDLE
Spindle Nose A2-8
Drive System 2-Speed Gearbox
Max Rating 40.0 hp
Max Speed 2400 rpm
Max Torque 1400.0 ft-lbf @ 150 rpm
Spindle Bore ø 4.62 in
Haas cnc control
Tool PreSetter – Needs new sensor
Chip Conveyor
15” Hydraulic Chuck
Two Speed Gearbox
Tailstock
300 psi Coolant Pressure
High intensity Lighting (currently not working)
