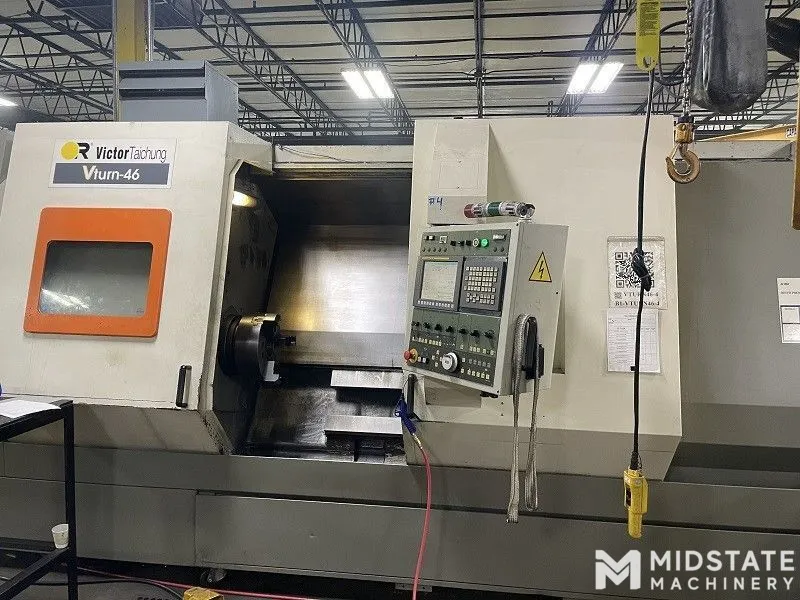

Victor Vturn 46 CNC Turning Center
Have one to sell?
ConditionUsed
1 available
Victor Vturn 46 CNC Turning Center
New 2012
Swing over bed: 820 mm/32.28”
Std. part size: 520 mm/20.472”
Max. part size: 730 mm/28.74”
Distance between centers: 1,750 mm/68.89”
Max. machined part length: 1,650 mm/64.96”
Spindle bore: 123 mm/4.84”
Max. bar capacity: 115 mm/4.52”
Spindle: A2-11
Spindle rpm: 1,500
Spindle HP: 68.4
Rapids: 12m/min
Turret stations: 10
Turret index time: 1 sec
Turret tool size: 1.25”
Max. boring bar diameter: 60 mm/2.36”
Weight: 12,800kg/28,160 lbs.
Dimensions: 244” w/o chip conveyor
Wired: 220v/3ph/50-60cy
KVA rating: 63.6
Kw: 57.2
Fanuc Oi-TF Plus with 10.4” screen
15” 3-jaw chuck (machine will accept a 18”, 21”, or 24” chuck, but there could be issues with the turret travel interfering as chuck size increases)
Chip conveyor
Tool holders
Manuals
