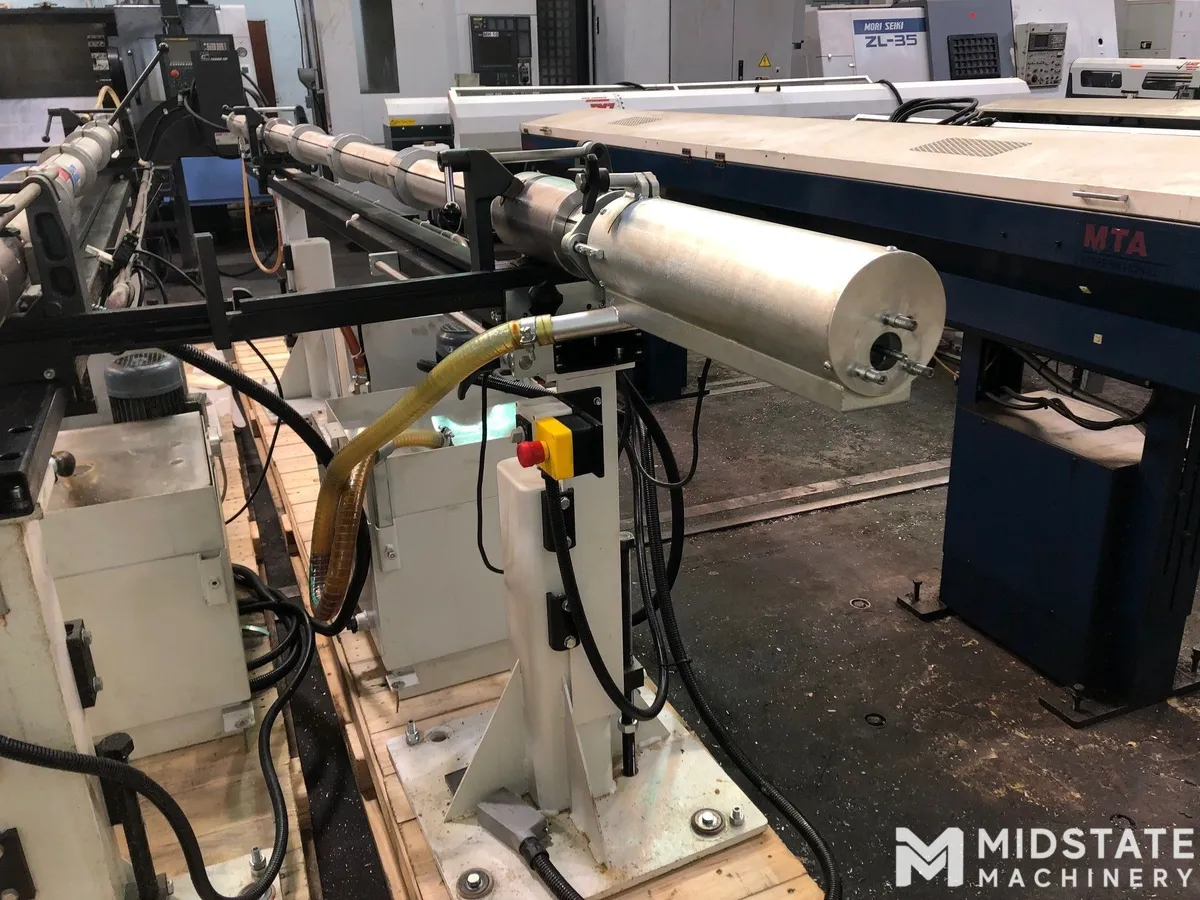

2008 LNS 3.20-HS-4.8 SUPER HYDROBAR BARFEED

General Specifications as Per Brochure:
Specifications:
Consists of three (3) guide tubes with internal diameters of:
.866" for 1/2" to 13/16" diameter barstock
.551" for 1/4" to 1/2" diameter barstock
.315" for 1/16" to 1/4" diameter barstock

Equipped with:
Each guide tube contains its own push bar and piston assembly, and oil
recuperator
Front support stand with a 40" long support arm for loading barstock
Z-axis adjustable 23" retract with safety switch
self-contained hydraulic system and reservoir:
Manual and auomatic controls for hydraulic system on, off, manual
advancement and retraction of piston and automatic operation in conjunction
with the machine control

This is a 24V unit

Barfeed: 200" x 49" x 42" 2,000 lbs
Hydraulic Tank: 37" x 22" x 28" 300 lbs
