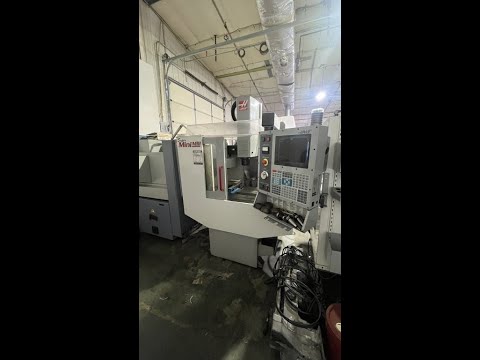

2002 HAAS SUPER MINI MILL CNC Vertical Milling Center
Have one to sell?
ConditionUsed
1 available
General Specifications:
Table Size: 36″ X 12″
Max Load on Table: 500 lbs.
X-Axis Travel: 16″
Y-Axis Travel: 14″
Z-Axis Travel: 10″
Rapid Feedrate (All Axes): 1200 IPM
Cutting Feedrate: 833 IPM
Spindle Speed: 10,000 RPM
Spindle Motor: 15 HP
Spindle Taper: CT 40
Tool Capacity: 10 ATC
Tool Diameter: 3.5"
Tool Weight: 12 lb
Spindle Nose to Table Range: 4" - 14″
Thrust (All Axes): 2000 lbf
Machine Dimensions: 90" x 64" x 100
Machine Weight: 4,000 lbs.
Haas CNC Control
Vise
All Available Tooling & Manuals
