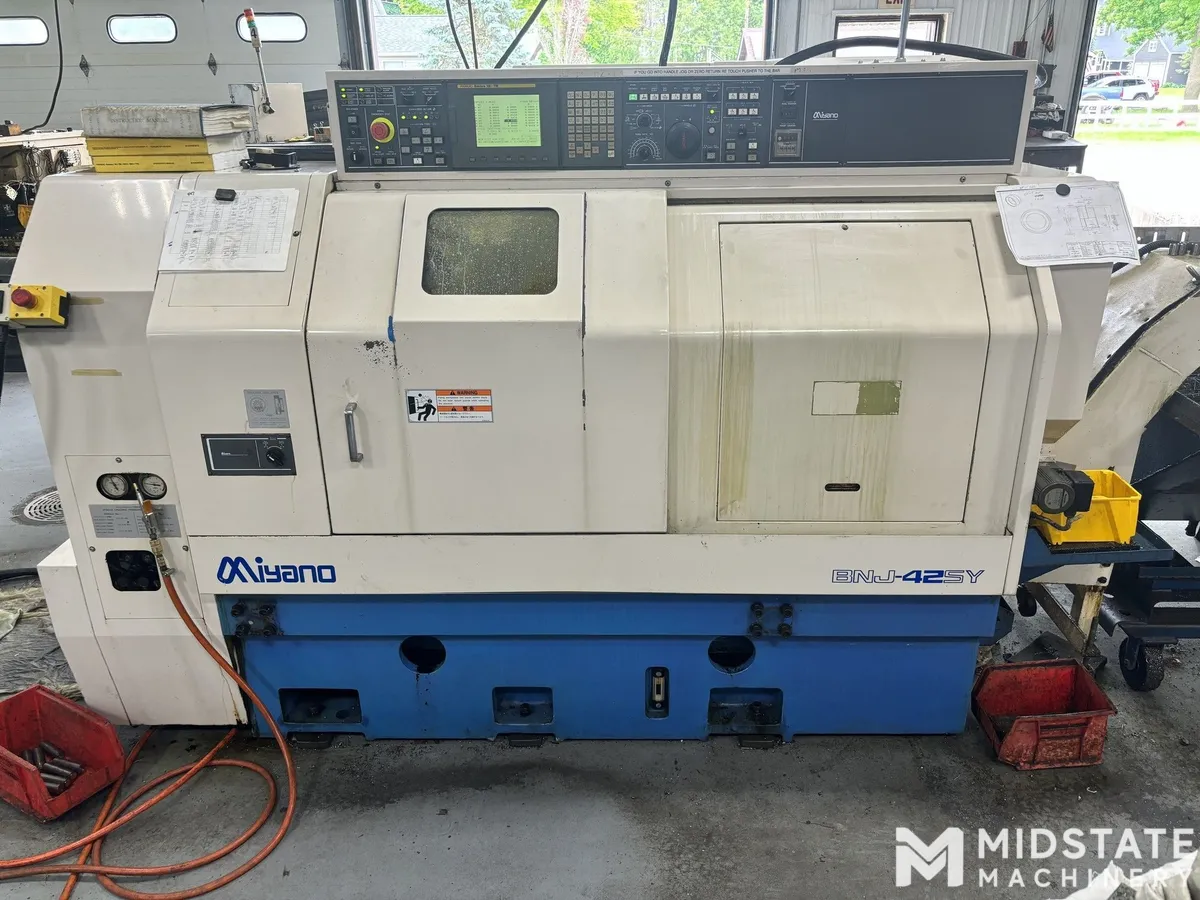

Miyano BNJ-42SY CNC Turning Center, New in 2007

General Specifications (L - Left Spindle / R - Right Spindle):
Power Chuck & Size (L/R): 5" / 4"
Bar Capacity: 1.65"
Type of Collet Chuck: Stationary
Turning Length (L/R): 4"/ 3.1"
Spindle Motor (L/R): 14/6.7 HP
Spindle Speed (L/R): 5,000 RPM

Axis Travels:
X1-Axis Travel: 6.10"
X2-Axis Travel: 2.7"
Y1-Axis Travel: +1.18"
Z1-Axis Travel: 9.8"
Z2-Axis Travel: 20.2"

Main Turret
Positions: 12
Indexing Time: 0.2 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo

Back Working Turret
Positions: 6
Turret/Indexing: 0.25 Seconds Per Station
Turret Indexing Method: Curvic C & AC Servo

Revolving Tools (Main Turret)
Number of Revolving Stations: 6
Tool Spindle Speed Range: 4,000 RPM
Tool Spindle Driving Motor: AC Servo 3.3 HP
Machining Capacity Drill/Tap: 0.5" / M8 x 1.25

Machine Dimensions: 106" x 58" x 67"
Machine Weight: 10,140 lbs
