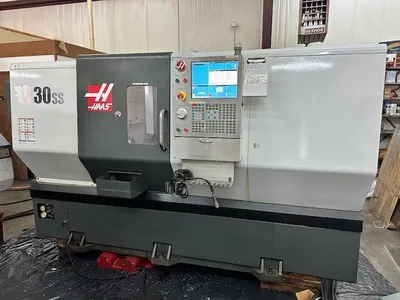

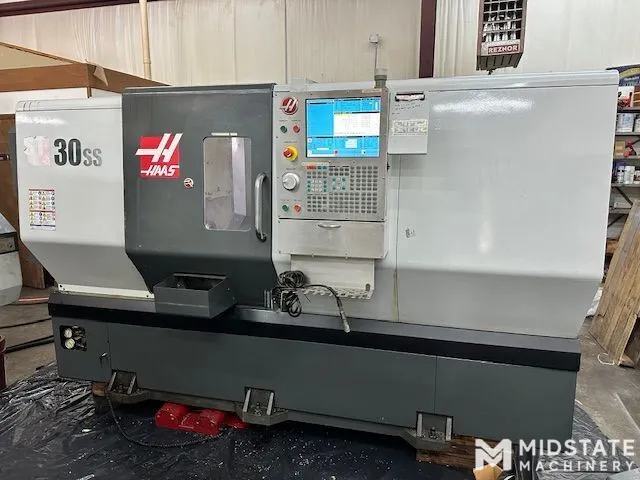

HAAS ST-30SS CNC Lathe
Have one to sell?
ConditionUsed
1 available
HAAS ST-30SS CNC Lathe
New: 2014
Live Tooling
Chuck Size 10"
Max Diameter Bar Capacity 3"
Max Swing Over Bed / Carriage 31.75" / 20.75"
Max Machining Length 23"
Spindle Motor 30 HP
Spindle Speed 4500 RPM
Spindle Nose A2-6
Spindle Bore 3.5"
Tools 24
Milling Speed 6000 RPM
Rapid Traverse Rates (X & Y / Z) 472 / 1200 IPM
X-Axis Travel 12.5"
Z-Axis Travel 23"
C-Axis Index .001 Degrees
Machine Dimensions (L x W x H) 171" x 99" x 98"
Machine Weight 14,000 lbs.
Max Turning Diameter 16"
Spindle Torque 275 ft. lbs.
HAAS CNC Control
• 12" Color LCD
• C-Axis Live Tooling Capability
• 12" LMC PC-12-93-02 Hydraulic Chuck
• Royal S30 Collet Chuck
• Chip Conveyor (Hinge Type Side Exit)
• Auto Parts Catcher
• Tool Presetter
• Fully Programmable Hydraulic Tailstock
• Hybrid Bolt-On Turret
• High Pressure Coolant (300 psi)
• Barfeed Interface
• Rigid Tapping
• Spindle Orientation
• Early Detection Power Failure
• Set of Spindle Liners
• (2) Sets of Hard Jaws
• Approx. (40) Sets of Machined Soft Jaws
• Approx. (14) ER32 Collets
• (6) Turning Holders (0.75")
• (3) Facing Holders
• (8) Boring Bar Holders
• (1) Live Center
