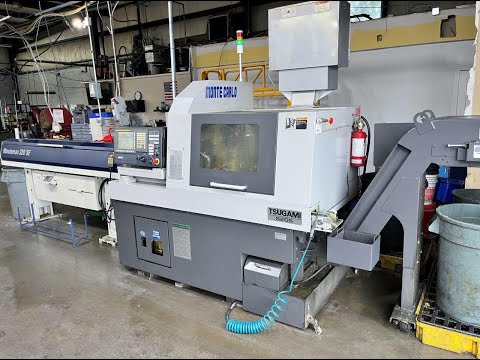

TSUGAMI S205 Swiss Type Automatic Screw Machine
Have one to sell?
ConditionUsed
1 available
FANUC 32iMB CONTROL, EDGE MINUTEMAN 320 BAR FEEDER,
MP SYSTEMS HIGH-PRESSURE COOLANT, MIST COLLECTOR,
FIRETRACE, CHIP CONVEYOR, CHUCKER KIT,
ONLY 6,000 CUTTING HOURS
IN PLANT, UNDER POWER & AVAILABLE IMMEDIATELY
BAR CAPACITY 20 mm
MAX MACHINING LENGTH 8.2"
MAIN SPINDLE INDEXING FULL C-AXIS
MAIN SPINDLE SPEED 10,000 RPM
BACK SPINDLE INDEXING FULL C-AXIS
BACK SPINDLE SPEED 10,000 RPM
TOTAL TOOL CAPACITY (POSITIONS) 24
TOTAL LIVE TOOL CAPACITY (POSITIONS) 5
LIVE TOOL SPEEDS 8,000 RPM
CONTROLLABLE AXES 5
FANUC 32iMB CONTROL
EDGE TECHNOLOGIES MINUTEMAN 320 SE MAGAZINE BAR FEEDER (8’)
CHUCKER KIT OPTION (ALLOWS MACHINE TO SWITCH FROM GUIDE BUSHING TO NON-GUIDE BUSHING)
MP SYSTEMS V2 SWISS HIGH-PRESSURE COOLANT SYSTEM (2,000 PSI)
FIRETRACE FIRE SUPPRESSION
TRI-MIST MIST COLLECTOR
PARTS CATCHER
PARTS CONVEYOR
CHIP CONVEYOR
SUB SPINDLE AIR BLAST
FULL C-AXIS MAIN & SUB SPINDLE
SIMULTANEOUS MACHINING OF MAIN & SUB SPINDLE
(1) ADJUSTABLE FRONT MILL FACE UNIT (WITH (2) MAIN LIVE & (2) SUB LIVE STATIONS)
13MM PUSHER & CHANNELS
20MM PUSHER & CHANNELS
** AS OF AUGUST 2024, CUTTING TIME – 6,112 HOURS
** MACHINE CUT PRIMARILY ALUMINUM & BRASS
** FULL REPLACEMENT COST, AS EQUIPPED - $225,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
** INSTALLED IN CUSTOMER’S SHOP IN 2021, WAS A DEMO MACHINE PRIOR TO THEN
