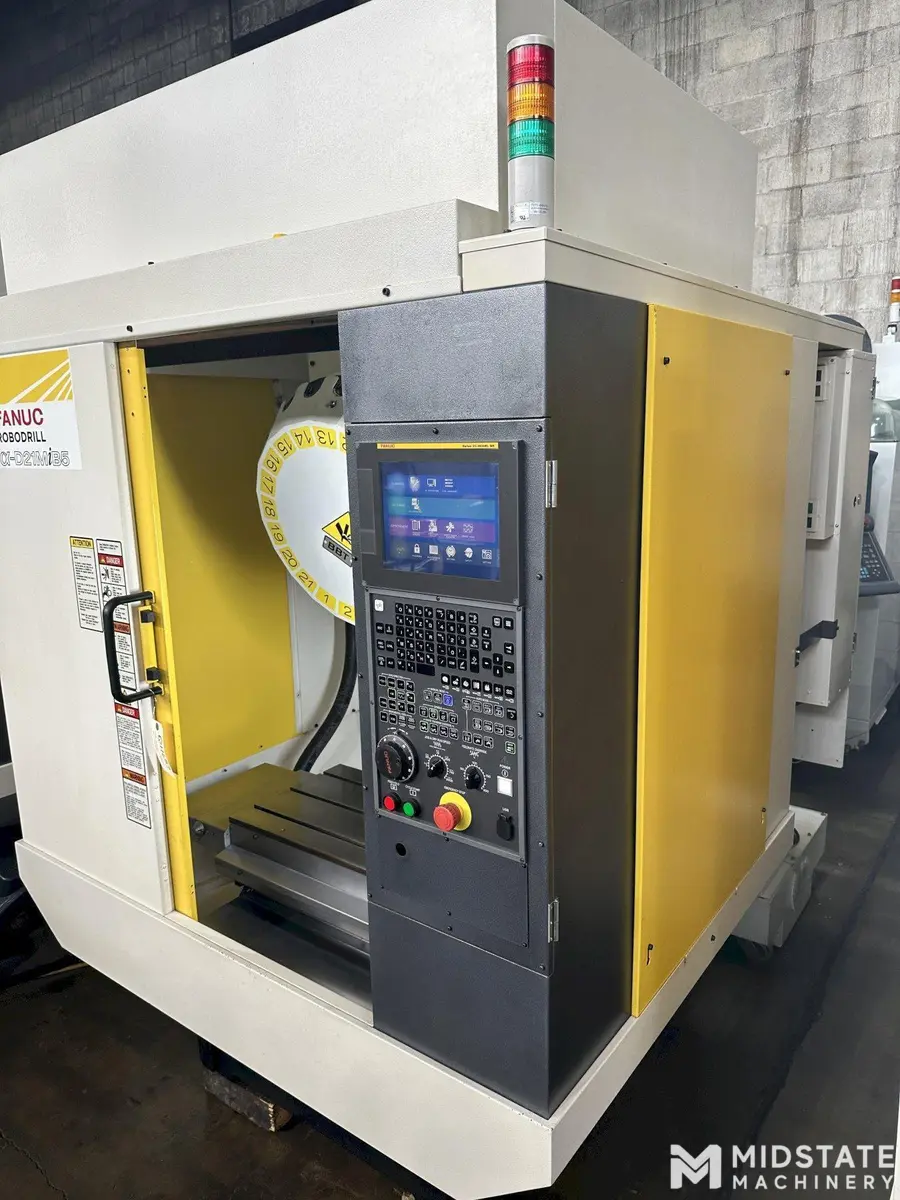

2017 FANUC ROBODRILL A-D21MIB5 CNC VERTICAL MACHINING CENTER

CNC Control: yes
Type of CNC Control: Fanuc Series 31i-B5 CNC Control
# Axis: 3
Table Size: 25.6" x 15.75"
Table Load Capacity: 661 LBS
X-Axis (Longitudinal Travel): 19.7"
Y-Axis (Cross Travel): 15.7"
Z-Axis (Vertical Travel): 12.9"
Max/Min Clearance Table Top to Spindle Nose: 22.8" / 9.84"
Feed Rates, All Axes: 1,181 IPM
Rapid Traverse Rate, All Axes: 2,125 IPM
Max Spindle RPM: 24,000 RPM
Spindle Taper: BT30
Coolant Thru Spindle: yes
Automatic Tool Changer Capacity (ATC): 21
Tool Change Time: 1.6 Sec
Electrics: 220/3/60
Approximate Machine Dimensions: 63" x 63"
Approximate Machine Height: 90"
Approximate Machine Weight: 4,850 LBS
