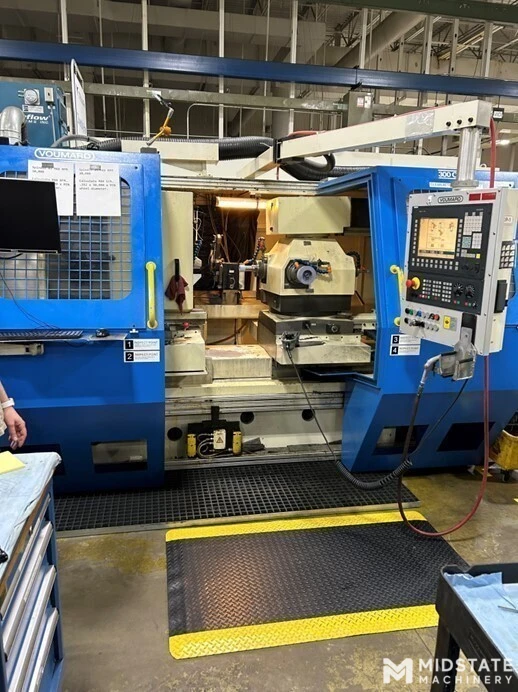

Voumard 300 CNC Universal ID/OD CNC Grinder
Have one to sell?
ConditionUsed
1 available
Voumard 300 CNC Universal ID/OD CNC Grinder
New: 2003
O.D. Grinding (max)(inch): 21.653
I.D. Grinding (min): 0.039
I.D. Grinding (max, inch): 19.685
O.A. Grinding L. (inch): 29.527
Workpiece weight (max, lbs): 1,100
Longitudinal Travel (inch): 39.3
Cross Travel (inch): 11.81
Machine Weight (lbs): 17,600
O.D. Grinding (max)(inch): 21.653
Full Enclosures
Siemens CNC Control
MORE ABOUT THIS MACHINE:
The Voumard 300 CNC Large Capacity Production Center Grinder Grinding of short workpieces in a chuck or centerless system, long shafts in a steady rest. 4-position NC indexing wheel spindle turret enabling internal or external grinding operations. Manual or automatic loading. Optionally - U Axis work head cross slide to increase the OD grinding capacity B Axis work head swiveling for taper grinding. C Axis work head spindle rotation control for cam or thread grinding D Axis complementary axis dresser point rotation control.
https://www.hardinge.com/wp-content/uploads/Voumard%20300%20Brochure.pdf
