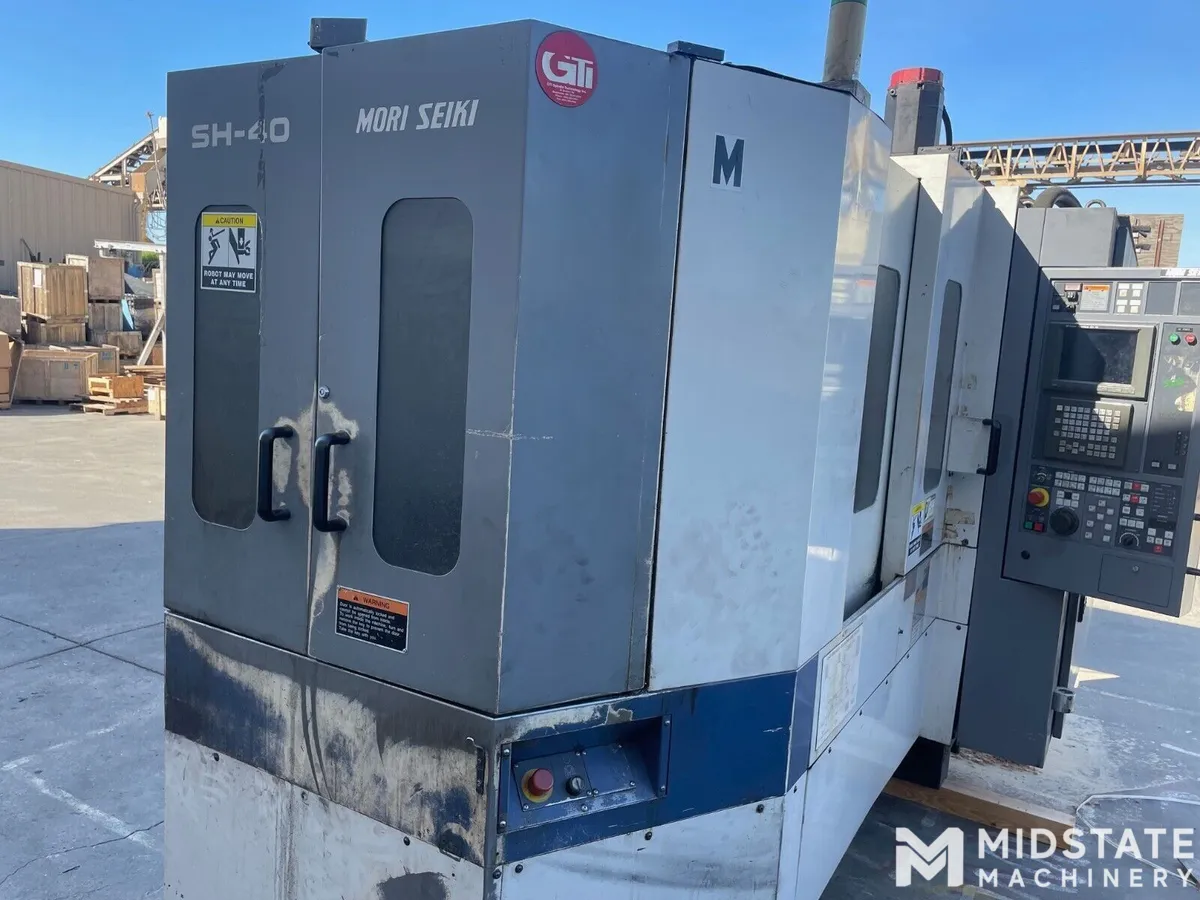

Mori Seiki SH-40 CNC Horizontal Machining Center

X-axis travel (Longitudinal movement of column): 560 (22.05)
Y-axis travel (Vertical movement of spindle head): 510 (20.08)
Z-axis travel (Cross movement of table): 510 (20.08)
Distance from table surface to spindle center: 50-560 (1.97-22.05)
Distance from table center to spindle gage plane:100-610 (3.94-24.02)

Table
Table working surface:400 x 400 (15.75 x 15.75)
Maximum workpiece swing diameter: 610 (24.01) dia.
Table loading capacity kg (lb.):
APC 5 sec.: 300 (660)
APC 7 sec.: 500 (1100)

Maximum workpiece height: 650 (25.59)
Table surface configuration: 24-M16 P = 80
Minimum table indexing angle°: 1 [Rotary table type: 0.001]

Spindle
Spindle speed range min-1: 12000
Number of spindle speed ranges: 1
Maximum spindle torque: N • m {kgf • m} (ft • lbf) 167 {17.0} (122.96)
Type of spindle taper hole: 7/24 taper No. 40
Spindle bearing inner diameter: Front: 70 (2.75)
Rear: 55

Feedrate
Rapid traverse rate mm/min (ipm): 32000 (1259.84)
Feedrate mm/min (ipm): 1-24000 (0.039-944.88)
Jog feedrate mm/min (ipm): 0-1260 (0-50) <15 steps>

ATC
MAS BT-40 tool shank

Spindle HP: 24.79 (30 KW) 30 Min. duty cycle

Machine height: 2517 (99.09)
Floor space: 2671 x 3837 (105.16 x 151.06)
Mass of machine kg (lb.): 8700 (19140)
